23. See Figure 3-34. Connect auto-enrichener plug.
NOTE
Install entire air cleaner and carburetor as an assembly. See
4.3 AIR CLEANER.
24. See Figure 3-35. Connect crankcase breather hose to
three-way connector.
25. See Figure 3-36. Install hose clamp.
26. See Figure 3-37. Install and tighten screws on both air
cleaner brackets.
a. Right bracket to air cleaner, 36-60 in-lbs (4.1-6.8
Nm).
b. Left bracket to crankcases, 120-144 in-lbs (13.6-
16.3 Nm).
c. Install screw on air cleaner cover.

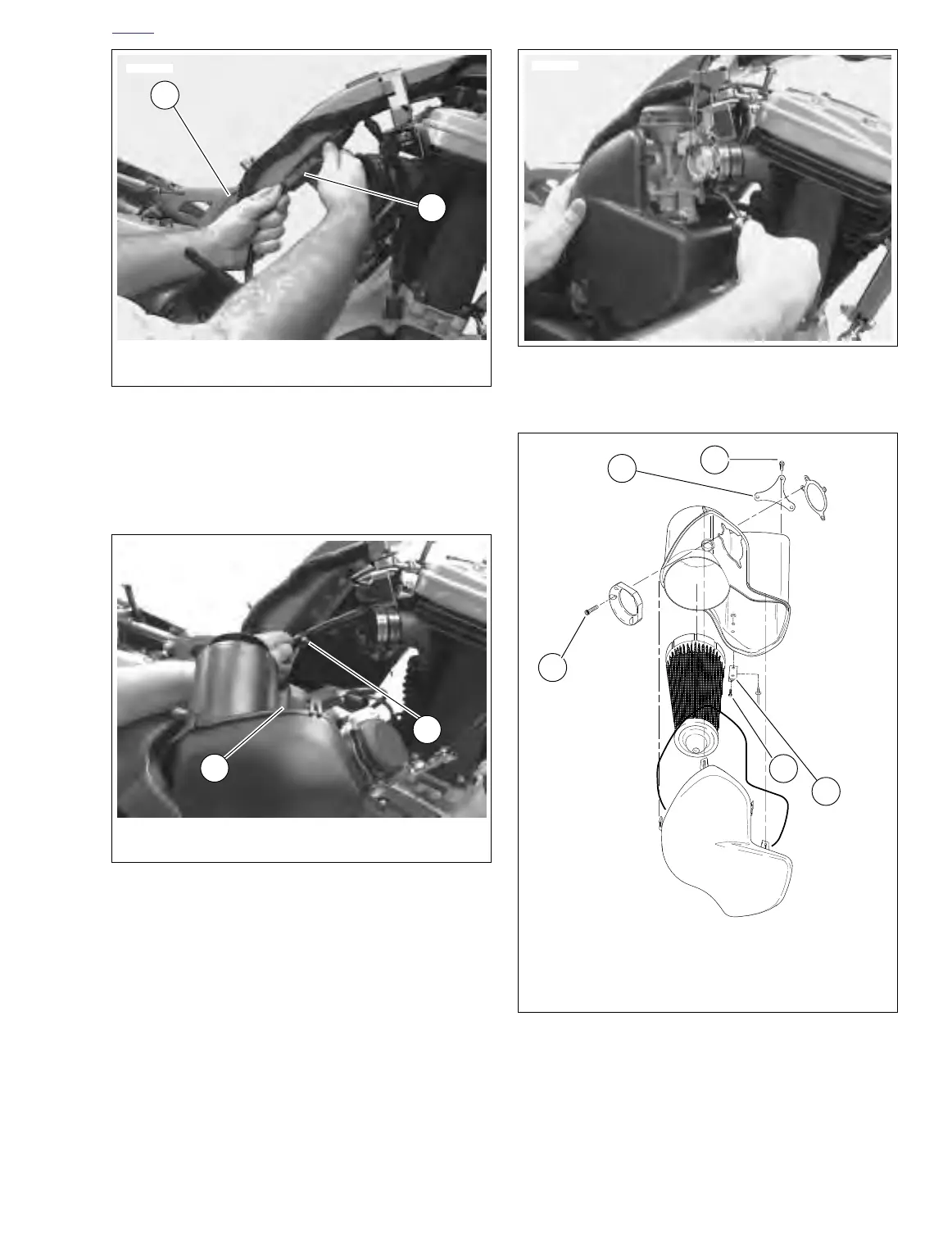

Figure 3-34. Auto Enrichener Plug
Figure 3-35. Crankcase Breather Hose
1. Auto-enrichener plug
2. Frame
2
1
7631
7649
1. Breather hose
2. Three-way connector
1
2
Figure 3-36. Hose Clamp
Figure 3-37. Air Cleaner Assembly
7648
1. Screw
2. Bracket (left front)
3. Bracket (right rear)
4. Bracket screws
