32. See Figure 3-41. Install front isolator mounting bolt,
spacer snubber and new nut.
33. Tighten front isolator mounting bolt to 63-70 ft-lbs (86-95
Nm).
34. See Figure 3-42. Install crankcase breather hose and
crankcase breather into rocker box grommet.
35. Install horn. See 7.22 HORN.
36. Remove jack from under the motor.
37. Install muffler. See 2.20 EXHAUST SYSTEM.
38. Install fuel tank. See 4.2 FUEL TANK COVER/FUEL
TANK.
39. Install new oil filter, engine oil and primary chaincase
fluid as necessary.
40. See Figure 3-43. Install right side rider footpeg bracket
assembly. See 2.21 FOOTPEGS AND FOOTPEG SUP-
PORT BRACKETS.
11WARNING1WARNING
Always connect positive battery cable first. If the positive
cable should contact ground with the negative cable
installed, the resulting sparks may cause a battery explo-
sion which could result in death or serious injury.
41. Connect both battery cables, positive cable first. See
7.16 BATTERY.
11WARNING1WARNING
Pull up on seat to verify that it is properly secured, front
and rear. A loose seat may shift during vehicle operation
and startle the rider, possibly causing loss of vehicle
control resulting in death or serious injury.
42. Install seat. See 2.28 SEAT.

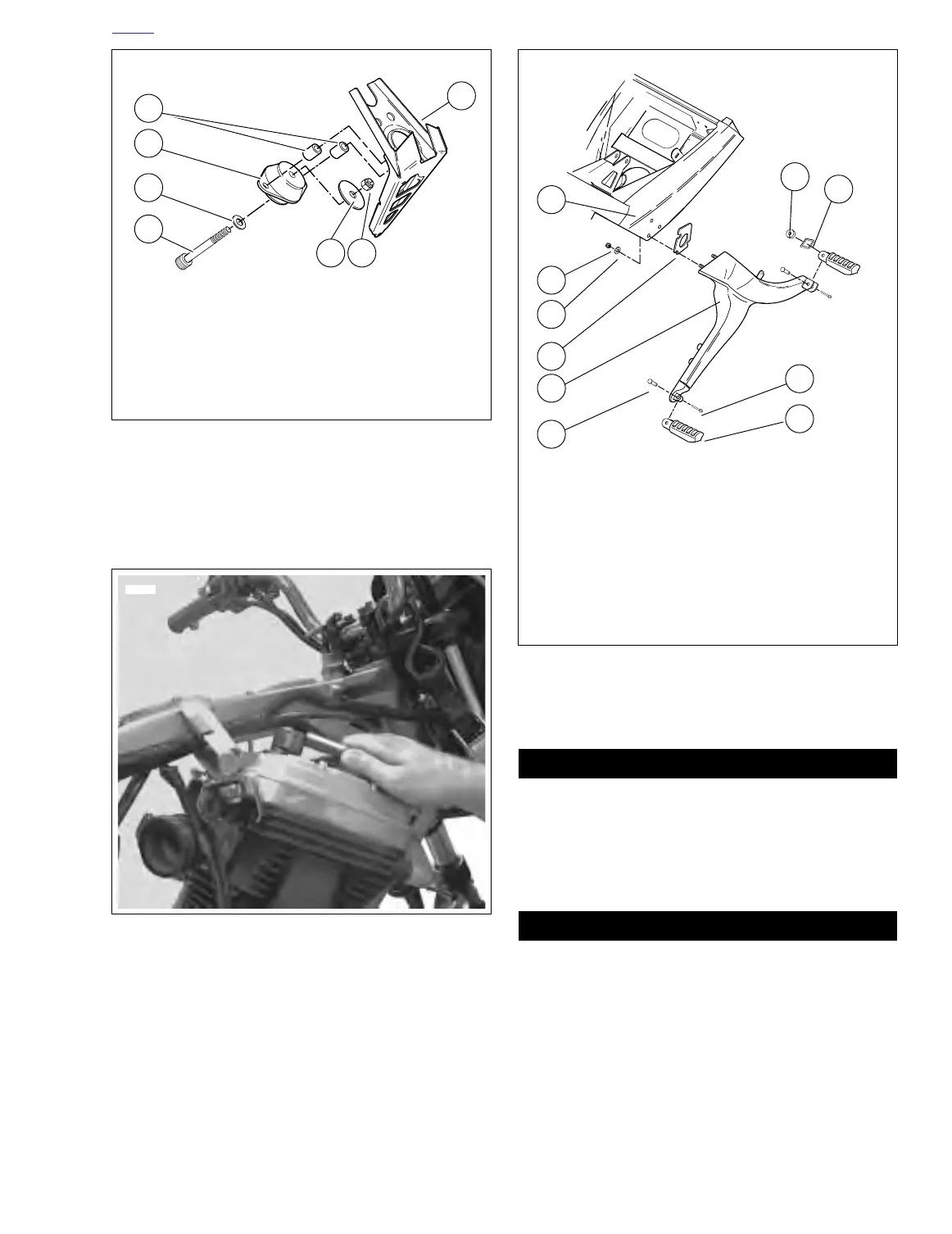

Figure 3-41. Front Isolator Mount
Figure 3-42. Install Crankcase Breather Hose
1. Frame
2. Locknut
3. Snubber
4. Bolt
5. Spacer
6. Front isolator
7. Standoff
1
a0162x6x
23
4
5
6
7
7629
Figure 3-43. Footpeg Bracket Assembly
1. Frame
2. Locknut
3. Washer
4. Spacer
5. Footrest support bracket
6. Clevis pin
7. Footpeg
8. Cotter pin
9. Index plate
10. Spacer
a0016x3x
1
2
3
4
5
6
8
7
10
9
