2003 Buell P3: Engine 3-41
HOME
8. Remove the piston pin circlip as follows:
a. See Figure 3-71. Insert the PISTON PIN CIRCLIP
REMOVER/INSTALLER (HD-42317) into the piston
pin bore until claw on tool is positioned in slot of pis-
ton (directly under circlip).
b. Squeeze the handles of the tool together and pull
from bore. In the event that the circlip should fly out,
hold a shop towel over the bore during removal.
Remove circlip from claw and discard.
NOTE
It is not necessary to remove both
piston pin circlips during
piston removal. Leave the second circlip in the pin bore.
9. See Figure 3-72. The arrow at the top of pistons must
always point toward the front of the engine.
Handle the piston with extreme care. The alloy used in
these pistons is very hard. Any scratches, gouges or
other marks in the piston could score the cylinder during
engine operation and cause engine damage.
10. Spread piston rings outward until they clear grooves in
piston and lift off.

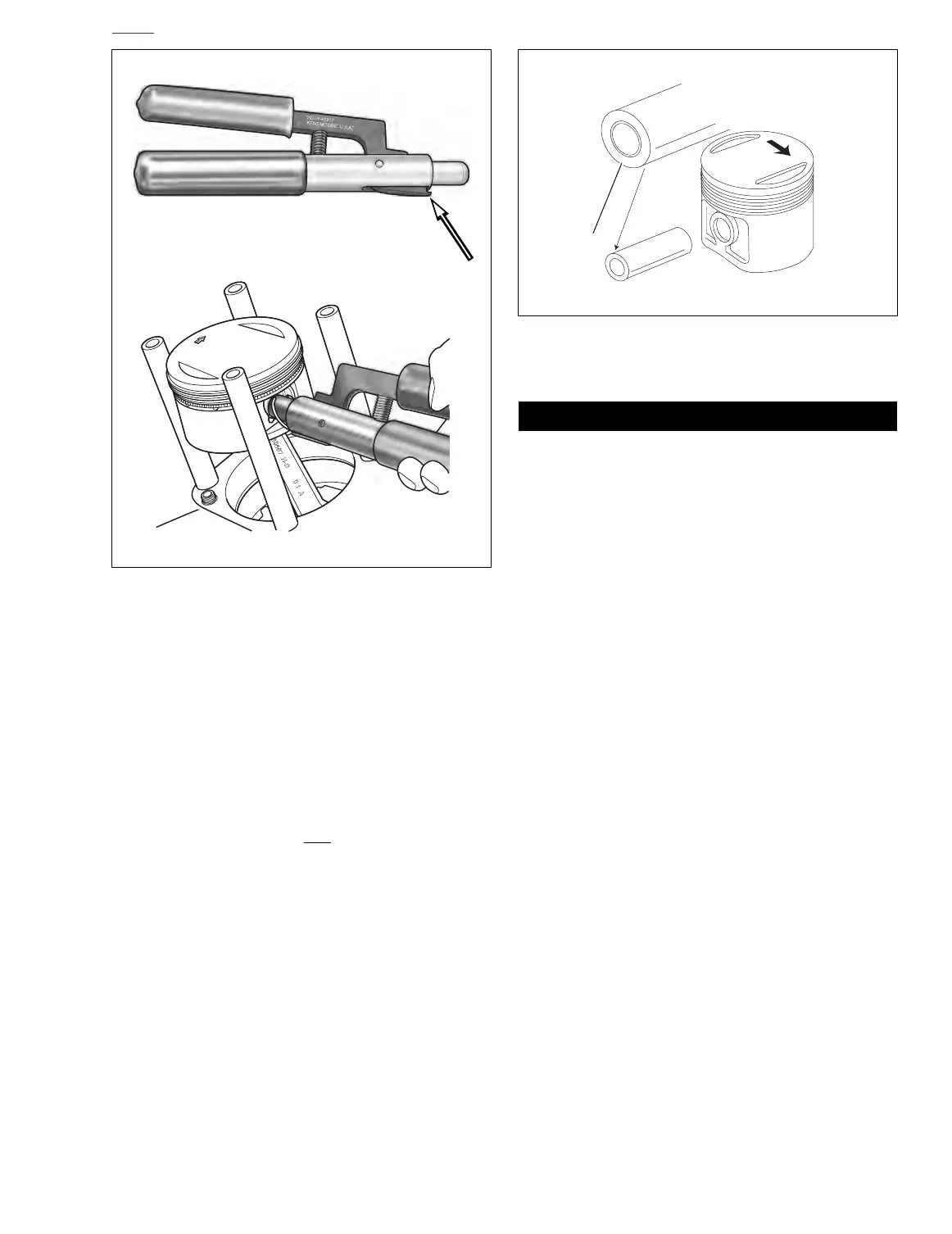

Figure 3-71. Removing Piston Pin Circlip Using
Piston Pin Circlip Remover/Installer
(Part No. HD-42317)
a0479x3x
b1002x3x
Figure 3-72. Piston Pin and Piston Identification
