2003 Buell P3: Engine 3-53
HOME
See Figure 3-91. The feed and return hoses run together
alongside the engine and forward to the oil pump. The feed
hose attaches to the rear most oil pump fitting; the return
hose connects forward and above.
See Figure 3-92. The drain hose attaches to the left side of
the footpeg support bracket frame.

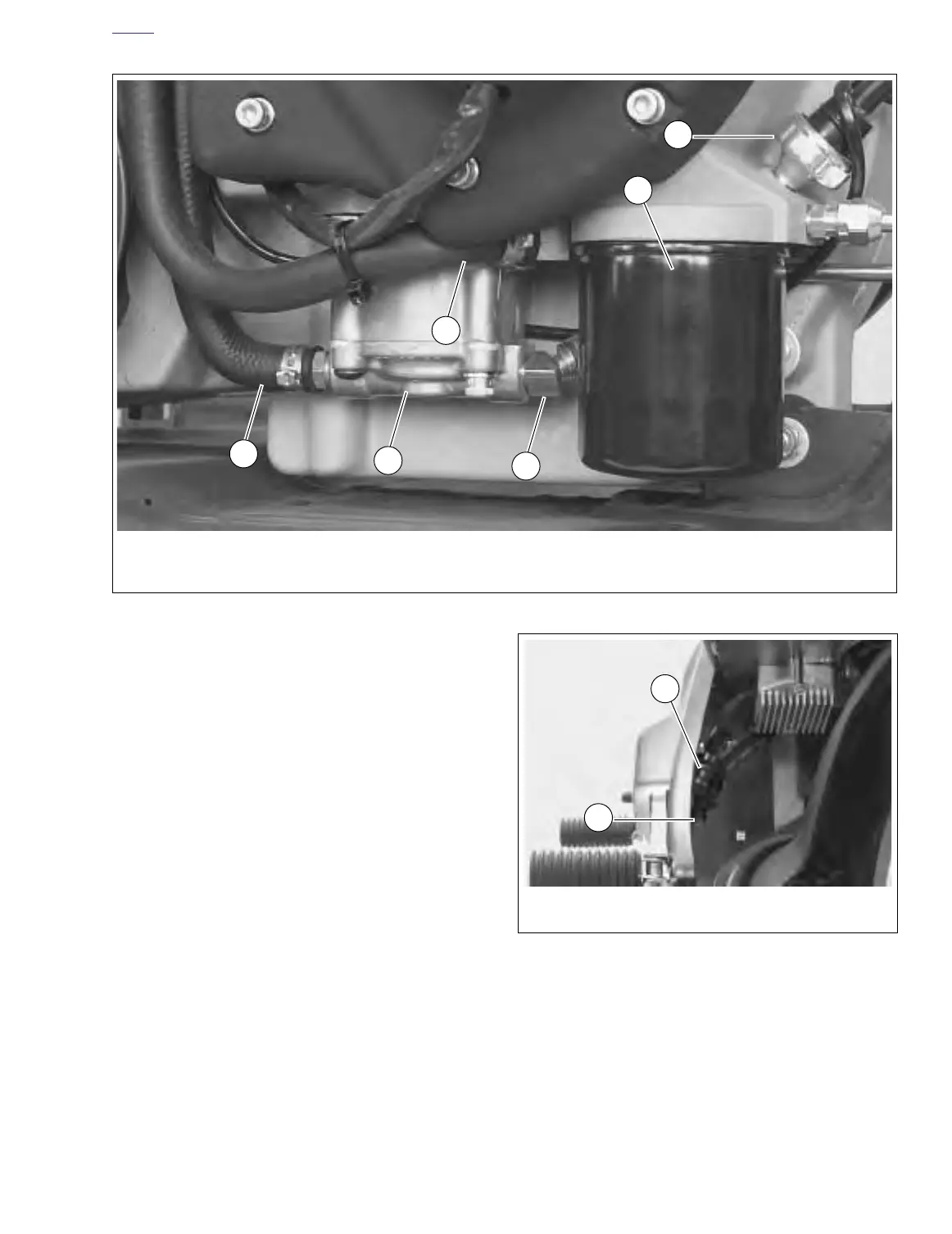

Figure 3-91. Oil Pump Connections
1. Oil feed line (into pump)
2. Oil pump
3. Oil feed line (out to oil filter)
4. Oil return line
5. Oil filter
6. Oil pressure indicator switch
3
1
2
4
5
6
Figure 3-92. Oil Drain Hose
1. Breather hose
2. Oil drain hose
1
2
