2003 Buell P3: Drive/Transmission 6-23
HOME
MAINSHAFT DISASSEMBLY
1. See Figure 6-33. Remove mainshaft 2nd (14) gear from
mainshaft (6).
2. At mainshaft, between mainshaft 1st gear (12) and main-
shaft 3rd gear (13), expand retaining ring (11) and move
next to mainshaft 1st gear (12) along with thrust washer
(10). Move mainshaft 3rd gear (13) as far as possible
toward mainshaft 1st gear (12). Expand retaining ring
(11) at opposite side of mainshaft 3rd gear (13) and slide
off end of shaft. Slide thrust washer (10) off end of main-
shaft
3. Remove mainshaft 3rd gear (13) and its split bearing (8)

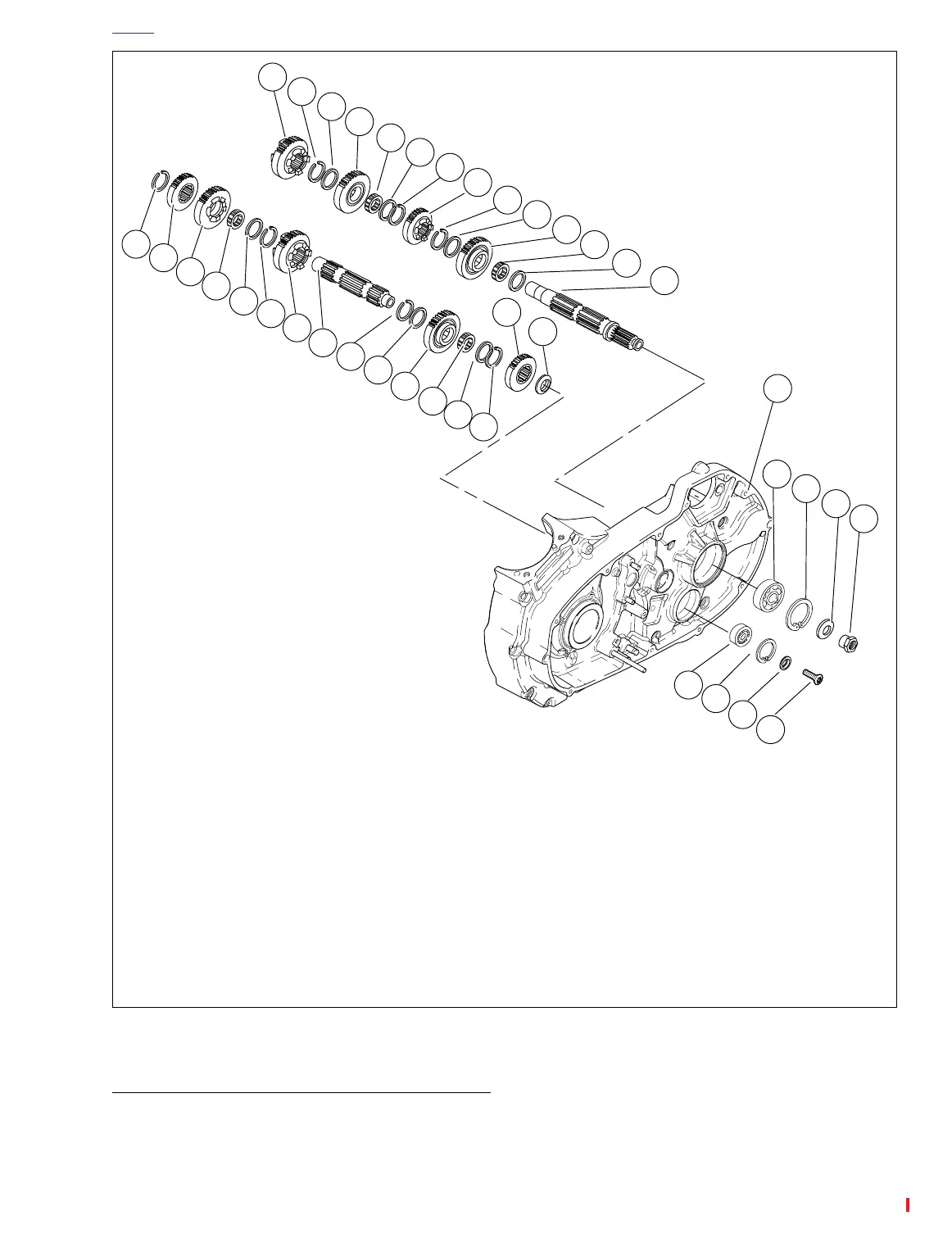

Figure 6-33. Transmission Assembly Left Crankcase Half
1. Mainshaft nut
2. Spring washer
3. Retaining ring
4. Bearing
5. Left crankcase half
6. Mainshaft
7. Spacer
8. Bearing (4)
9. 4th gear mainshaft
10. Thrust washer (6)
11. Retaining ring (7)
12. 1st gear mainshaft
13. 3rd gear mainshaft
14. 2nd gear mainshaft
15. Spacer
16. 4th gear countershaft
17. 1st gear countershaft
18. Countershaft
19. 3rd gear countershaft
20. 2nd gear countershaft
21. 5th gear countershaft
22. Bearing
23. Retaining ring
24. Countershaft retainer
25. Screw
a0126x6x
16
15
5
4
3
2
1
22
23
24
25
11
10
11
21
20
8
10
11
19
18
11
10
17
8
14
11
10
13
8
10
11
12
11
10
9
8
7
6
