1-22 2003 Buell P3: Maintenance
HOME

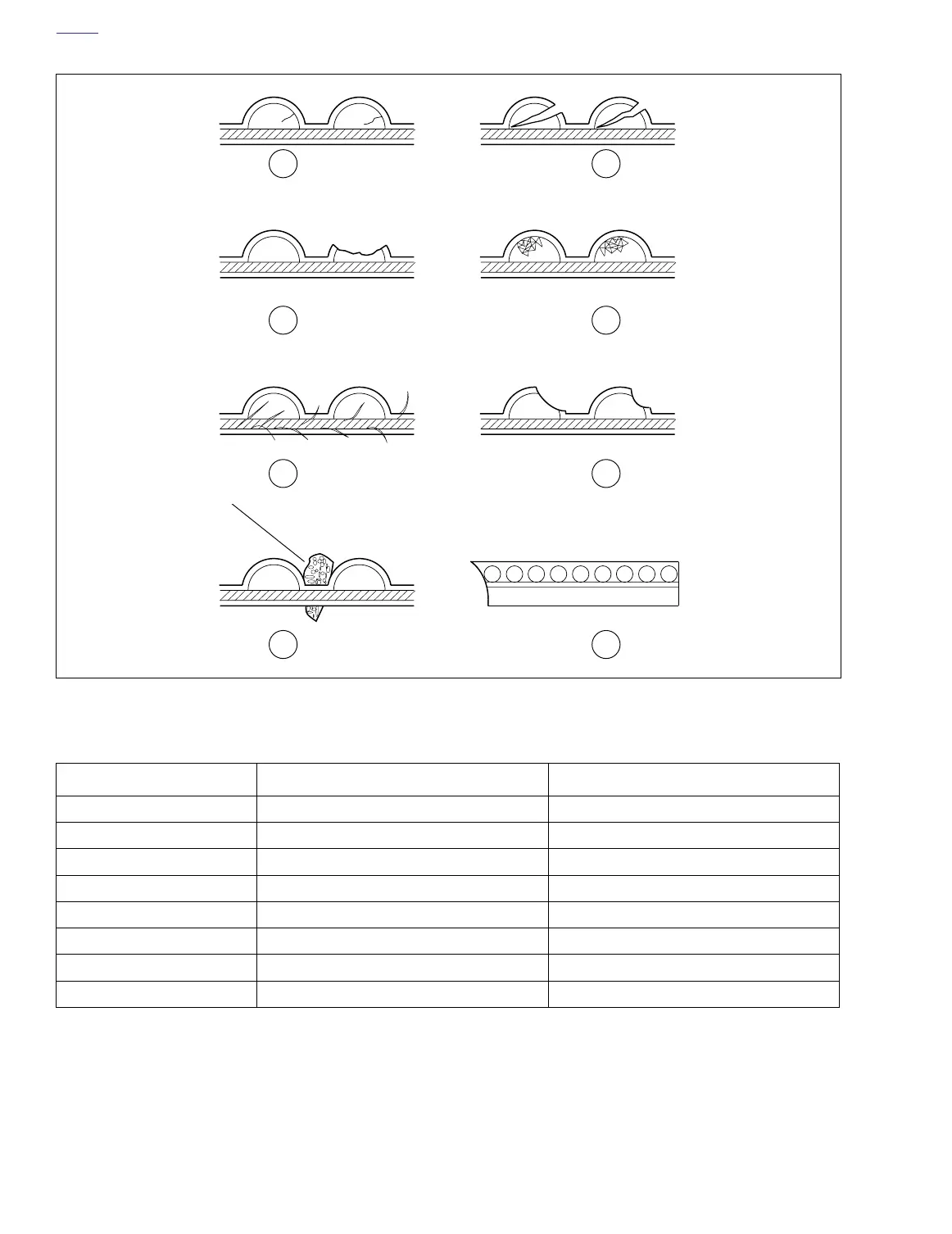

Figure 1-19. Drive Belt Wear Patterns
1 2
3 4
5 6
7 8
Stone
Cross-section shown
a0147x6x
Sprocket
side of belt
Table 1-5. Drive Belt Wear Analysis
PATTERN IN FIGURE 1-19. CONDITION REQUIRED ACTION
1Internal tooth cracks (hairline) OK to run, but monitor condition
2External tooth cracks Replace belt
3Missing teeth Replace belt
4 Chipping (not serious) OK to run, but monitor condition
5 Fuzzy edge cord OK to run, but monitor condition
6 Hook wear Replace belt
7Stone damage Replace belt if damage is on the edge
8Bevel wear (outboard edge only) OK to run, but monitor condition
