Plug-in version on valves with connector pattern A (e. g. types 2832, 2833, 2834, 2835, 2836, 2853, 6022,6023,6024,
6223).
The operating unit can be removed after the setting process. During operation of the Control Electronics 8605 in
cable plug version without operating unit, the operating status is indicated by two LED’s.
Variant 1 for valves with a max. current from 200 to 1000 mA•
Variant 2 for valves with a max. current from 500 to 2000 mA•

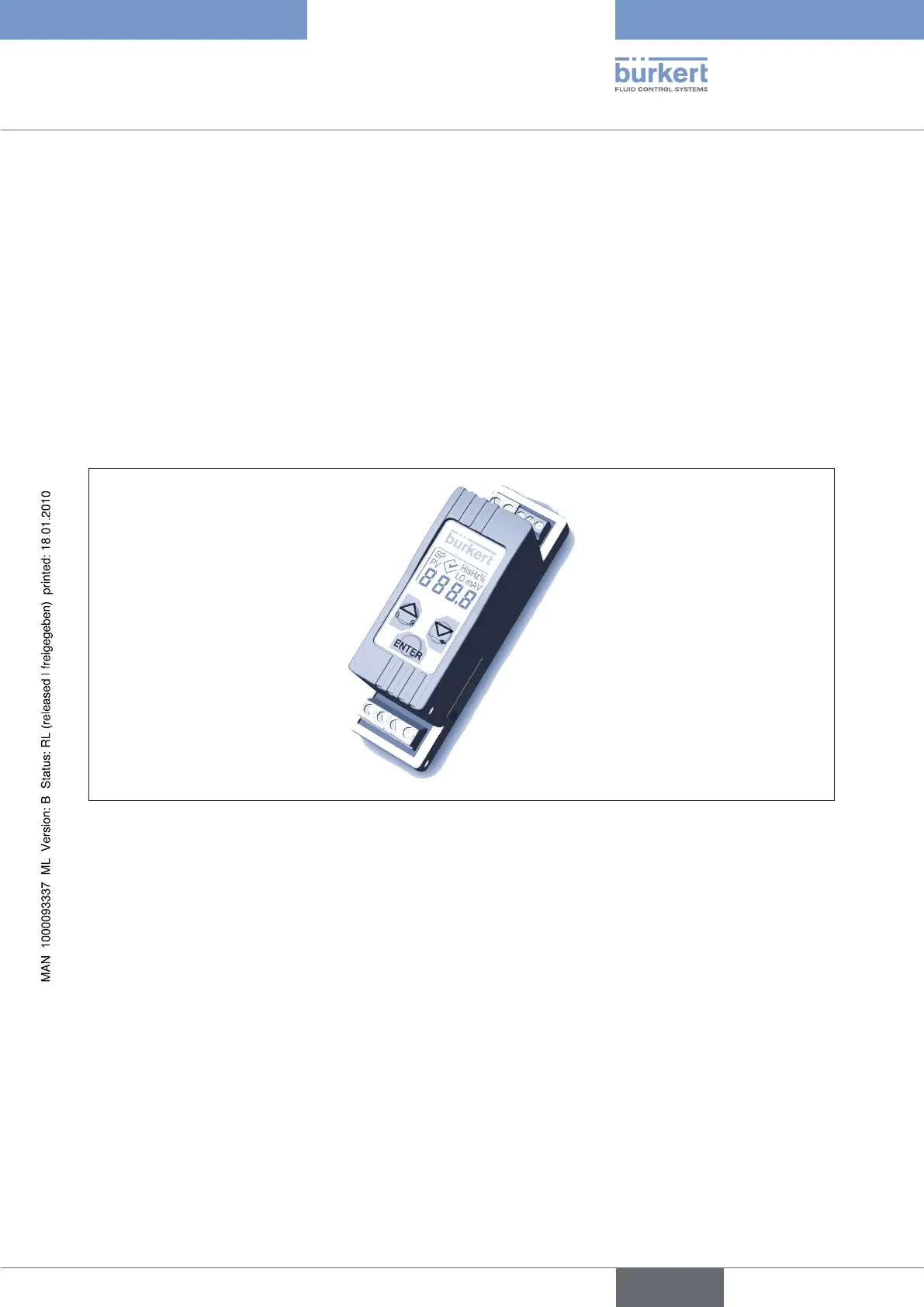

Type 8605 DIN rail versionFigure 2:
Separate electronics in housing for DIN rail mounting to DIN EN 50022. This form is suitable for all proportional
valves in the indicated current range. The operating unit cannot be removed.
Variant 1 for valves with a max. current from 40 to 220 mA•
Variant 2 for valves with a max. current from 200 to 1000 mA•
Variant 3 for valves with a max. current from 500 to 2000 mA•
