Tighten screw M3 to max. 1 Nm

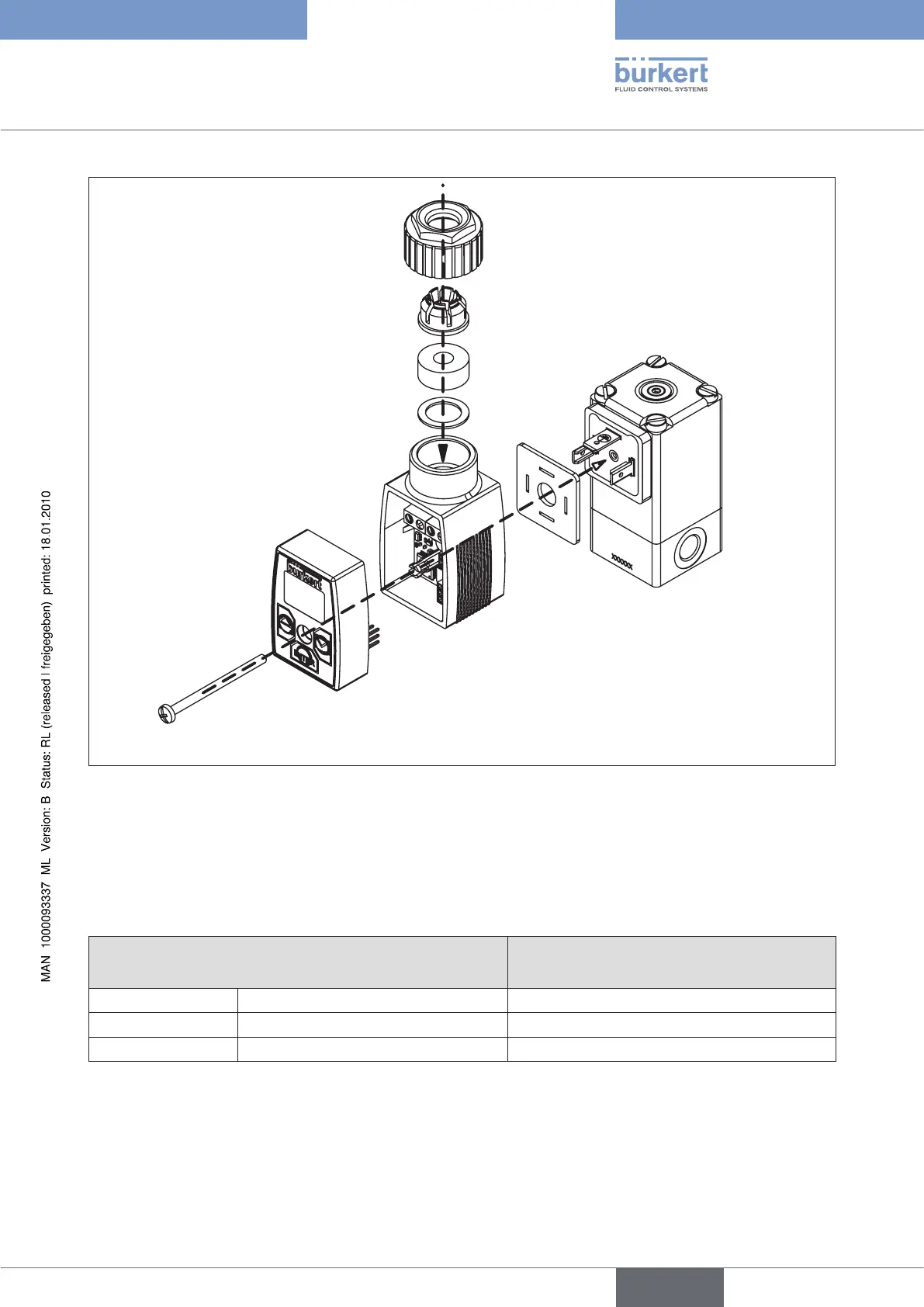

Installation of the cable plug version on the valveFigure 11:
The electrical connection of the Controller Type 8605 in DIN rail version is made via terminal strips.
2-pin for valve max. 1.5 mm²
3-pin for RS232- and RS485-interface max. 0.5 mm²
4-pin for voltage supply and standard signal max. 1.5 mm²
