Burkert 8605 - Page 20

20
Installation
1
7
6
5
2
3
4
9
8

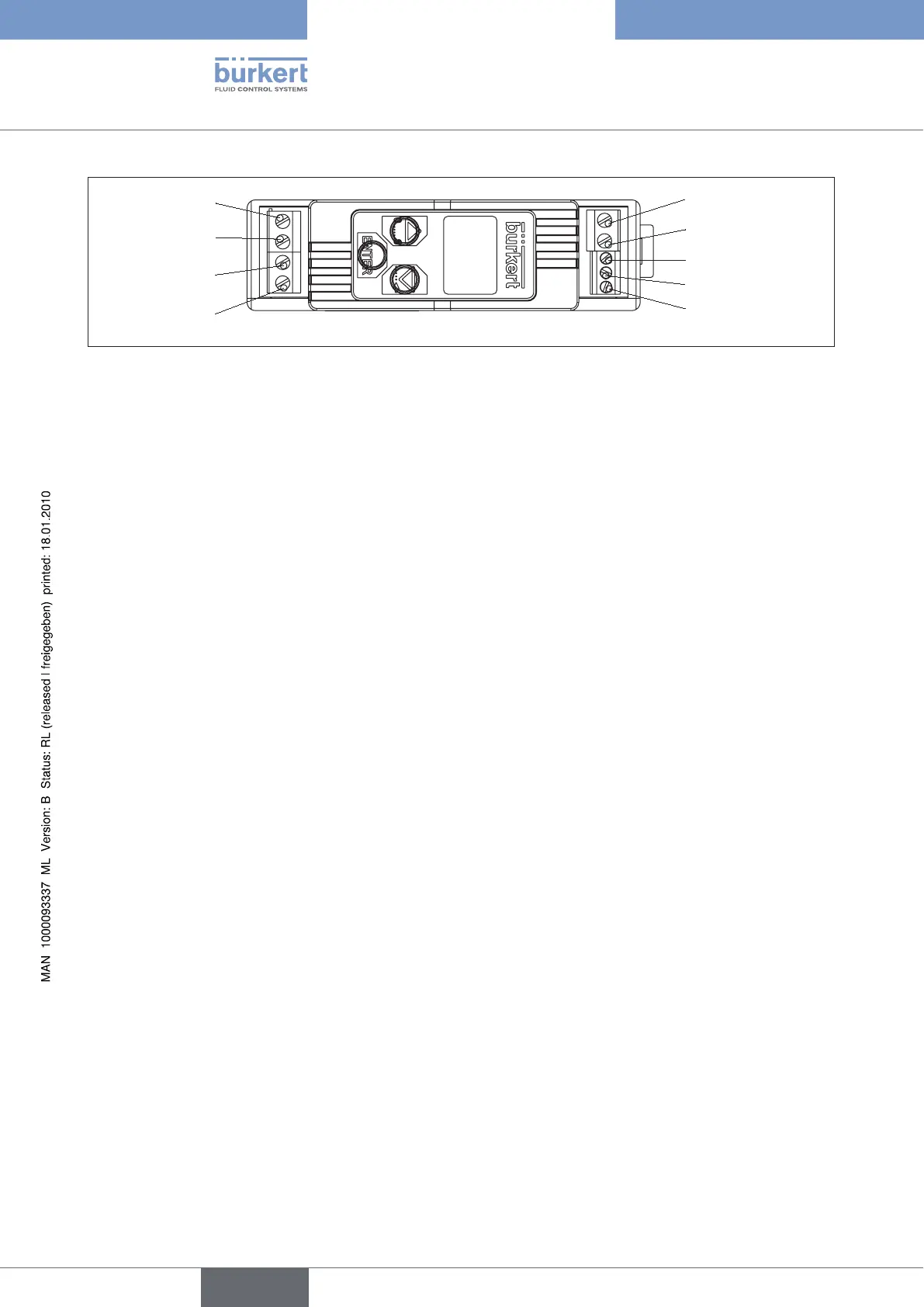

Terminal strip connectionFigure 12:
Legend:
12 ... 24V DC1.
GND2.
Standard signal (-)3.
Standard signal (+)4.
Valve5.
Valve6.
RS485-B7T x D7.
RS485-A/R x D8.
GND9.
english

