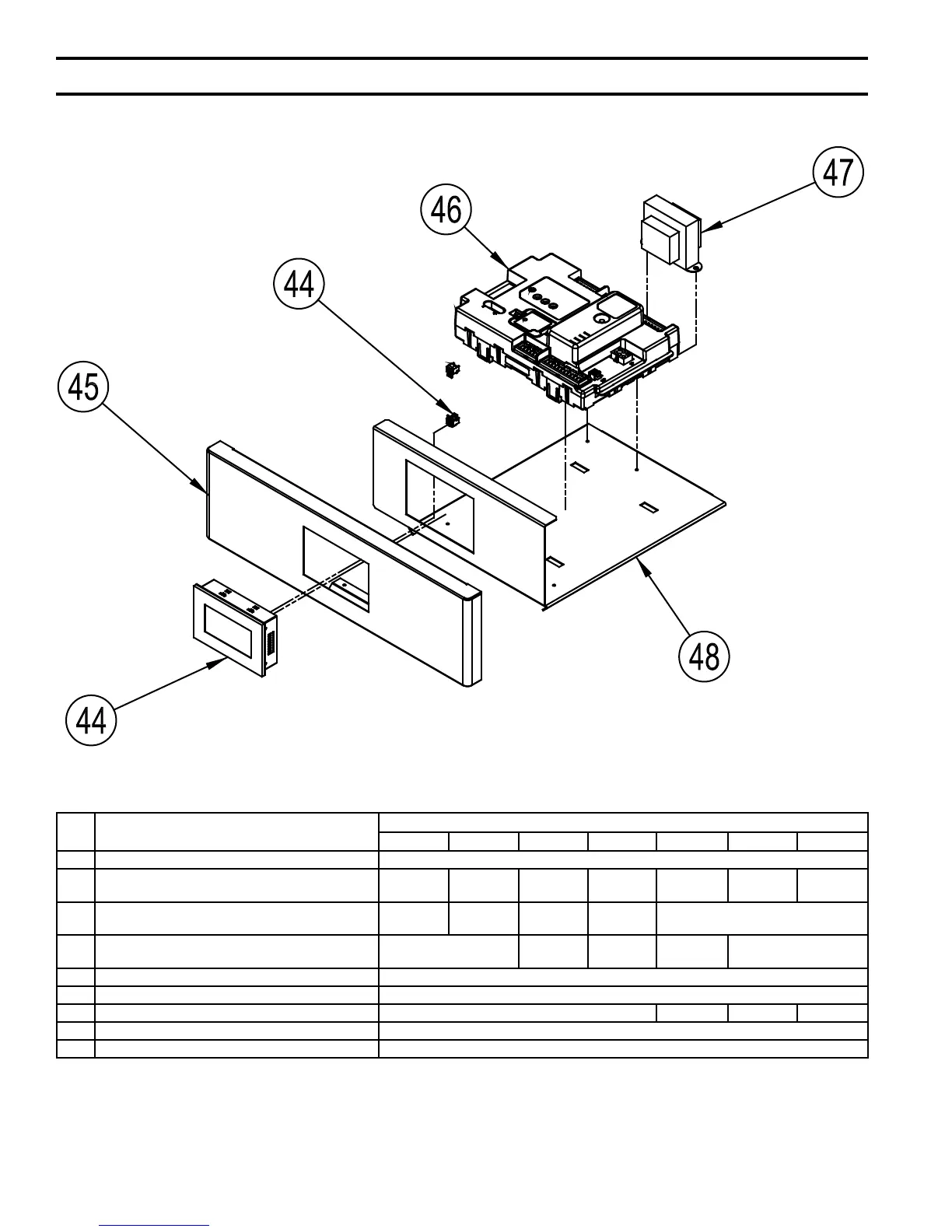

XV. Repair Parts (continued)
Key
No.
Description
(Quantity) Part Number
ALP080 ALP105 ALP150 ALP210 ALP285 ALP399 ALP500
42 Wiring Harness (Not Shown) 102701-01
43A
Control Panel Assembly (Programmed -
0-2000’ or 0-7000’) (Includes all parts shown)
103142-01 103142-02 103142-03 103142-04 103142-05 103142-06 103142-07
43B
Control Panel Assembly (Programmed -
2000’ or 7000’) (Includes all parts shown)
103142-08 103142-09 103142-10 103142-11 N/A
43C
Control Panel Assembly (Programmed -
7001’ - 10,000’) (includes all parts shown)
N/A 103067-03 103067-04 103067-05 N/A
44 Programmed Display (with Mounting Hardware) 102726-02
45 Jacket, Upper Front Panel 102778-01
46 Sage2.1 (Programmed) 103141-01 103141-02 103141-03 103141-01
47 Sage2.1 Transformer 102516-01
48 Control Panel, Sage2.1 102777-01
To Next Page
