2.7.2 Bottom Bar

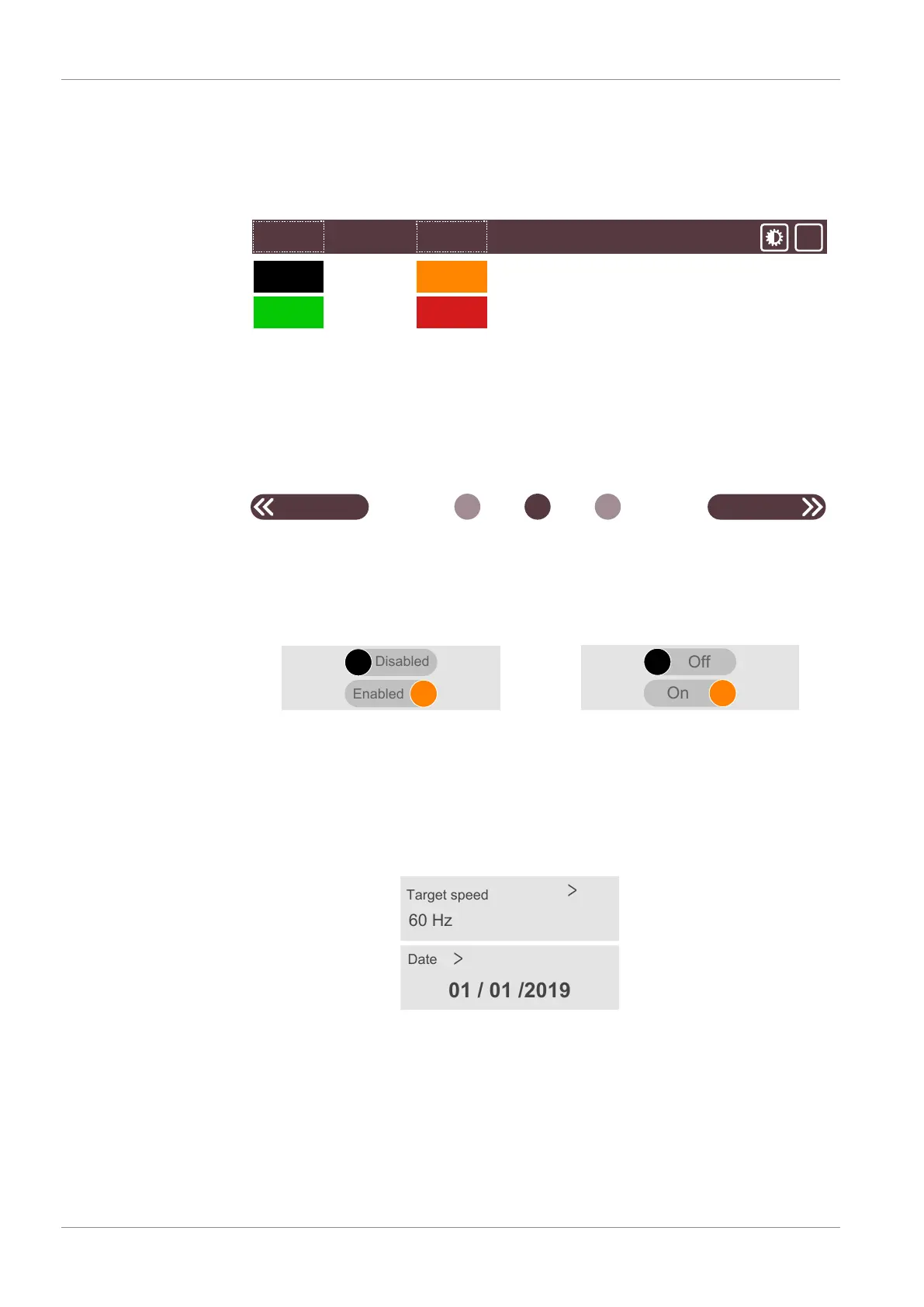

The bottom bar provides different pieces of information, in particular the machine state
and warning/alarm status.
OFF
RUNNING
WARNING
ALARM
Machine state
Warning and alarm
status
Date and hour
Screen
brightness
Help
2.7.3 Navigation
When several pages are available in the information panel, dots and “PREVIOUS/NEXT”
buttons are displayed above the bottom bar.
• Press either on a dot or “PREVIOUS/NEXT” button to pass from a page to another
one.
The switch button is black when it is disabled and orange when it is enabled.
• Press on the switch button to change its state.
If a password is required:
• Enter the password, see the chapter Role and User [►11].
When the character “>” is displayed in a cell of the information panel, that means a step
further is available. For example: a redirect link to another view or to open a specific
editing view.
• Press in the cell to open the next dialog windows.
If a password is required:
• Enter the password, see the chapter Role and User [►11].
Date
Target speed
01 / 01 /2019
60 Hz
To Next Page
