Maintenance | 8
0870215096_RA0760A_PLUS_-0001_IM_en
45 / 56
8.4

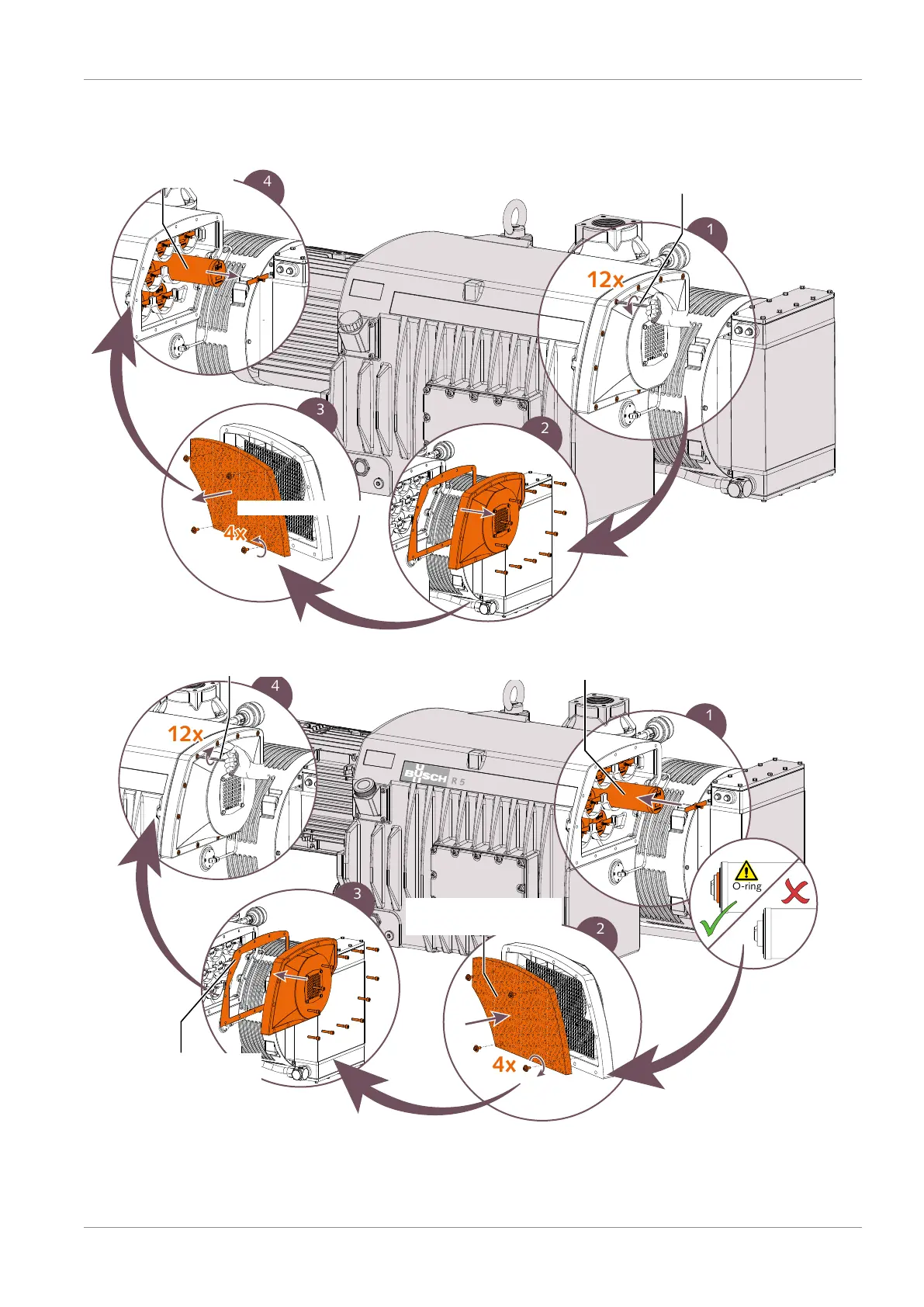

Exhaust Filter Change
12x
1
2
4x
3
4
6 mm hex key
extract filter material (FM)
8x exhaust filter (EF)
1
O-ring
12x
4
4x
2
3
6 mm hex key
Max. admissible torque: 21 Nm
1x filter material (FM)
part no.: 0537 000 042
1x flat gasket
part no.: 0480 000 131
Busch genuine spare parts,
8x exhaust filter (EF), part no.: 0532 140 160
44
46
Table of Contents
Default Chapter
2
Table of Contents
2
1 Safety
4
2 Product Description
5
Operating Principle
6
Application
6
Standard Features
6
User Interface
6
Control Unit
6
Monitoring Devices
7
I/O and Communication Port
7
Gas Ballast Valve
7
Optional Accessories
7
Inlet Filter
7
P&ID "Piping and Instrumentation Diagram
8
LED Indicators
8
Description of User Interface Functions
9
Menu Overview
9
Bottom Bar
10
Navigation
10
Role and User
11
System Settings
12
Machine and Software Identification
12
3 Transport
13
4 Storage
14
5 Installation
14
Installation Conditions
14
Connecting Lines / Pipes
15
Suction Connection
15
Discharge Connection
15
Filling Oil
16
Electrical Connection
17
Wiring Diagram Control Unit
18
6 Commissioning
19
Prerequisites before Use
19
Configuration
19
Start up
20
7 In Operation
21
Control Mode
21
Local/Manual
22
Local/Auto "Week Planner
22
Remote/Auto
23
Operating Mode
24
Speed Control
24
Pressure Control
25
Ecomode
25
Gas Ballast Valve Control
27
Warm-Up / Cool-Down Modes
28
Conveying Condensable Vapours
29
External Dry Contact
29
Monitoring
31
Operating Information
31
Operating Data
33
History
36
Operating Curves
37
Dysfunction
39
Warning and Alarm Thresholds
39
Warning/Alarm Acknowledgment Procedure
40
Stop the Machine
41
8 Maintenance
41
Maintenance Schedule
41
Oil Level Inspection
42
Oil and Oil Filter Change
43
Exhaust Filter Change
45
Air Heat Exchanger Cleaning
46
9 Overhaul
46
10 Decommissioning
47
Dismantling and Disposal
47
11 Spare Parts
47
12 Troubleshooting
48
13 Technical Data
52
14 Oil
52
15 EU Declaration of Conformity
53
