BWT Manager Connect Duo - Mounting the Tapping Saddles; Mounting the Ph and Redox Probe Holders

UNIVERS
18
2023/03 - Revision index: A - Code: 0000139233

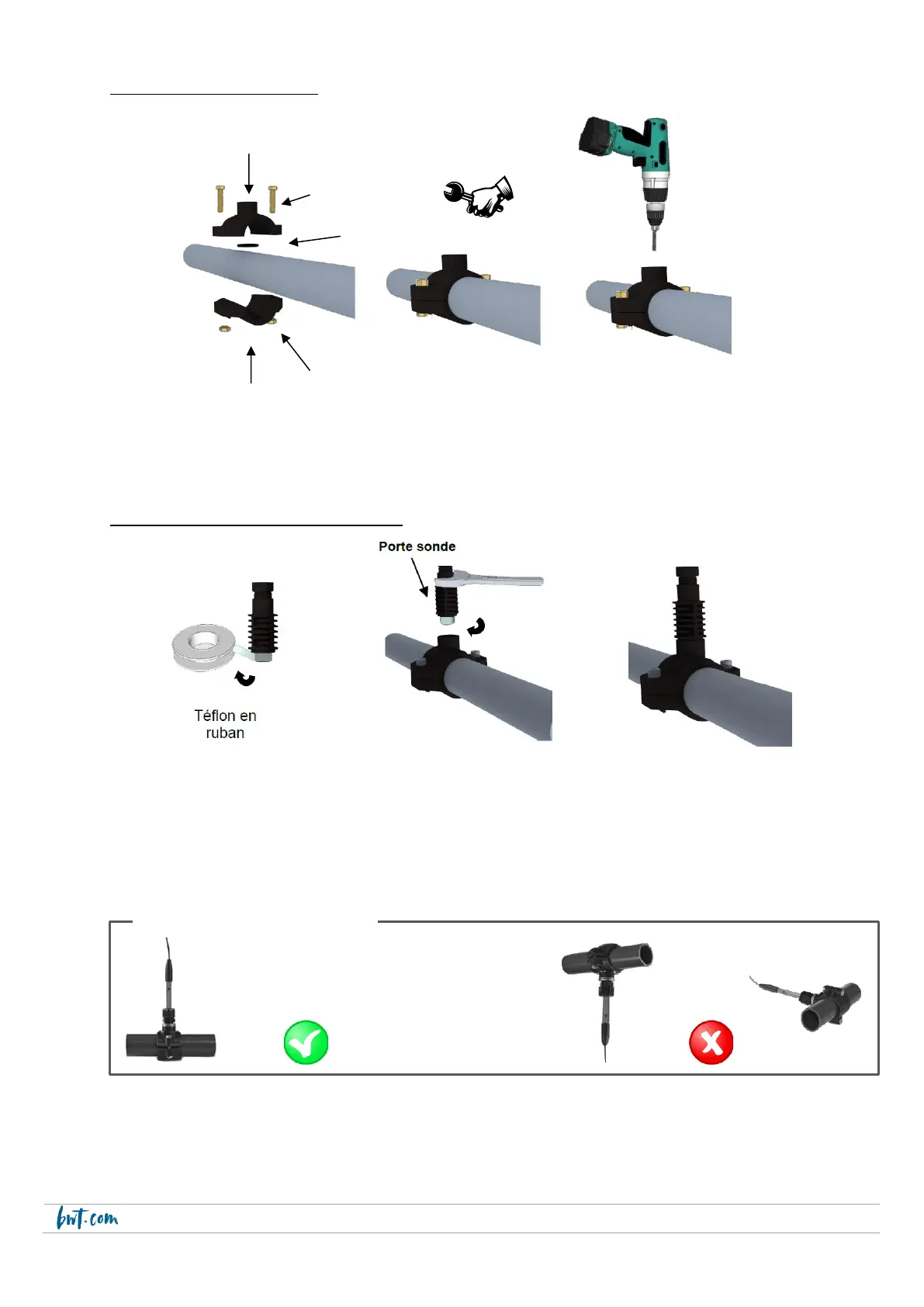

Mounting the tapping saddles:
Mounting the pH and redox probe holders:
Ideally, place the probe
vertically above the pipe
Positioning of probes
The water pressure should not exceed 1.5 bar
Step 4
Put Teflon on the threads of
the "probe holder"
Step 5
Mount the "probe holder" on the
saddle. Tighten moderately
Step 6
The "probe holder" is mounted,
wait until the end of the
installation to insert the probes!
Gasket
Screw
Nut
Step 1
Apply the saddle on both
sides of the piping in a
straight section of at least
15cm
Step 2
Tighten both sides at the
same time to keep the
saddle perfectly straight
Step 3
Once the saddle is
attached, drill a 16mm hole
properly centred
