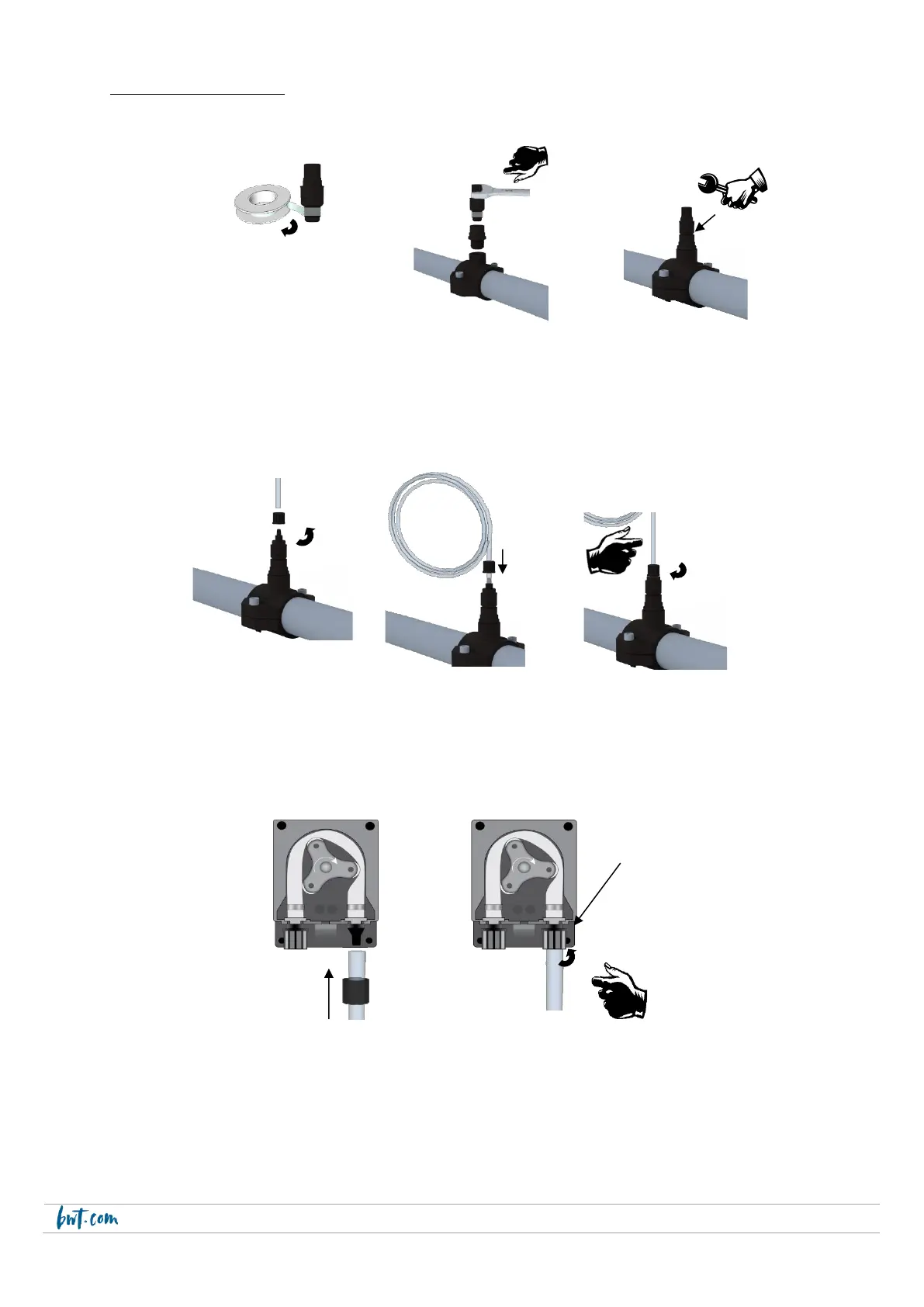

Mounting the injection kit
Step 8
Screw the fitting onto the
tapping saddle.
Teflon tape
Step 7
Apply Teflon to the threads of
the fitting and the injection
valve.
Step 9
Tighten the injection valve on
the fitting.
Step 12
Screw the cap with the PE hose
(white) onto the valve.
Step 10
Unscrew the injection valve
nut.
Step 11
Pass the PE hose through
the cap and fit it onto the
valve cone.
PE hose
(white)
Step 13
Same operation on the
dosing pump side.
Step 14
Screw the cap with the PE
hose (white) onto the pump.
Arrow
indicating the
pump output
