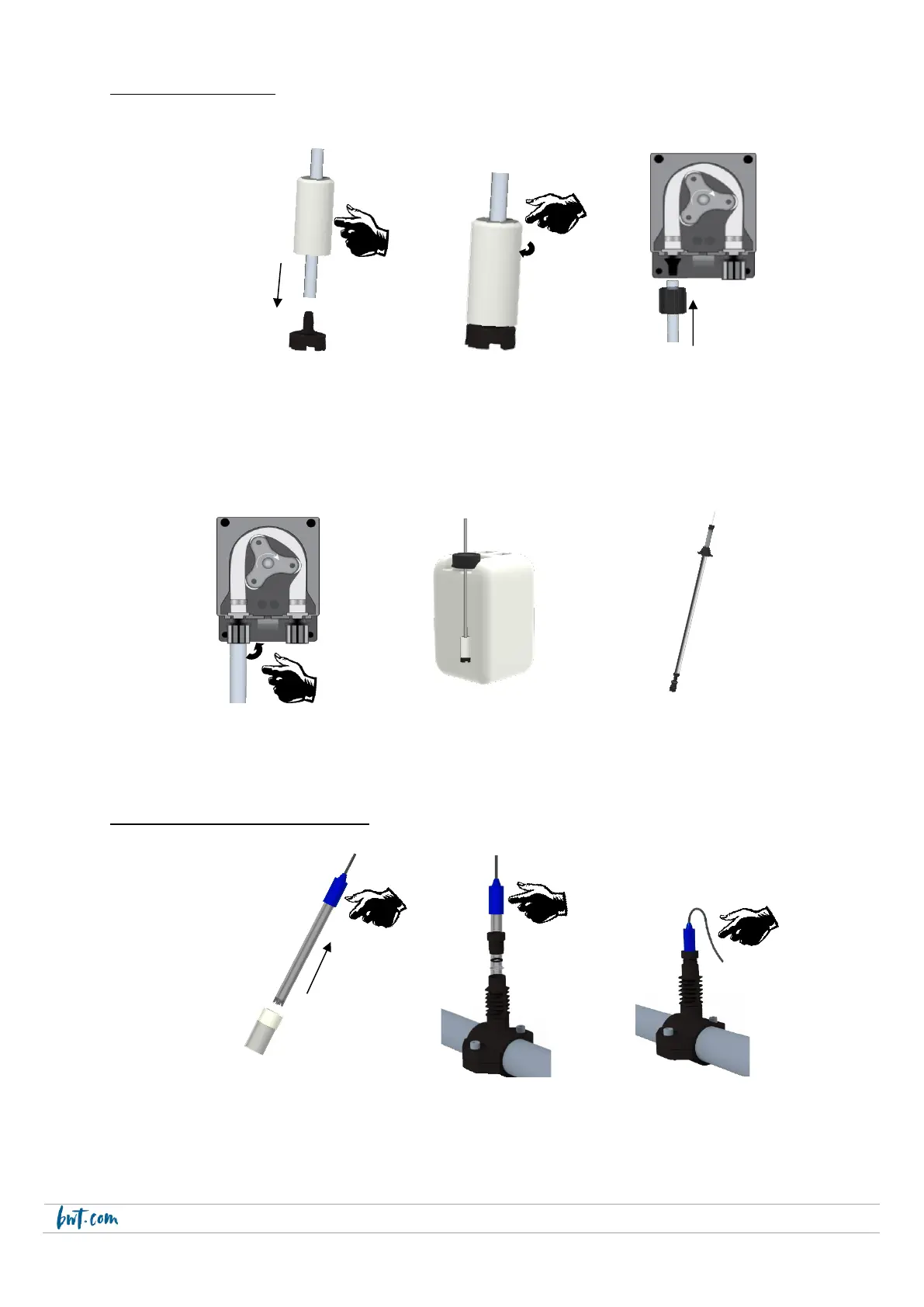

Mounting the suction kit
Mounting the pH and/or redox probes
Step 15
Unscrew the cap and pass
the clear hose.
Step 17
Screw thePVC hose
(transparent)
on the dosing pump.
Step 16
Tighten the nut on the
cone.
PVC hose
(Transparent
)
Suction valve
Step 19
Install the weighted bottom trap
valve and adjust the depth.
Step 20 (optional)
Place the level probe and its
weight and adjust.
Step 18
Tighten the nut on the
dosing pump.
Step 23
Screw on the "probe
holder" nut by hand.
The probe is ready!
Step 22
Slide the nut onto the
probe and the clamp
underneath, then place
the probe.
Step 21
Remove the probe from
its protective sleeve and
unscrew the "probe
holder" nut.
