CAUTION

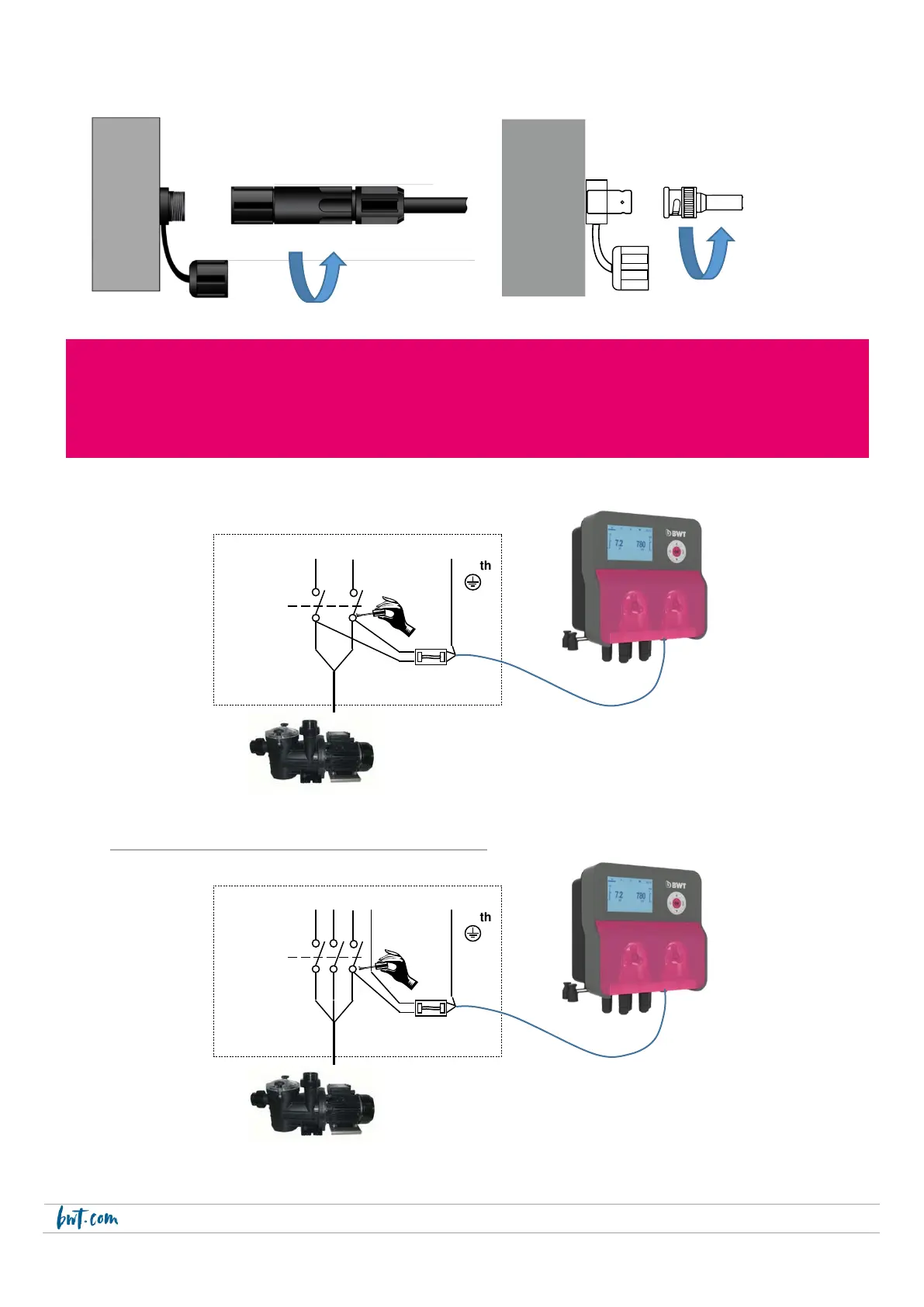

Electrical connection of the box BWT MANAGER CONNECT DUO must be connected to the pool's
filtration system.
Input 8 can be used to fulfil this condition.
(Potential free input, do not connect 220 V or other power supply to this input)
Case of a 230V 50Hz single-phase filter cabinet...
Case of a 380V 50Hz three-phase filter cabinet...
NOTE: In both cases, connect "Neutral and one phase" as well as earth!
"Binder" type connector
"BNC" type connector
Phase Neutral
Earth
Filter motor
contactor
Disconnecting
device
P1 P2 P3 Neutral
Earth
Filter motor
contactor
Disconnecting
device
