Choose from the following options for connecting a computer to the label printer:
Direct connection to the serial RS-232 interface (1) ( ”2.1” on page 7).
Direct connection to the Ethernet interface (4) ( ”2.2” on page 7).
Connection via a computer network to the Ethernet interface (4) ( ”2.2” on page 7).
Direct connection to the high-speed USB slave interface (2) ( ”2.3” on page 8).
Connection via an optional interface adapter (Parallel/Centronics, RS-422/485) to a USB master interface (3).
Connection to a wireless network via optional WLAN card installed in the slot for type II PC card.
1
2
3
4
5
6
7
8

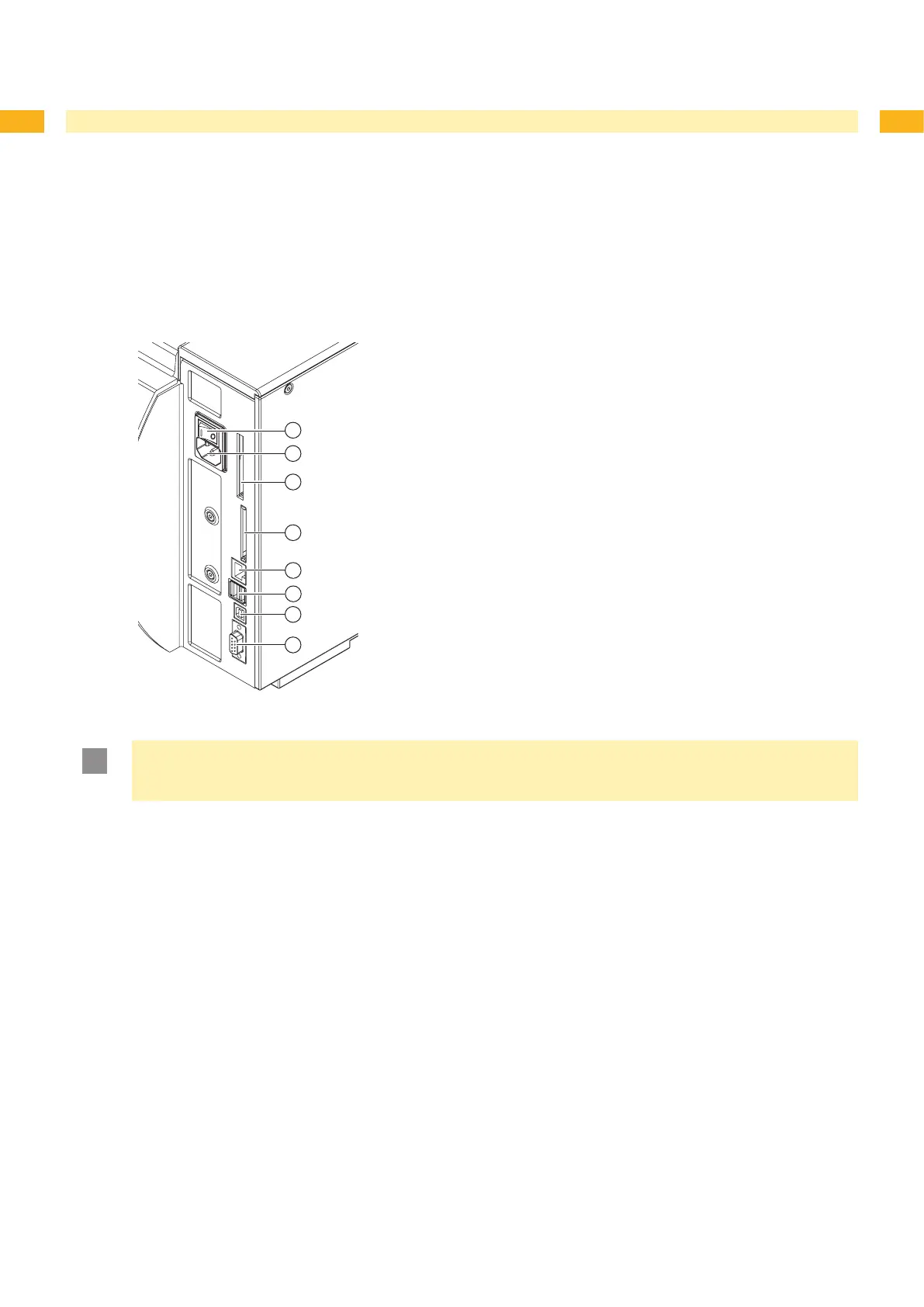

1 Serial RS-232 interface
2 USB 2.0 high speed slave interface
3 Two USB master interfaces for keyboard, scanner and optional
interface adapters, USB ash drive or service key
4 Ethernet 10/100 Base T interface
5 Slot for CompactFlash memory card
6 Power connection jack
7 Slot for type II PC card or WLAN card
8 Power switch
1 Power and computer connectionsFig.
!
Attention!
Insufcient or missing grounding can cause faults during operation.
Ensure that all computers and connection cables connected to the label printer are grounded.
•
•
•
•
•
•
2 Connecting Label Printer to Computer
