4. To lift the printhead assembly, swing the lever (2) clockwise until it stops.
5. Remove the printhead (3) from the pins (8) on the printhead carriage.
6. Carefully unplug the printhead (4) from the connectors of the printhead
cables (6 and 7).
7. Connect the new printhead to the cables.
8. Place the printhead into the assembly and insert the holes (5) onto the
pins (8).
9. Tighten the locking screws (1) by hand. Check that the printhead is
completely secured in the printhead carriage.
10. Swing the lever (2) again into the position shown in figure E-4.
11. Tighten the locking screws (1) completely. Do not over-tighten the locking
screws (1).

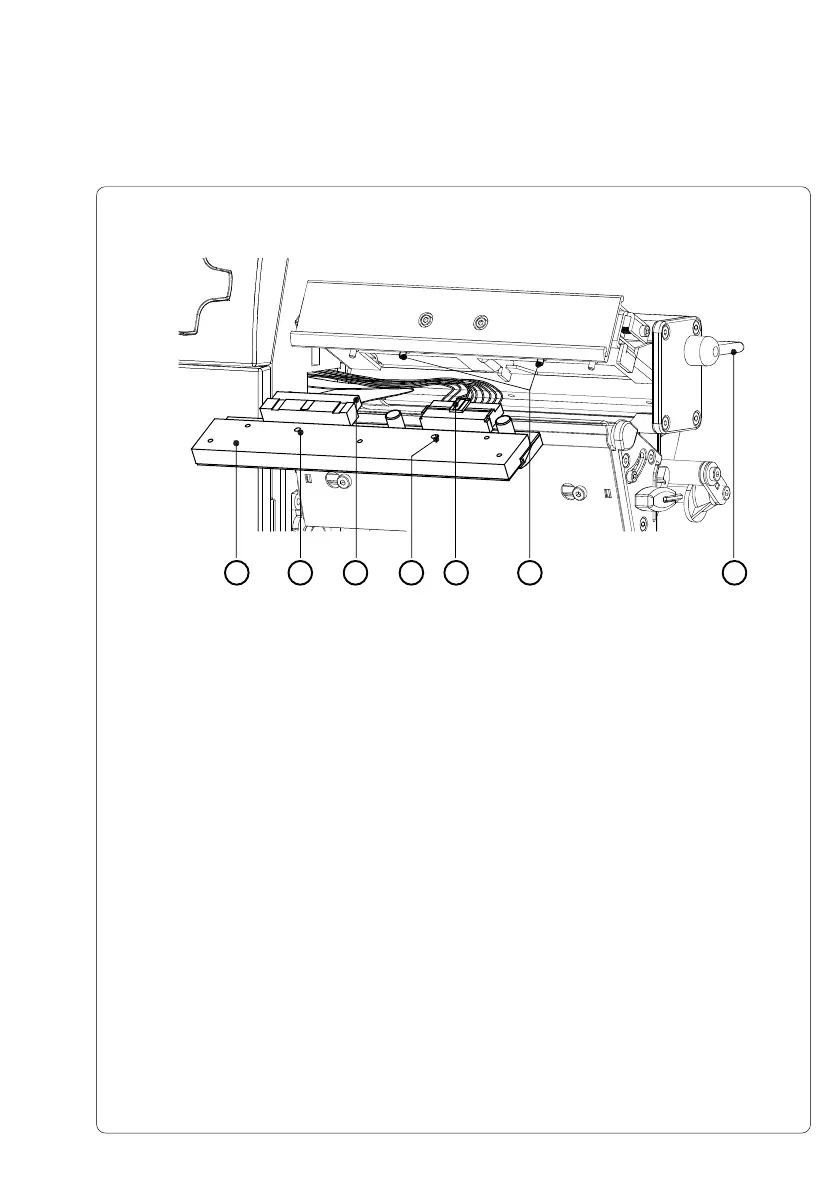

Fig. E-5 Changing Printhead A6 (II)
25 563 7 8
Appendix E - Replacing Assembly Units

CAB A4 Specifications

General

Printer Type	Thermal transfer / direct thermal
Interfaces	USB, Ethernet, RS232
Label Thickness Range	0.05 mm - 0.25 mm
Memory	8 MB Flash
Power Supply	100-240 VAC, 50/60 Hz
Operating Temperature	+5°C to +40°C
Print Resolution	203 dpi
Humidity Range	10-85% non-condensing
