CAB A4 User Manual

E-4 cab Produkttechnik GmbH & Co KG
Replacing the Printhead A6
2
3
1

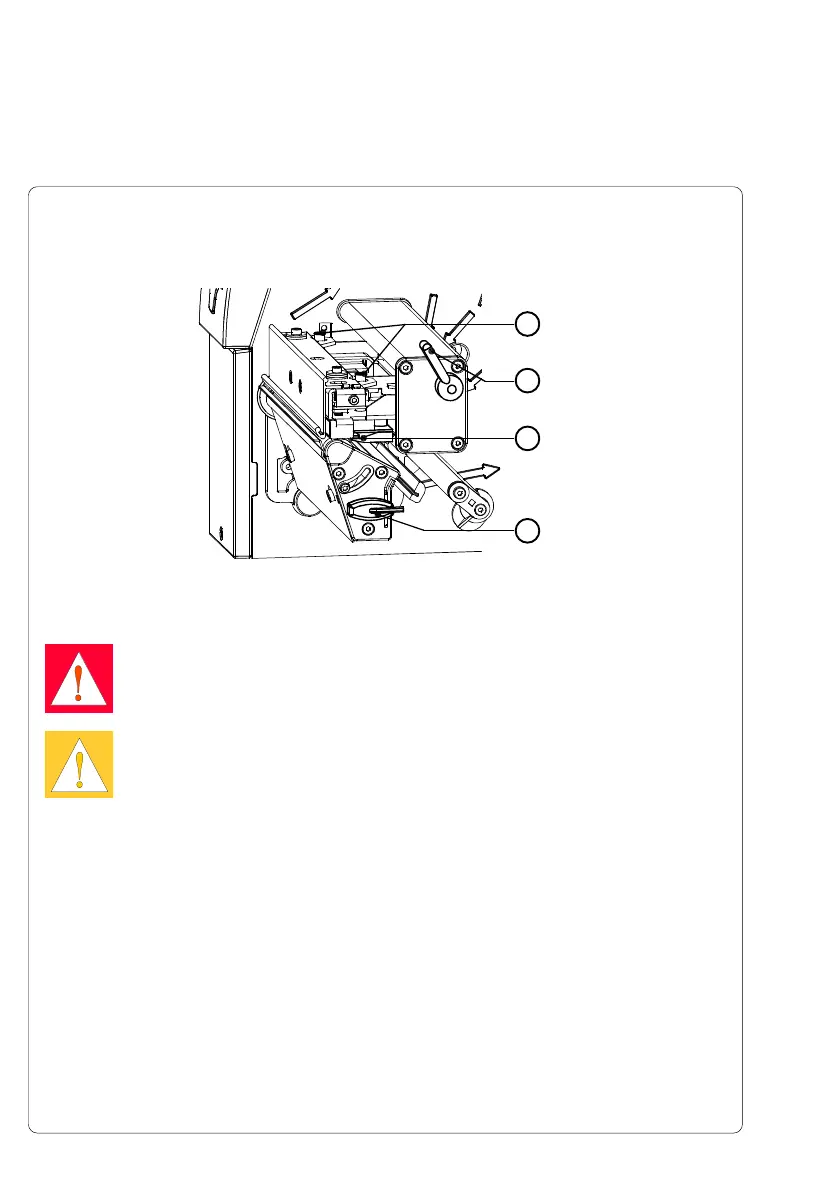

Fig. E-4 Changing Printhead A6 (I)
1. Remove the media from the printer.
2. Swing the lever (2) to the position shown in figure E-4. In this position, the
printhead assembly is unlocked but still lying on the print roller.
3. Loosen the printhead locking screws (1) using the Allen key (4).
WARNING !
Unplug the power cord from the power source before starting!
CAUTION !
Protect the printhead against damage by electrostatic dischargement !
- Put the printer on to a grounded conductive surface !
- Ground yourself during printhead replacement for example using a
grounded wrist-strap !
- Do not touch the connector pins of the printhead by naked hands !
Make sure the glass surface on the printhead is not touched by sharp
objects or your hand!
4
Appendix E - Replacing Assembly Units

CAB A4 Specifications

General

Printer Type	Thermal transfer / direct thermal
Interfaces	USB, Ethernet, RS232
Label Thickness Range	0.05 mm - 0.25 mm
Memory	8 MB Flash
Power Supply	100-240 VAC, 50/60 Hz
Operating Temperature	+5°C to +40°C
Print Resolution	203 dpi
Humidity Range	10-85% non-condensing
