LEGEND Fig. 18
1 52.8 cm
2 94.1 cm
3 52.8 cm
4 23.8 cm
5 32.5 cm
6 17.3 cm
7 Exhaust fumes d.8 cm
8 Hole combustion air inlet d.6 cm
9 21.5 cm

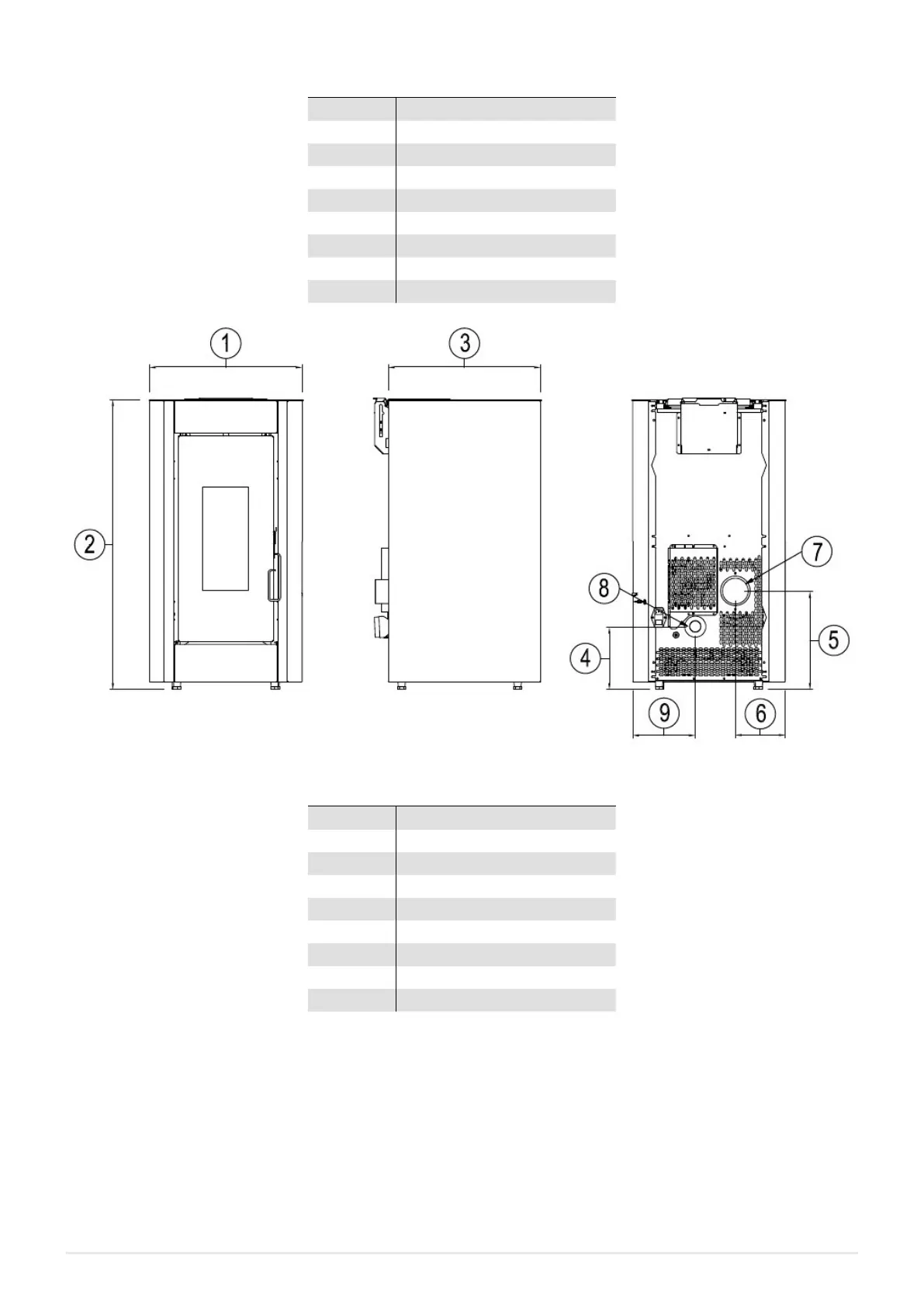

Fig. 19 - General dimensions: Kriss
3
LEGEND Fig. 19
1 52,8 cm
2 94,1 cm
3 52,8 cm
4 23,8 cm
5 32,5 cm
6 17,3 cm
7 Exhaust fumes d.8 cm
8 Hole combustion air inlet d.6 cm
9 21,5 cm
