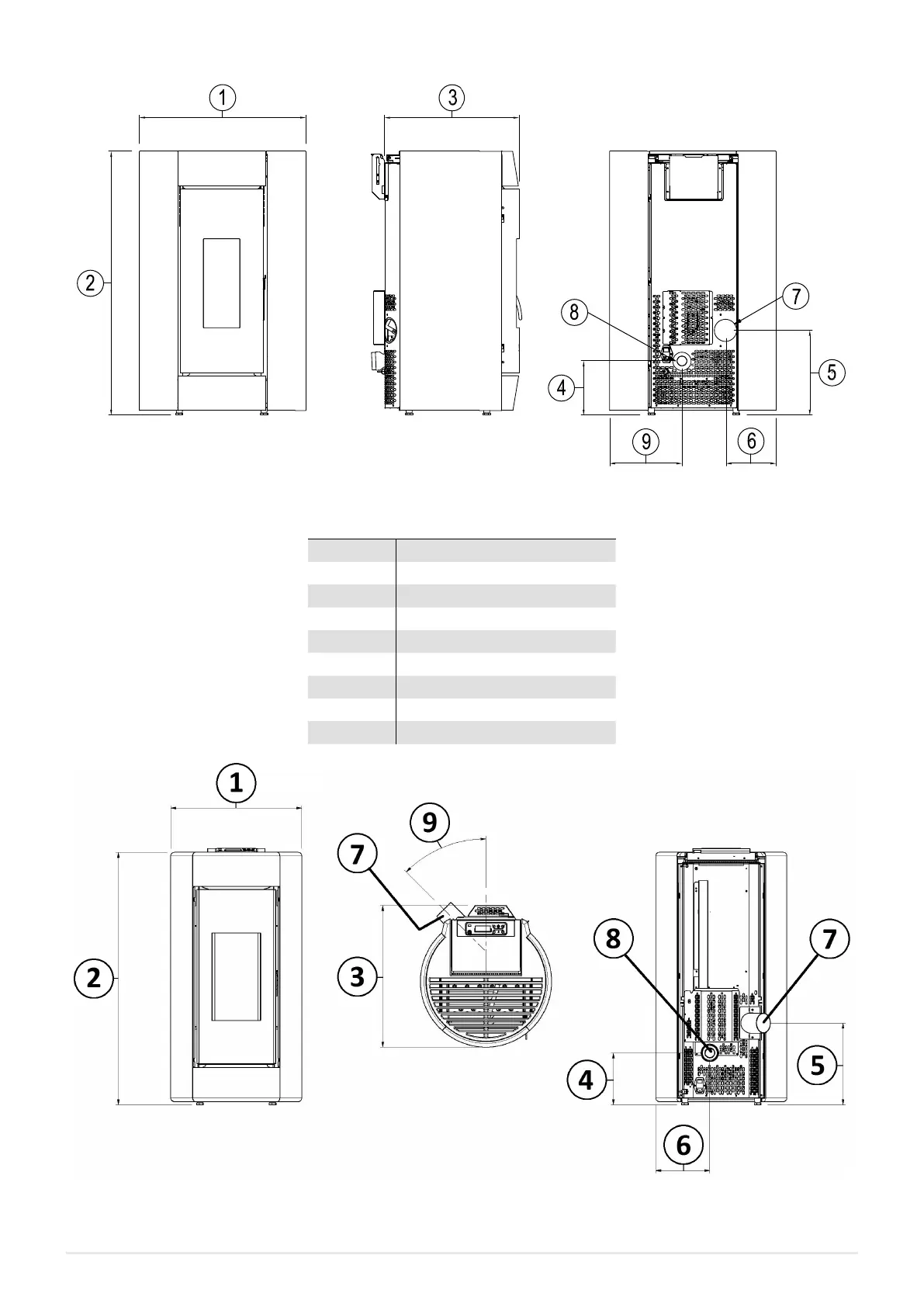

Fig. 20 - General dimensions: Elise
3
LEGEND Fig. 20
1 62 cm
2 100 cm
3 52 cm
4 23,8 cm
5 32,5 cm
6 22,5 cm
7 Exhaust fumes d.8 cm
8 Hole combustion air inlet d.6 cm
9 26,3 cm
Fig. 21 - General dimensions: Shell
3
