Cadel KRISS3 - Page 16

KRISS
3
- TECNA
3
- EVO
3
- ELISE
3
- SHELL
3
- CRISTAL
3
- GLASS - VERVE AT - PRETTY AT - TITANIA AT - VENERE AT - BREEZE AT
16
LEGEND Fig. 21
1 55,9 cm
2 100,8 cm
3 55,9 cm
4 19,4 cm
5 32,4 cm
6 21,5 cm
7 Exhaust fumes d.8 cm
8 Hole combustion air inlet d.6 cm
9 45°

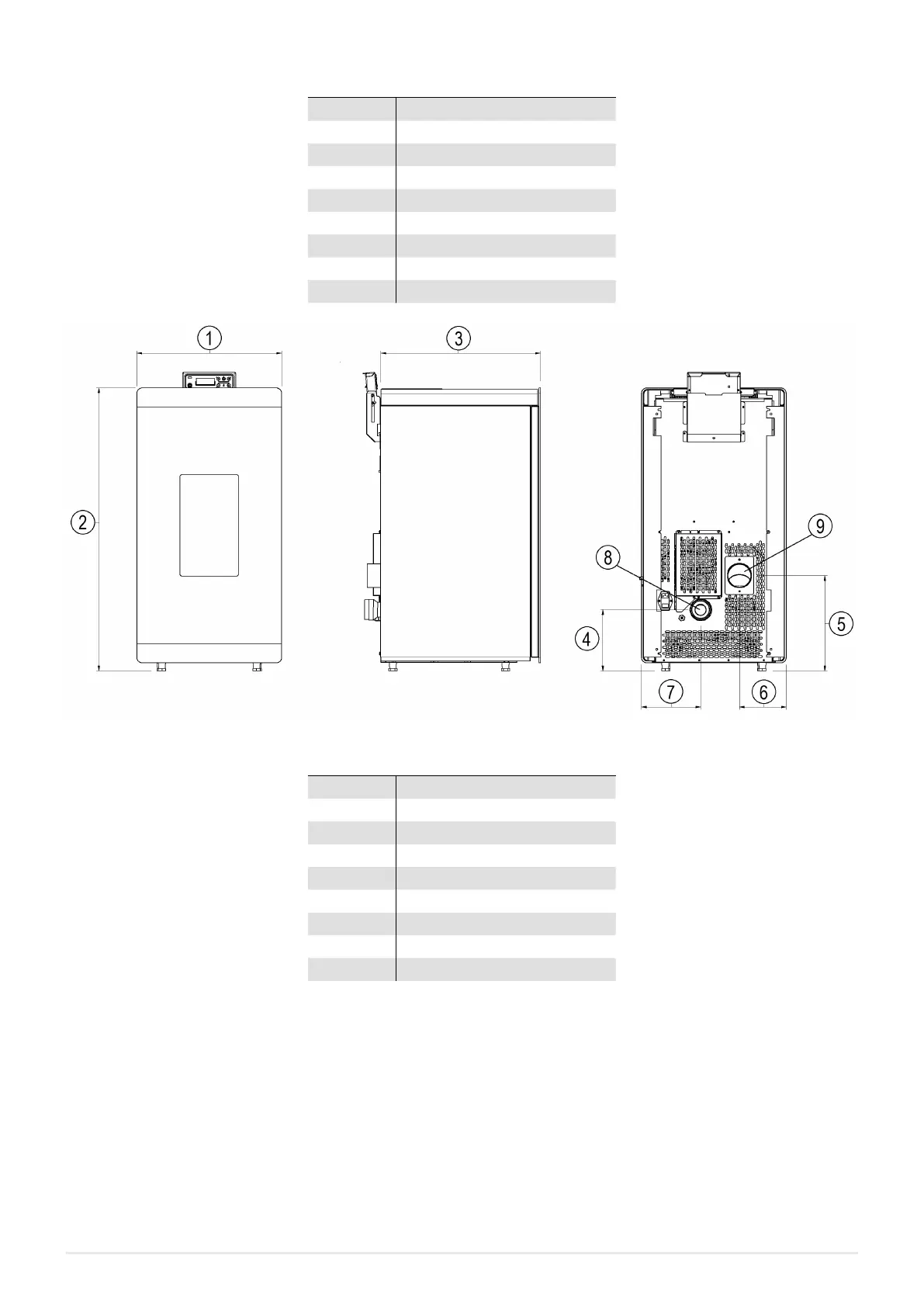

Fig. 22 - General dimensions: Glass
LEGEND Fig. 22
1 49,2 cm
2 96,2 cm
3 54,6 cm
4 23,8 cm
5 32,5 cm
6 17,3 cm
7 21,5 cm
8 Hole combustion air inlet d.6 cm
9 Exhaust fumes d.8 cm
