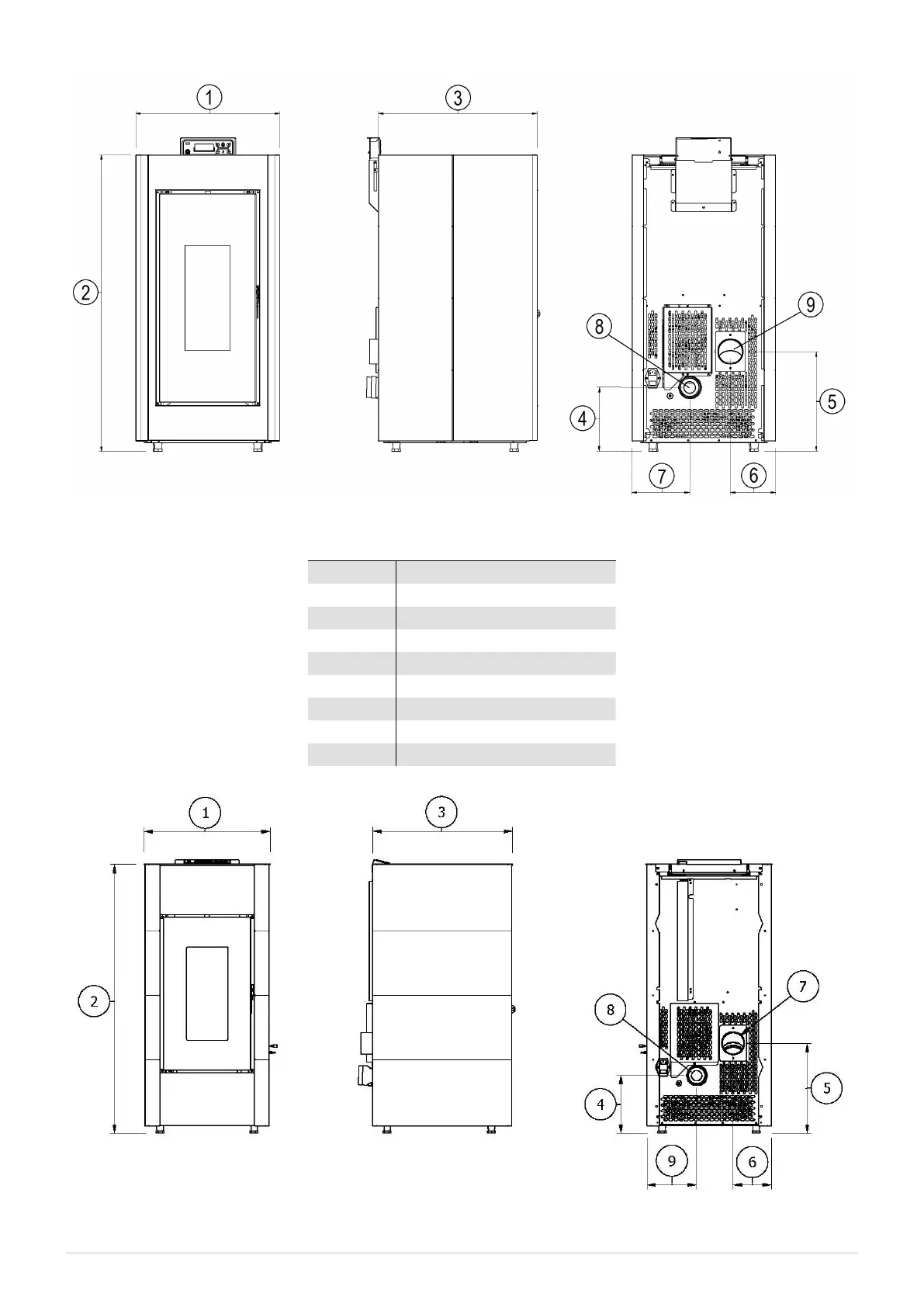

Fig. 23 - General dimensions: Verve Airtight
LEGEND Fig. 23
1 46,6 cm
2 106 cm
3 51,6 cm
4 23,8 cm
5 32,5 cm
6 17,3 cm
7 21,5 cm
8 Hole combustion air inlet d.6 cm
9 Exhaust fumes d.8 cm
Fig. 24 - General dimensions: Cristal
