CAME FAST KIT User Manual

9

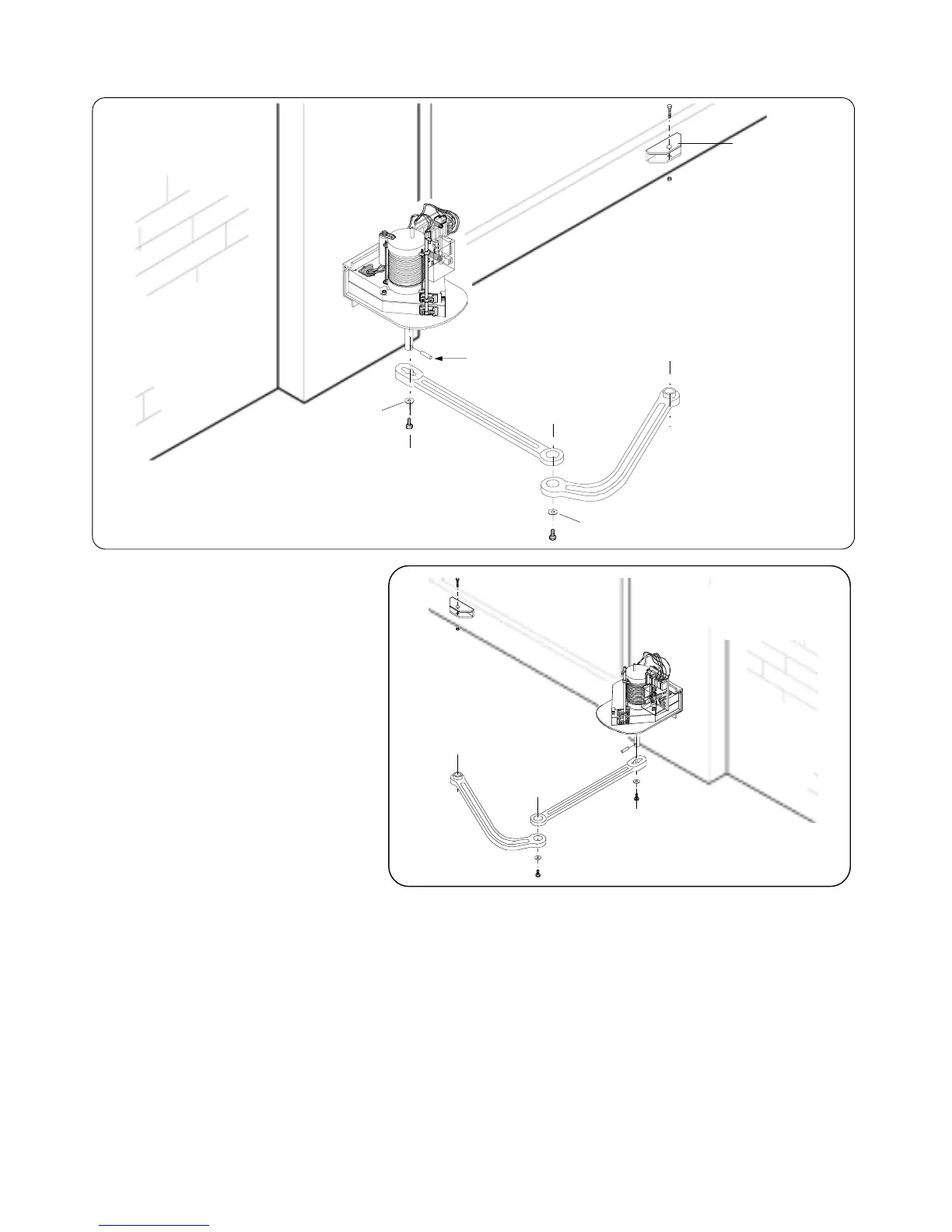

3.2 - Installing drive arms
Insert the Ø10x14 pin and the straight arm into the shaft of the gearmotor and secure it with the
M10x14 screw and 10x35 washer. Lubricate the pin of the straight arm. Join and secure the two arms
with the M6x10 screw and 6x24 washer. Release the gearmotor and fix the curved arm to the bracket
“A” with the M12x40 screw and the M12 nut, checking it is free moving. For application on the right-
hand side see fig.2.
M6x10M6x10
M6x10M6x10
M6x10
M12x40M12x40
M12x40M12x40
M12x40
M12M12
M12M12
M12
6x24 6x24
6x24 6x24
6x24
10x35 10x35
10x35 10x35
10x35
M10x14M10x14
M10x14M10x14
M10x14
Pin
10x40
Bracket A
Fig. 2
