CAME FAST KIT User Manual

3
1.1 - Requirements

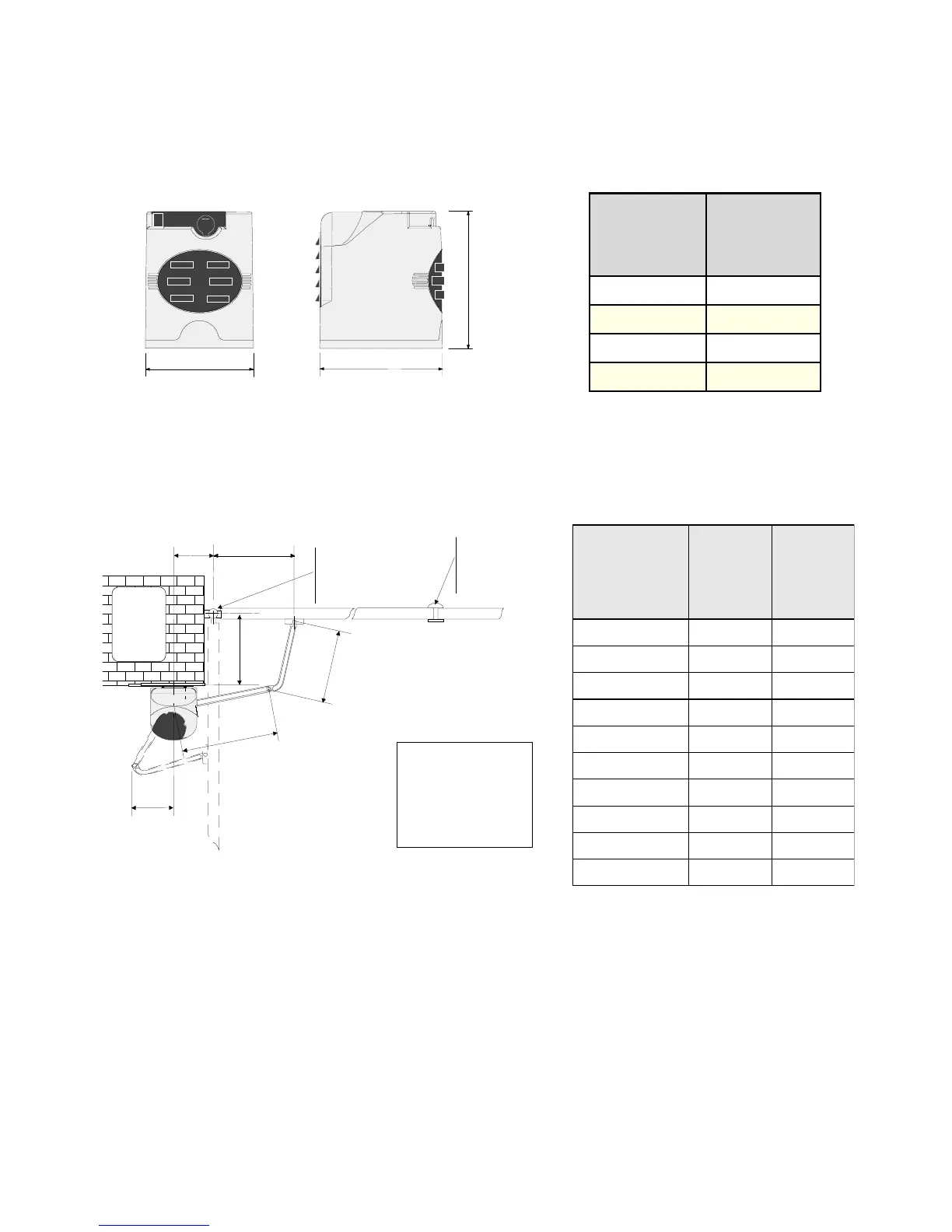

EXTERNAL DIMENSIONS AND OPERATING LIMITS
BEFORE INSTALLING...
Before proceeding with the installation of the automation, check the following:
- the structure of the door must be sufficiently sturdy, the hinges must be efficient and there must be
no friction between fixed or mobile parts;
- the path of the electrical cables must be made according to the control and safety requirements (see
the system type);
- there must be a centre stop firmly secured in the ground for the gates to close onto to prevent the
gate overextending,
Width of gate wing Weight of gate wing
1 m 300 Kg
1,5 m 250 Kg
2 m 215 Kg
2,3 m 200 Kg
194 mm
218 mm
245 mm
Opening angle
A B
90° 137–210 0
90° 137–205 50
90° 137–200 75
90° 137–195 100
90° 137–190 125
90° 137–185 150
90° 137–180 175
90° 137–175 200
110° 180–210 0
110° 200–205 50
Hinge
Mechanical stop
Pilastro
Pillar
Piller
Pleifer
Pilar
430A
B
330
330
i
i = 240 mm. max
with 90° opening angle
Pillar
