CAME FAST KIT - STAGE 2 WIRING AND ELECTRICAL; 2.1 - Basic Cable Layout

6
STAGE 2
WIRING AND ELECTRICAL
2.1 - Basic Cable Layout
The power supply to the control panel should be live and protected in accordance with the 16th edition
electrical regulations. The supply should be rated at a minimum of 6 amps.
When installing low voltage cable around the gateway it is advised to put all low voltage cable in either
ducting or alkathene piping. All cable jointing should be carried out above ground.
All Came accessories can be wired 0.2m stranded cable (burglar alarm type). The tuned antenna
should be wired with coaxial cable (RG59).

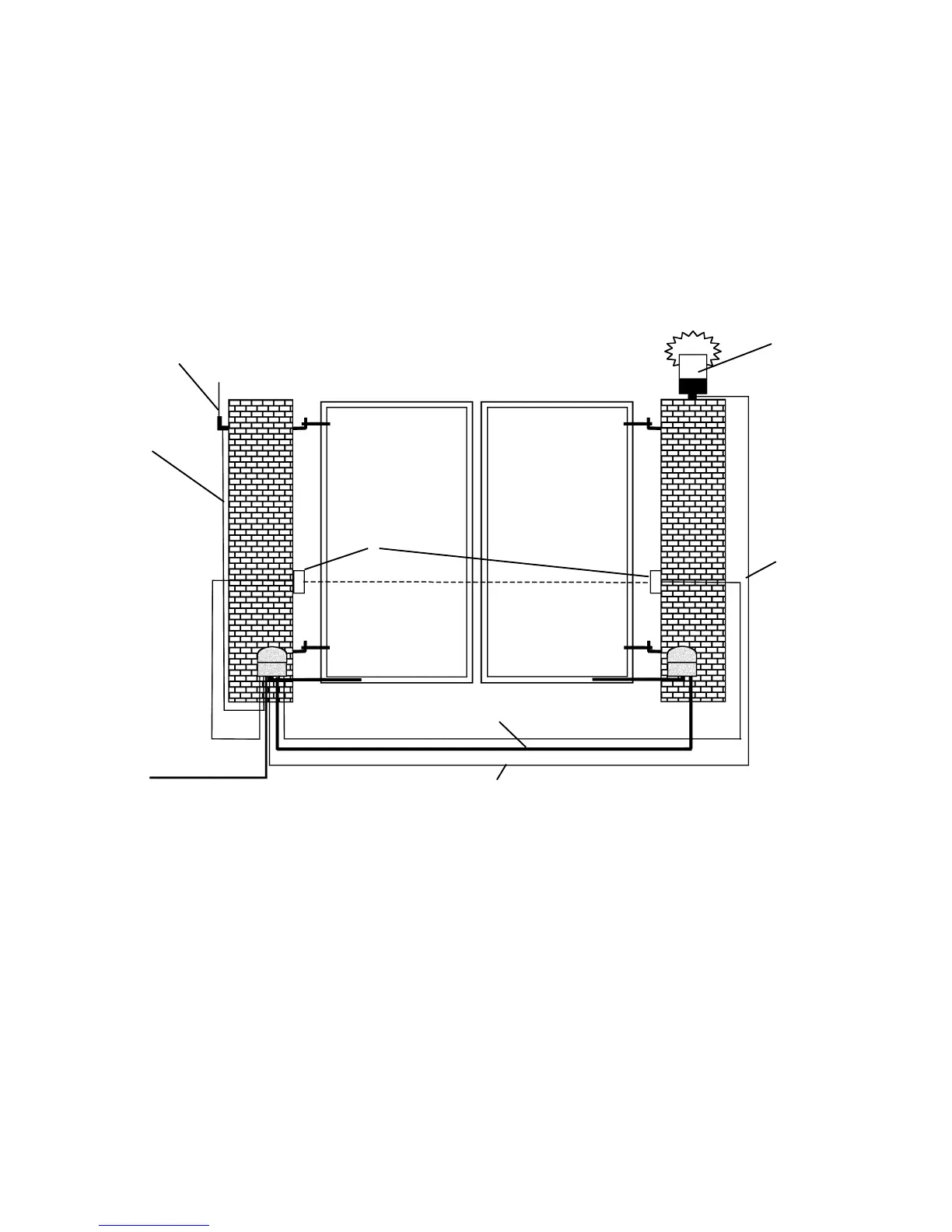

Tuned antenna
Coaxial cable
4 Core SWA 1.5m
Low voltage
Mains power
2 core
1mm
Flashing light
Safety
photocells
