CAME FAST KIT User Manual

16
STAGE 5
COMMISSIONING THE CONTROL PANEL

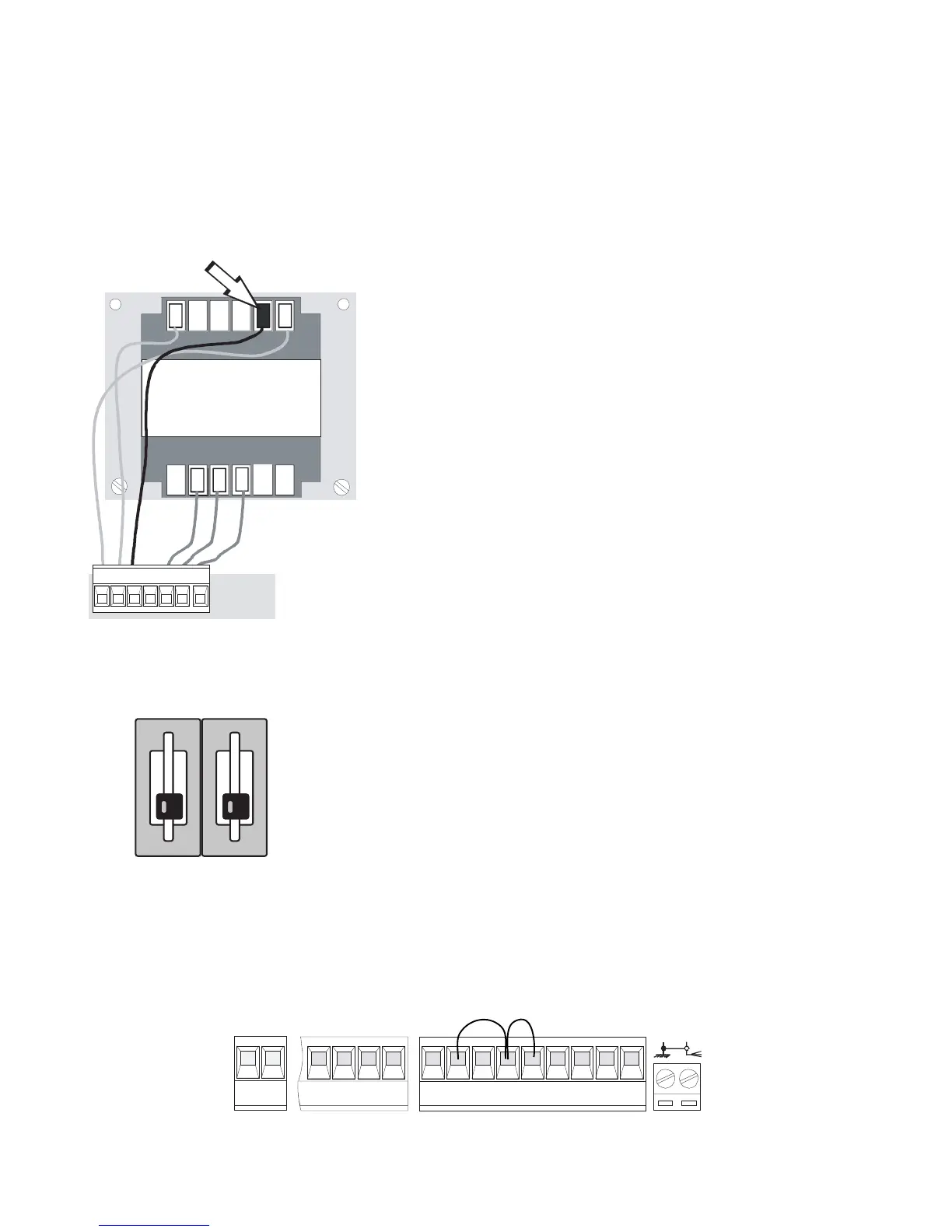

5.1 - Initial Wiring & Control Panel Set-Up
1. Connect power terminals L1 - L2
and a suitable earth (L2 being LIVE!)
2. Select the motor power setting on the
transformer to level 1 for
commissioning.
3. Select dipswitches 1 & 2 off for
commissioning.
4. Ensure hard wire link is fitted
between terminals 1 & 2 and
2 & C1.
•
••
••
•
••
•••
ON
OFF
WXY E
L1 L2
72C1 11 10 ES5ES1
