CAME FAST KIT - STAGE 6 TECHNICAL INFORMATION; 6.1 - Electrical Connections

24
STAGE 6
TECHNICAL INFORMATION

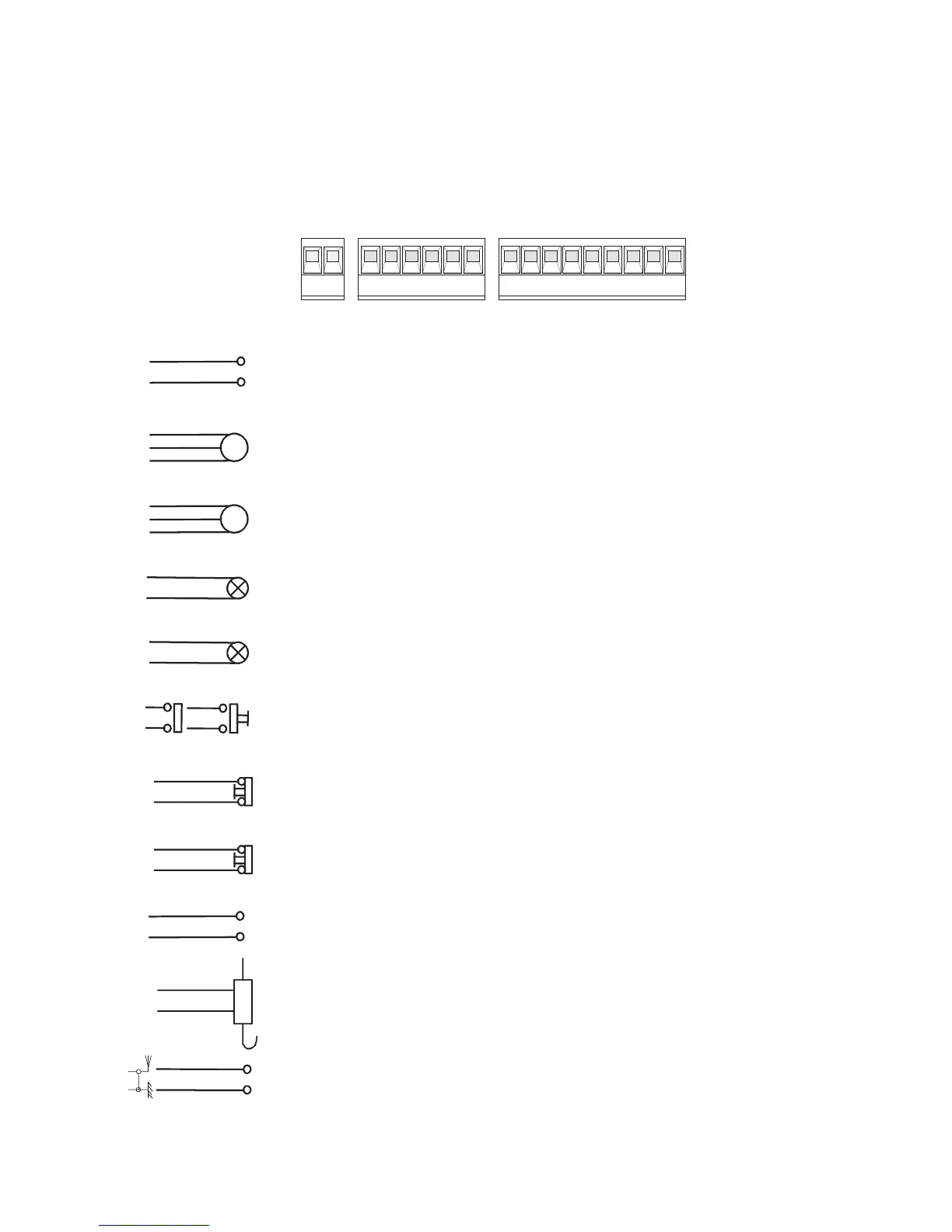

6.1 - Electrical Connections
W
E
U
W
V
L1
L2
230V (a.c.) power input
Motor 1 single-phase 230V (a.c.) delayed opening
Motor 2 single-phase 230V (a.c.) delayed closure
230V (a.c.) output in motion (e.g. flashing light - max. 25W)
(24V-3W max.) "gate-opened" signal lamp
(N.O.) contact radio and/or button for control (see dip 2)
Contact (N.C.) for re-opening during the closing
Pushbutton stop (N.C.)
24V (a.c.) Powering accessories max. 20W
X
W
Y
5
10
UVWXY EL1 L2 7 2C1 1110 ES5ES1
2
7
1
2
2
C1
10
11
(12V-15W max.) connection for electrically-actuated lock
Antenna connection
ES
ES
