STAGE 3
INSTALLATION

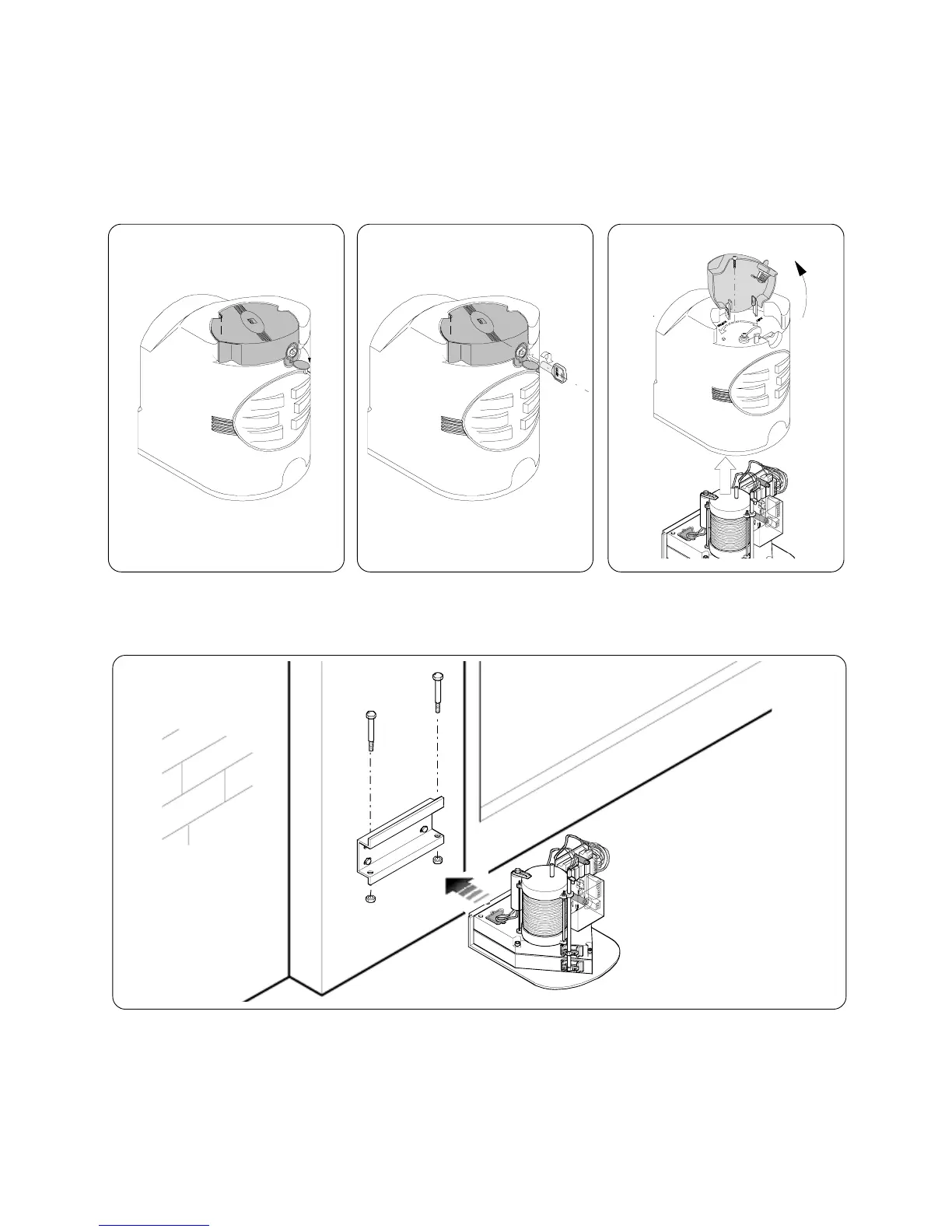

3.1 - Installing the Motors
Open the lock cover cap (1). Push the key in and turn clockwise (2). Raise the cover, loosen the
3.9x13 screw and remove the cover from the gearmotor unit (3).
Insert the gearmotor in the base plate, align with the 4 holes and secure it with the two M8x90 bolts
and nuts provided.
(1)
3,9x133,9x13
3,9x133,9x13
3,9x13
(1) (2) (3)
M8x90M8x90
M8x90M8x90
M8x90
M8M8
M8M8
M8
(4)
