CAME FAST KIT User Manual

12
STAGE 4
WIRING THE MOTORS

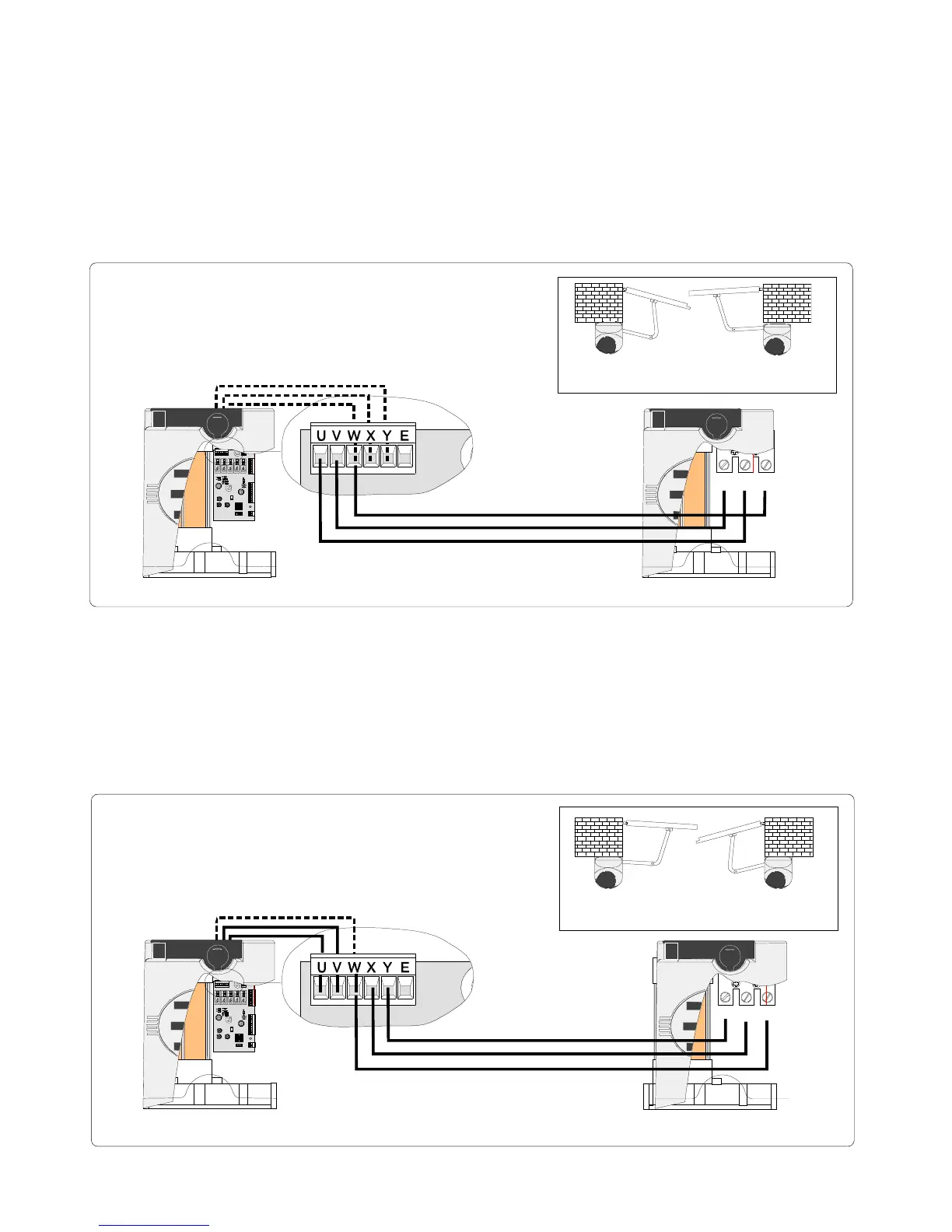

4.1 - Electrical connections to the ZF1 board
with pair of gates
For gates with a delayed-closure left-hand gate, prepare the connection as shown in figure 1.
For gates with a delayed-closure right-hand gate, prepare the connection as shown in figure 2.
NB: always mount the F7000 gearmotor on the left pillar (internal view).
F 7001F 7000
F 7000
SX
F 7001
DX
Fig/Abb. 1
U
VW
2143
PROG
F 7001
F 7000
Fig/Abb. 2
F 7000
SX
F 7001
DX
U
VW
2143
PROG
Fig.1
Fig. 2
