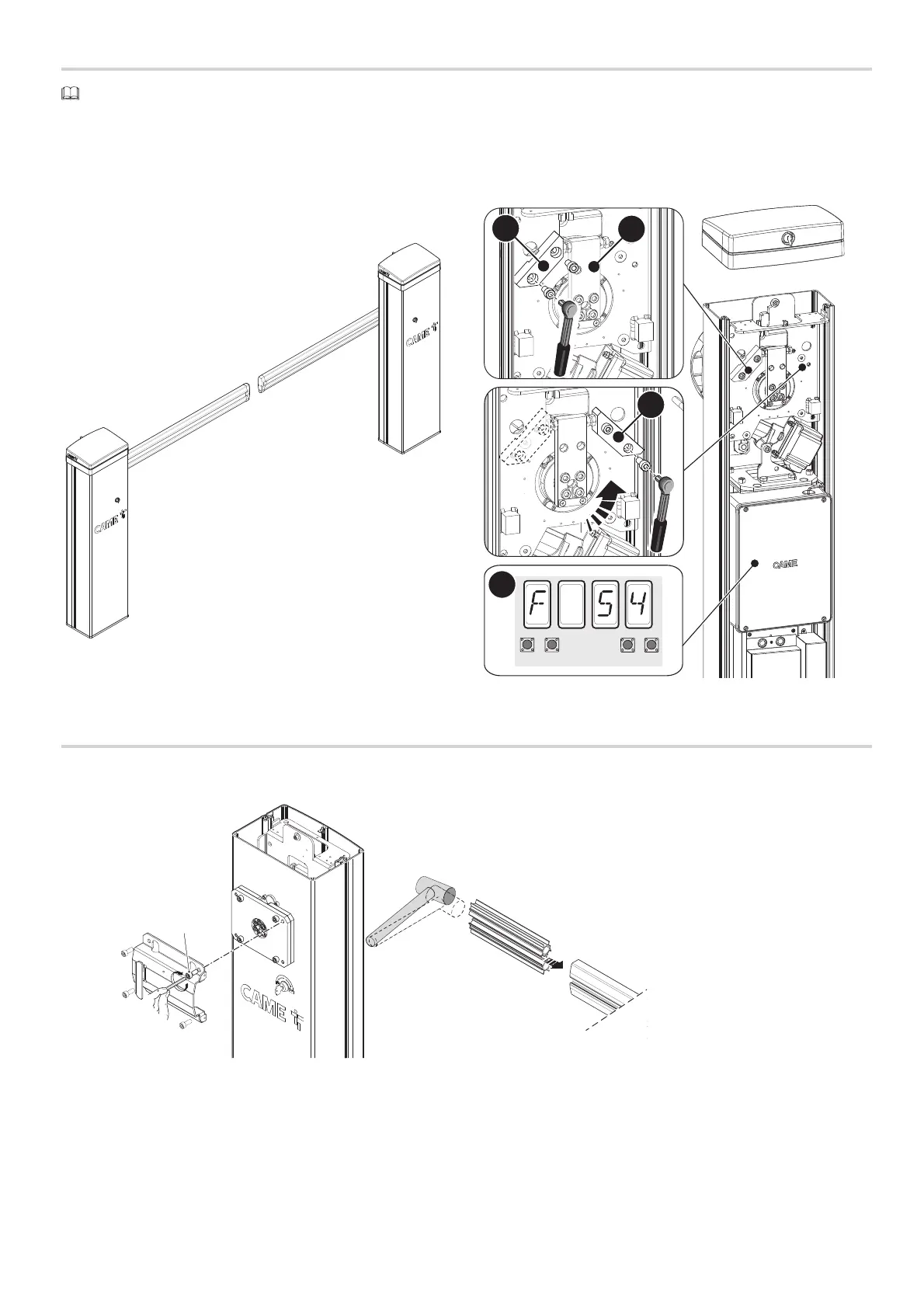

Change of the boom opening direction
The barrier is set up for installing on the left.
1 - Check that the lever arm is positioned vertically.
2 - Remove the mechanical stop.
3 - Attach the mechanical stop to the right of the lever arm.
4 - Edit the parameter in function [
TCN_FUNCTION_F54_Direzione_apertura_FUNCTION_XX_BARRIERS_NAMES_Name_3Opening direction].
SX
DX
ESC < > ENTER
1
3
4
2
Boom installation
Insert the reinforcement inside the boom.
Install the boom-attachment cover on the anchoring plate. Leave the screws slightly loose for easier fitting of the boom later.
UNI5931 M8x20
