p. 12 - Manual FA01332-EN - 04/2019 - © CAME S.p.A. - The contents of this manual may change, at any time, and without notice. - Original instructions

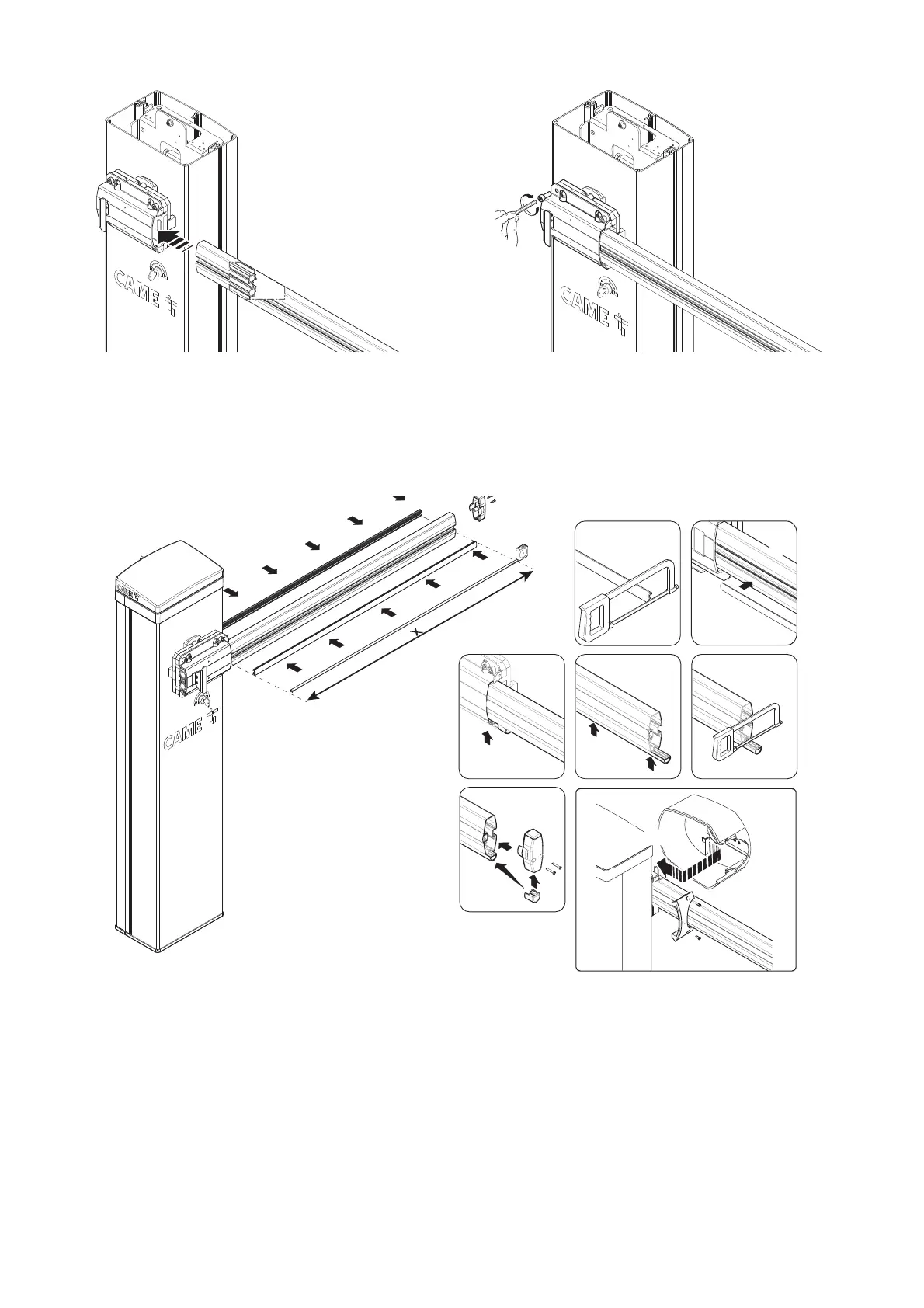

Fit the boom into the fastening flange
Tighten the screws firmly.
1 - Cut the slot cover profiles of the same size as the boom slot minus 10 millimeters.
2 - Insert the slot cover profiles in the appropriate grooves on both sides of the boom.
3 - Fit the rubber terminal cap into the corresponding housing
4 - Insert the anti-impact rubber profile into the groove, making it fit with the end cap.
5 - Cut the excess part of the profile, letting it protrude of 7 millimetres.
6 - Insert the end cap of the rubber profile into the groove of the boom closing cap. Use the screws to fasten the boom end cap.
7 - Fit the anti-shearing protective cover onto the boom-attachment cover and fasten it using the screws supplied.
❶
❷
❸
❹
❺
❻
⚠
❼
