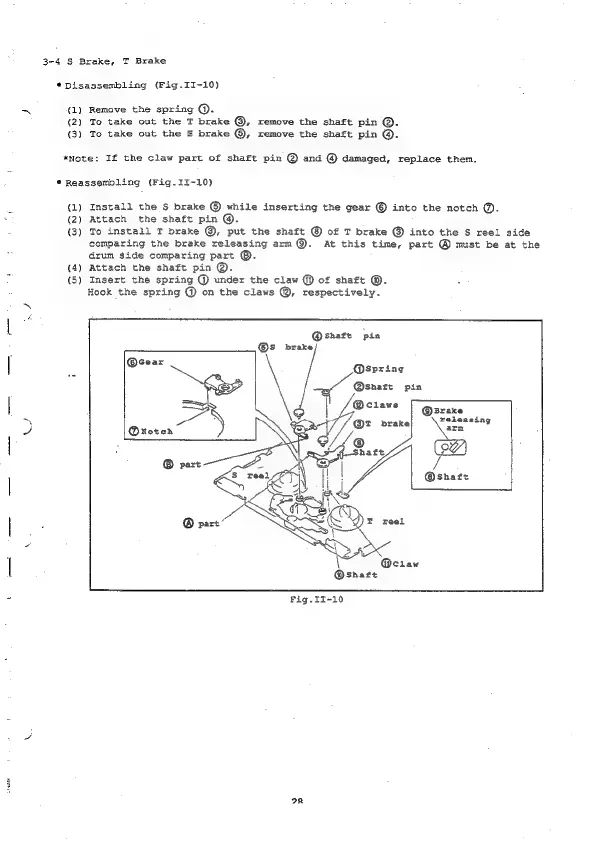

3-4 S Brake, T Brake
* Disassembling (Fig.II-10)
{1) Remove the spring @.
(2) To take out the T brake @, remove the shaft pin @.
(3) To take out the S brake ©, xemove the shaft pin @.
*Note: If the claw part of shaft pin @ and @ damaged, replace them.
* Reassembling (Fig.II~-10)
{1) Install the $ brake © while inserting the gear @® into the notch @.
(2) Attach the shaft pin @.
(3) To install T brake @, put the shaft of T brake @ into the $ reel side
comparing the brake releasing arm @. At this time, part @ must be at the
drum gide comparing part ©.
(4) Attach the shaft pin @.
(5) Insert the spring @ under the claw @ of shaft @. r
Hook the spring @ on the claws @, respectively.
Shaft pin
P
@Sspring
@snaft pin
@Brake
releasing
Nira
Fig.1I-10
