3-5 LB Brake, LB Lever
* Disassembling (Fig.II-10)
(1) To take off the TL plate @, remove the screw @.
(2) To take off the LB brake @, remove the shaft pin ©.
(3) To take off the LB lever ©, remove the shaft pin ©.
Se eer
*Note: If the claw part of shaft pin © and © damaged, replace them.

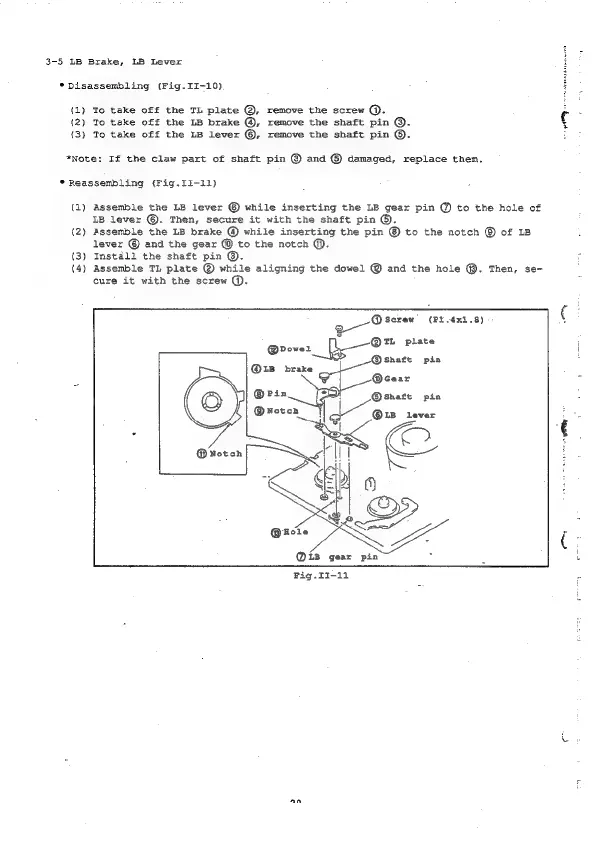

* Reassembling (Fig.II-11)
(1) Assemble the LB lever © while inserting the LB gear pin @ to the hole of
LB lever ©. Then, secure it with the shaft pin ©.
{2) Assemble the LB brake @ while inserting the pin to the notch © of LB
lever © and the gear @ to the notch @.
(3) Install the shaft pin ©.
(4) Assemble TL plate @ while aligning the dowel @ and the hole @®. Then, se-
cure it with the screw @.
@ Screw (P1.4xi.8) ¢
TL late
@dove2 @™
_@ Shaft pin
@Gear
@ Pin @shaft pin
@ Notch
@LB brake
@LB lever
