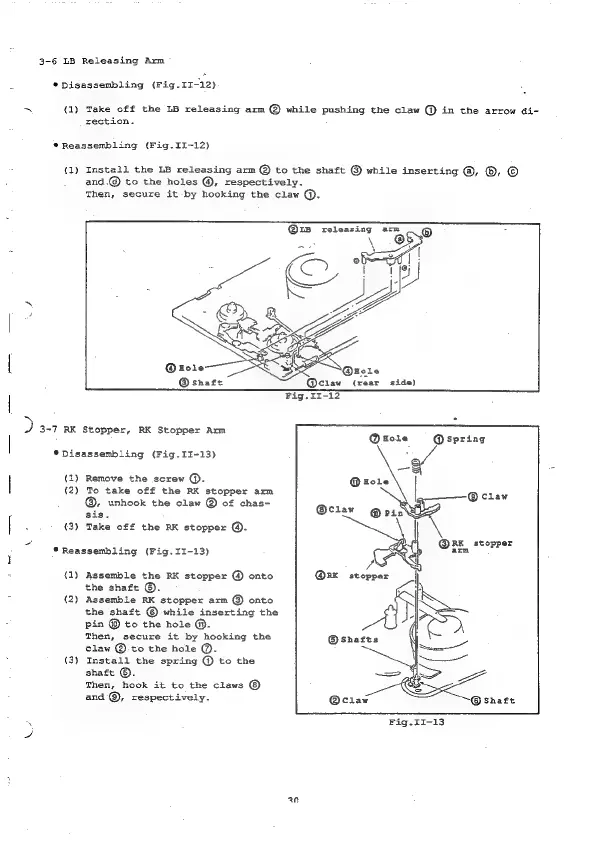

3-6 LB Releasing Arm
* Disassembling (Fig.II-12)
~ (1) Take off the LB releasing arm @ while pushing the claw @ in the arrow di-
rection.
* Reassembling (Fig.II-12)
(1) Install the LB releasing arm @ to the shaft © while inserting @, ©, ©
and.@ to the holes @, respectively.
Then, secure it by hooking the claw @.
@LB releasing arm
ae \
| ‘.
ie
N LA
@ Hole
@ shaft
‘@zole
(rear
side)
@ciaw
Fig.1i-12
> 3-7 RK Stopper, RK Stopper Arm
* Disassembling (Fig.II-13)
(1) Remove the screw @.
(2) To take off the RK stopper arm
@, unhook the claw ® of chas-
sis.
(3) Take off the RK stopper @.
* Reassembling (Fig.II-13)
(1) Assemble the RK stopper @ onto
the shaft ©.
(2) Assemble RK stopper arm @ onto
the shaft © while inserting the
pin to the hole (i).
Then, secure it by hooking the
claw @.to the hole @.
(3) Install the spring @ to the
shaft @.
Then, hook it to the claws
and @, respectively.
@shatts
an
@ spring
@® claw
RK stopper
Ox, rr
