DC10 E, DC20 E
DISASSEMBLING
55
<Note on Reassembling>
(1) After engaging the VCM FPC with the groove A and dowel B, provide soldering. Then, mount the IRIS MAIN FPC so that it is
secured with the rib C of the CCD Holder.
(2) Attach the UL Tape to the position indicated in the figure below.

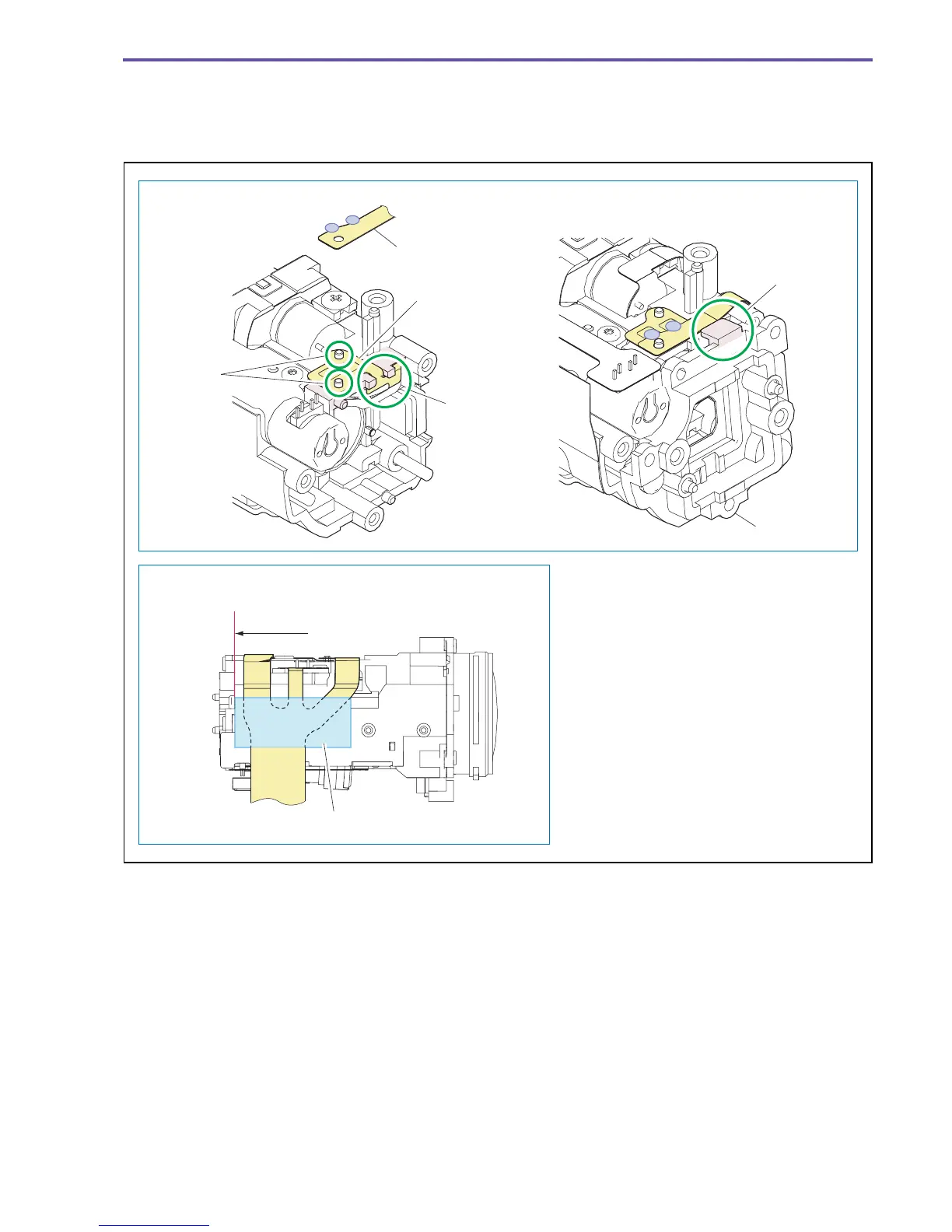

Fig. 52
Note on Reassembling (1)
Note on Reassembling (2)
UL Tape (9 × 20mm)
Rib C
VCM FPC
CCD Holder
IRIS MAIN FPC
Dowels B
Groove A
Attachment
reference
