Canon DC20 E - Separation of Camera Unit

DC10 E, DC20 E
DISASSEMBLING
16

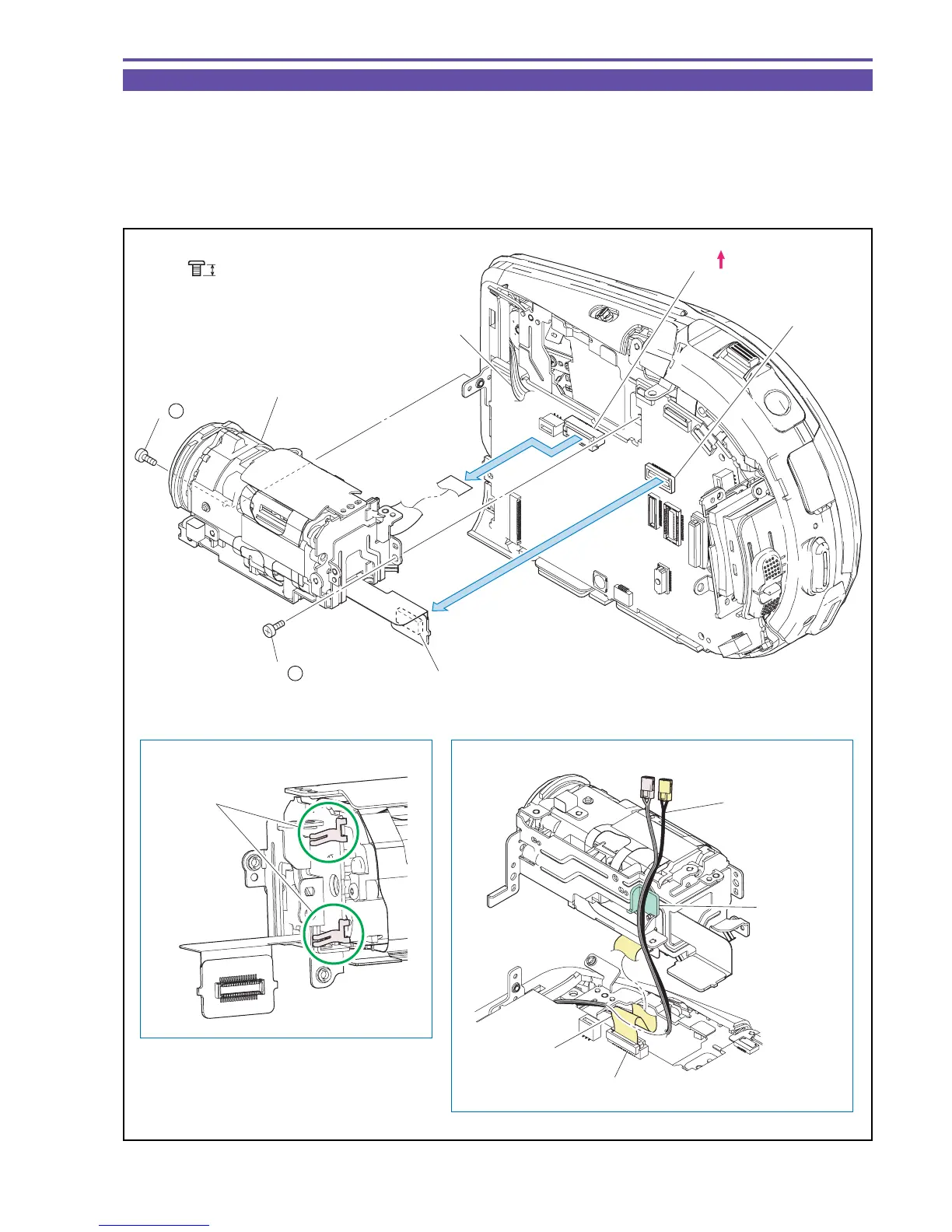

1-9 Separation of Camera Unit
(1) Remove the CN1000 and the CN1052 (CN1070 for DC10 E) (B to B), the CN1200, and two screws (a × 2) , and detach the Lens
Unit.
Note : Take care not to deform the CCD GND Plate.
<Note on Reassembling>
(1) Treat the Lens FPC and the Flash Cable as shown in the figure below.
Fig. 13
Metal
M1.7
a
2.5mm
Note
Note on Reassembling (1)
(1)
(1)
CN1200
CN1052 (DC20 E)
CN1070 (DC10 E)
(B to B)
Flash Cable
Lens Unit
CN1000
(B to B)
CCD GND Plate
(1) - a
(1) - a
Fold up the
Lens FPC.
CN1200
Flash Cable
ST Wire
Protector
