Canon DC20 E - COM-DC Level Adjustment

DC10 E, DC20 E
SERVICE MODE / ADJUSTMENT
39
5-8-3 COM-DC Level Adjustment
MODE Display of monochrome master
M. EQ. Oscilloscope
TP/TRIG. Extension connector - pin 18 (EVF COM DC) / TP signal (self TRIG)
SPEC. 2.30 ± 0.05 [V] (DC. P-P center of EVF COM to GND level)
Procedure)
(1) Carry out adjustment according to the table shown below.

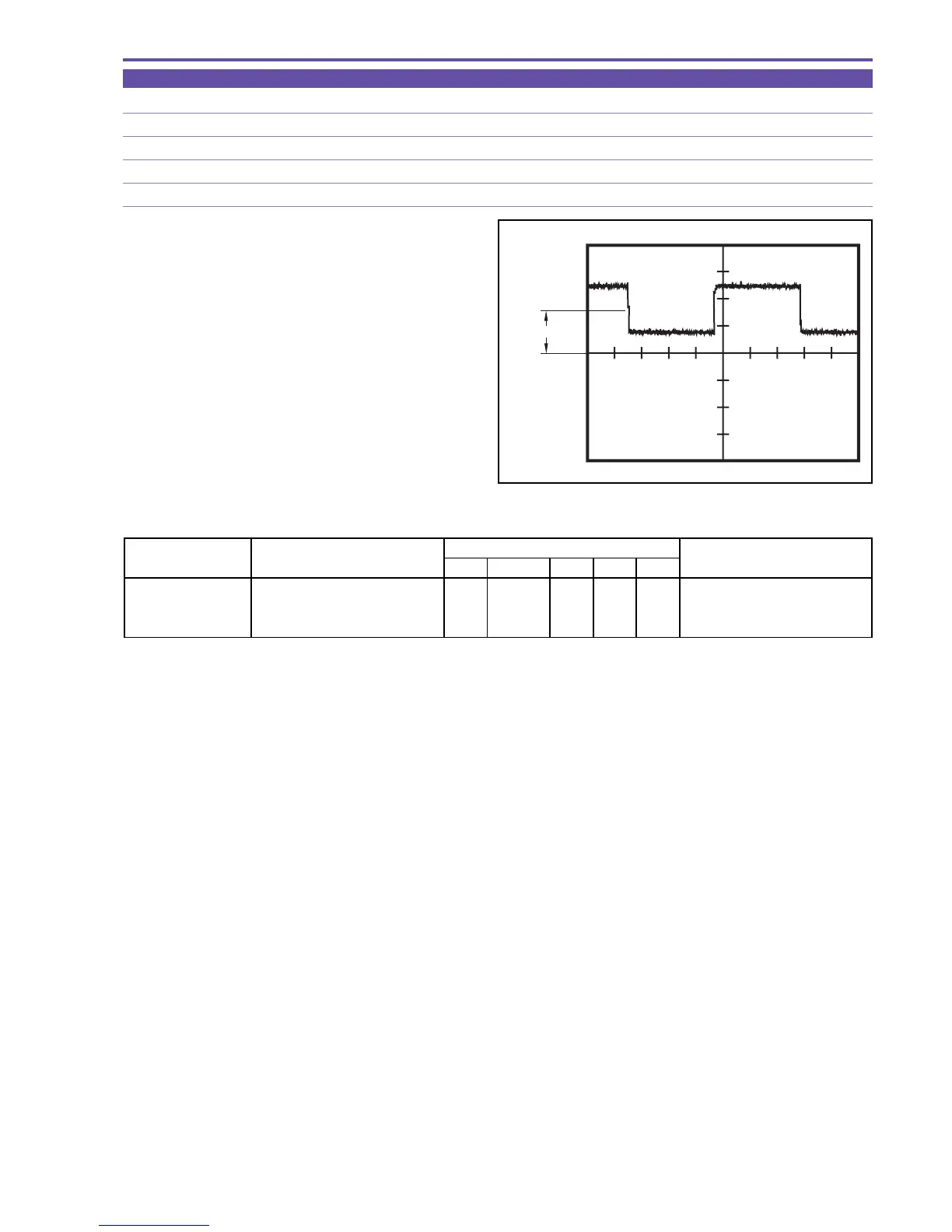

Fig. 26
2.30V ± 0.05V
CS Function MD ADDR DT
COM-DC Level 1) Make the setting shown at right
.
0 21 ST 0004 "ADJ" Start of setting
Ajustment 2) Perform storing.
↑↑
RD
↑
ADJ Completion of setting
(press the PAUSE button.)
STEP PROCEDURE
MONITOR
Microcomputer operation
