Canon DC20 E - How to Operate Wireless Remote Controller in Service Mode

DC10 E, DC20 E
SERVICE MODE / ADJUSTMENT
4
3-3 How to Operate Wireless Remote Controller in Service Mode
(1) To use the wireless remote controller in the service mode, set it at Remote controller code 2.
* To changeover to Remote controller code 2, press the “Remote controller setting” and “Zoom T” keys simulta-
neously for 2 sec.
* The remote controller furnished with the instrument cannot transfer to the service mode. For this purpose, use the
remote controller (ex. WL-D84) furnished with a conventional product.

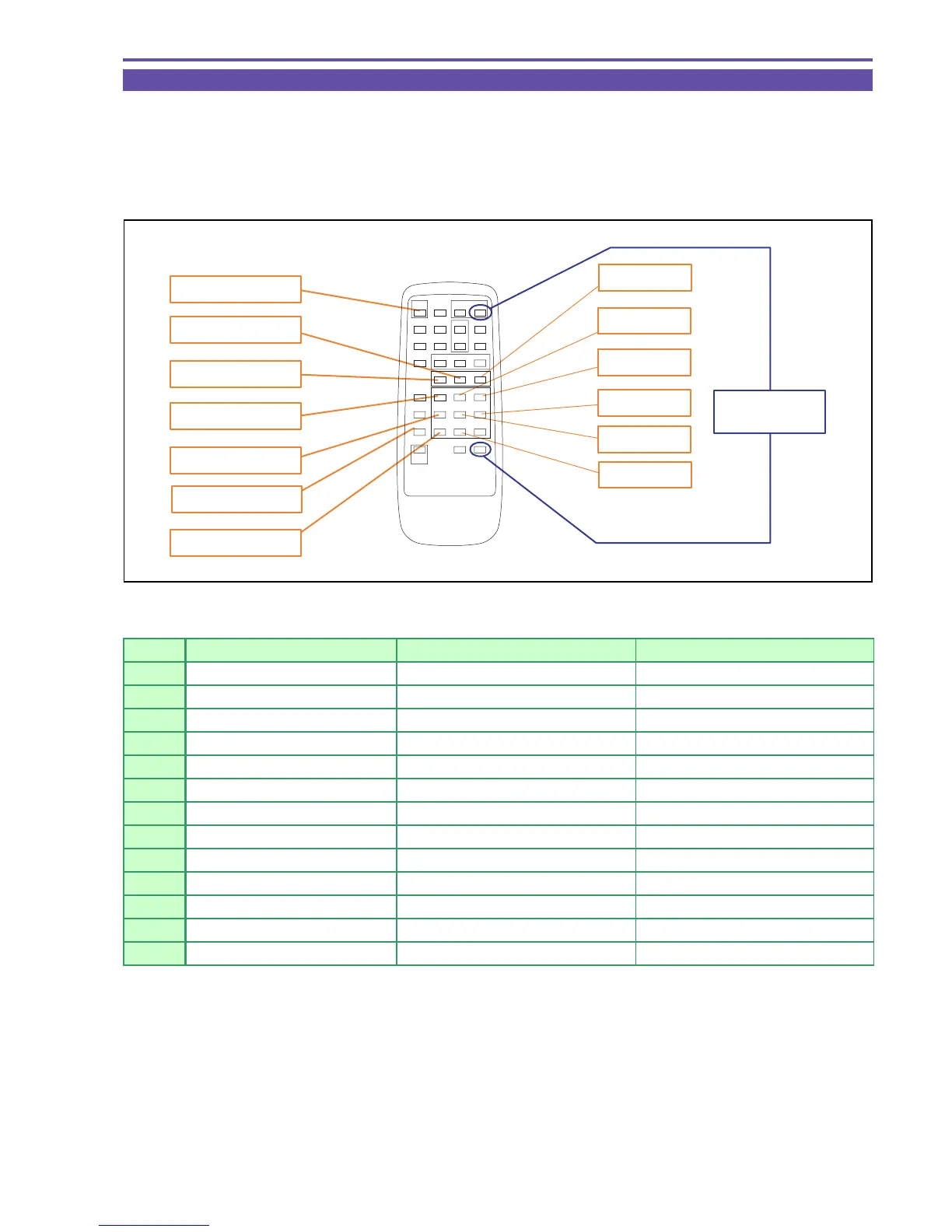

Fig. 5
2. SLOW
1. DUBBING
5. SEARCH -
4. SEARCH +
8. FF
11. PLAY
6. FRAME +
12. STOP
10. SEARCH SELECT
9. REW
7. FRAME -
13. PAUSE
Remote Controller
Code 2 setting
WL-D84
3. START/STOP
No. Key Designation (in Normal Mode) Key Designation (in Service Mode) Function
1 DUBBING SERVICE MODE Change over to service mode
2 SLOW NORMAL MODE Change over to normal mode
3 START/STOP CS+ Increases CS by 1.
4 SEARCH + FUNCTION + Increases FUNCTION by 1.
5 SEARCH - FUNCTION - Decreases FUNCTION by 1.
6 FRAME + HIGH ADDRESS + Increases HIGH ADDRESS by 1.
7 FRAME - HIGH ADDRESS - Decreases HIGH ADDRESS by 1.
8 FF ADDRESS + Increases ADDRESS by 1.
9 REW ADDRESS - Decreases ADDRESS by 1.
10 SEARCH SELECT MODE SELECT Change over to RD/WR mode
11 PLAY DATA + Increases DATA by 1.
12 STOP DATA - Decreases DATA by 1.
13 PA USE STORE Def ines/w rites DA TA .
