Canon DC20 E - Page 66

DC10 E, DC20 E
DISASSEMBLING
5
<Note on Reassembling>
(1) Attach the R Upper Cover as shown in the figure below.
(2) Attach the Center Cover Lid as shown in the figure below.

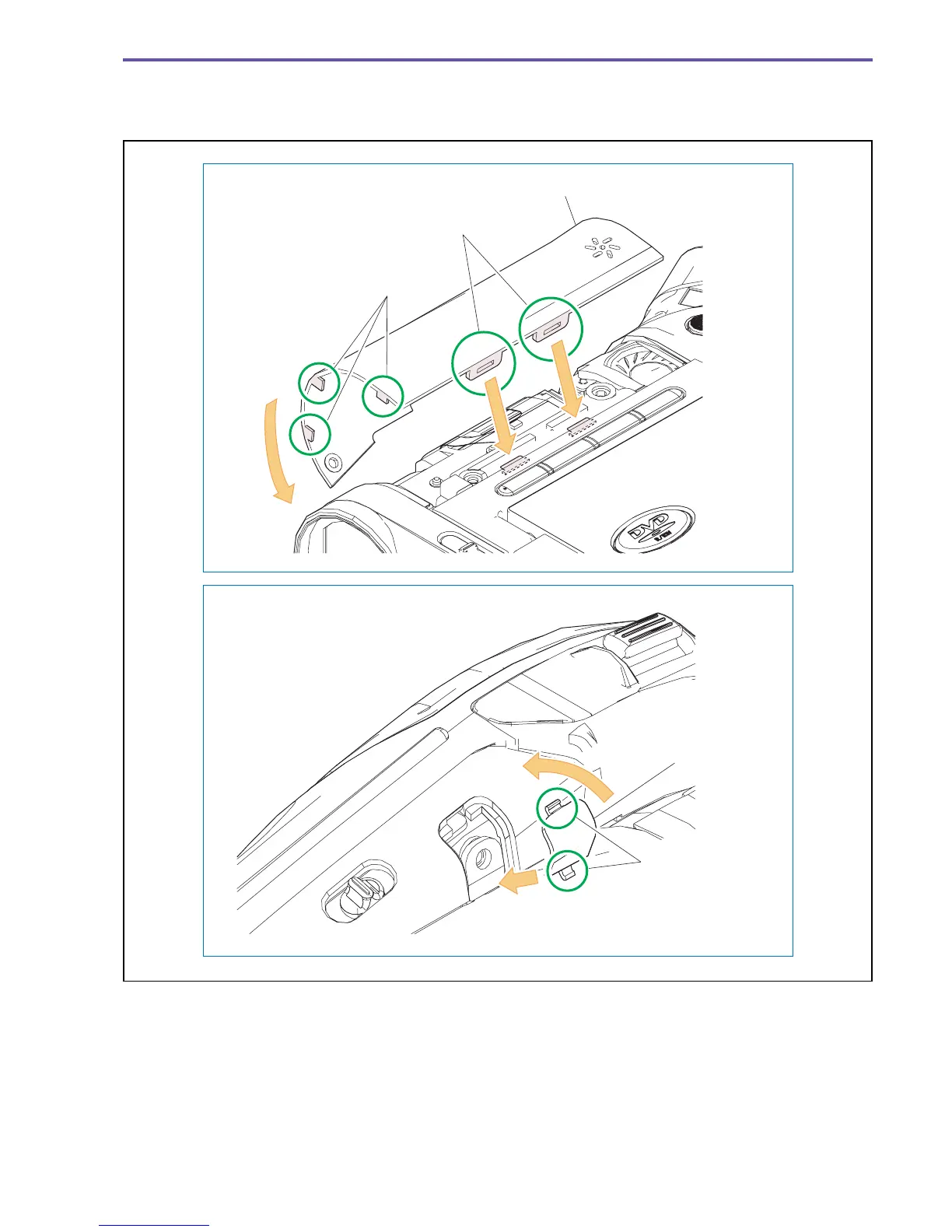

Fig. 2
Note on Reassembling (1)
Note on Reassembling (2)
Insert two claws D first.
Insert claw C on the lower side first.
R Upper Cover
Center Cover Lid
Claws D
Claws C
