DC10 E, DC20 E
DISASSEMBLING
7
<Note on Reassembling>

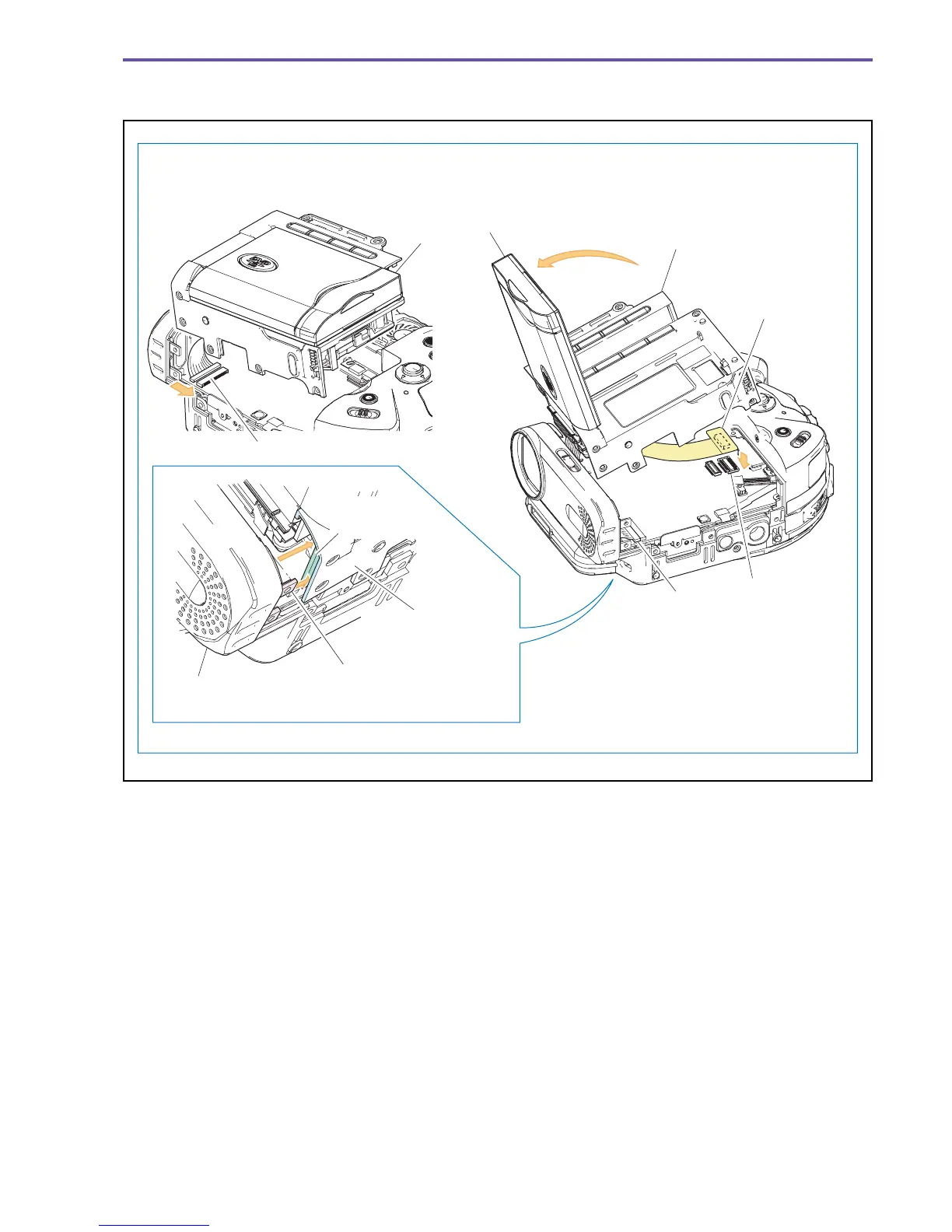

(1) Attach the R-LCD Unit as shown in the figure below.
Note on Reassembling (1)
CN901
LCD
1. Close the LCD and attach CN901.
2. After attaching the CN901, open the LCD and attach
it to the Main Unit.
Open
Insert between the bottom surface
of R-LCD Unit and the Base Plate
of Hinge Ass'y.
Front Cover
R-LCD Unit
Hinge Ass'y
Base Plate
R-LCD Unit
LCD
CN901
CN104 (B to B)
CN100 (B to B)
Fig. 4
