Canon DC20 E User Manual

DC10 E, DC20 E
DISASSEMBLING
21
<Note on Reassembling>
(1) Attach the Main Spacer to the position indicated in the figure below.
(2) Ensure that the GYRO FPC and the FLASH FPC are installed in the direction shown in the figure.
(3) Attach the UL Tape to the position indicated in the figure below.

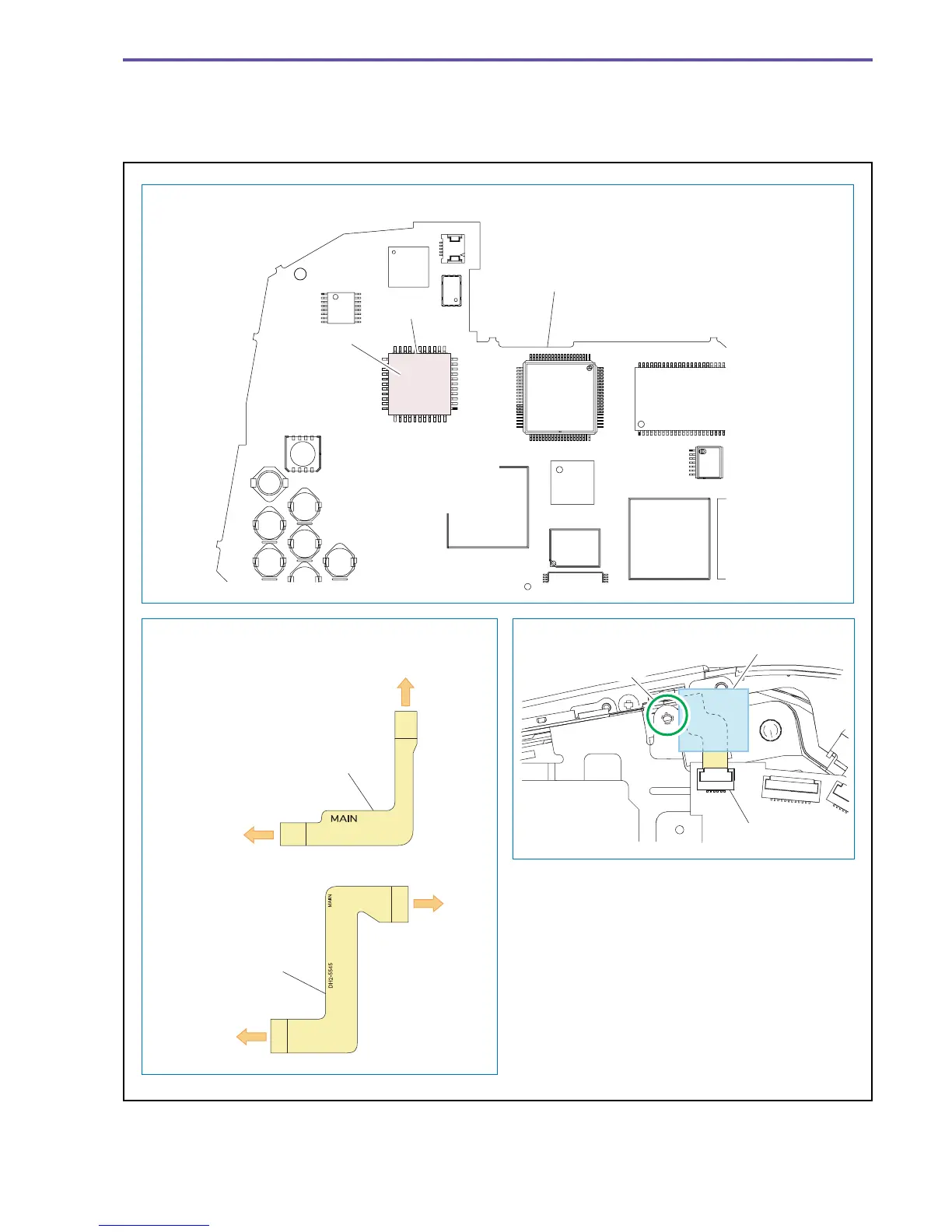

Fig. 18
Note on Reassembling (3)
Note on Reassembling (1)
Note on Reassembling (2)
GYRO FPC
Main Spacer
MAIN PCB
IC100
GYRO PCB
CN1601
MAIN PCB
CN1201
MAIN PCB
CN103
FLASH PCB
CN 500
FLASH FPC
CN107
UL Tape (9 × 10mm)
Attach the Main Spacer
to the IC100 in alignment
with the center position.
Allowable attachment
deviation: ±0.5 mm
Screw hole should
not be covered.
