Canon DC20 E - Page 91

DC10 E, DC20 E
DISASSEMBLING
30
1-17 Disassembly of Front Cover Unit - 3
(1) Detach the Spring.
(2) Detach the Barrier Bottom Holder, the Barrier Arm Ass'y, and the Lens Barrier.

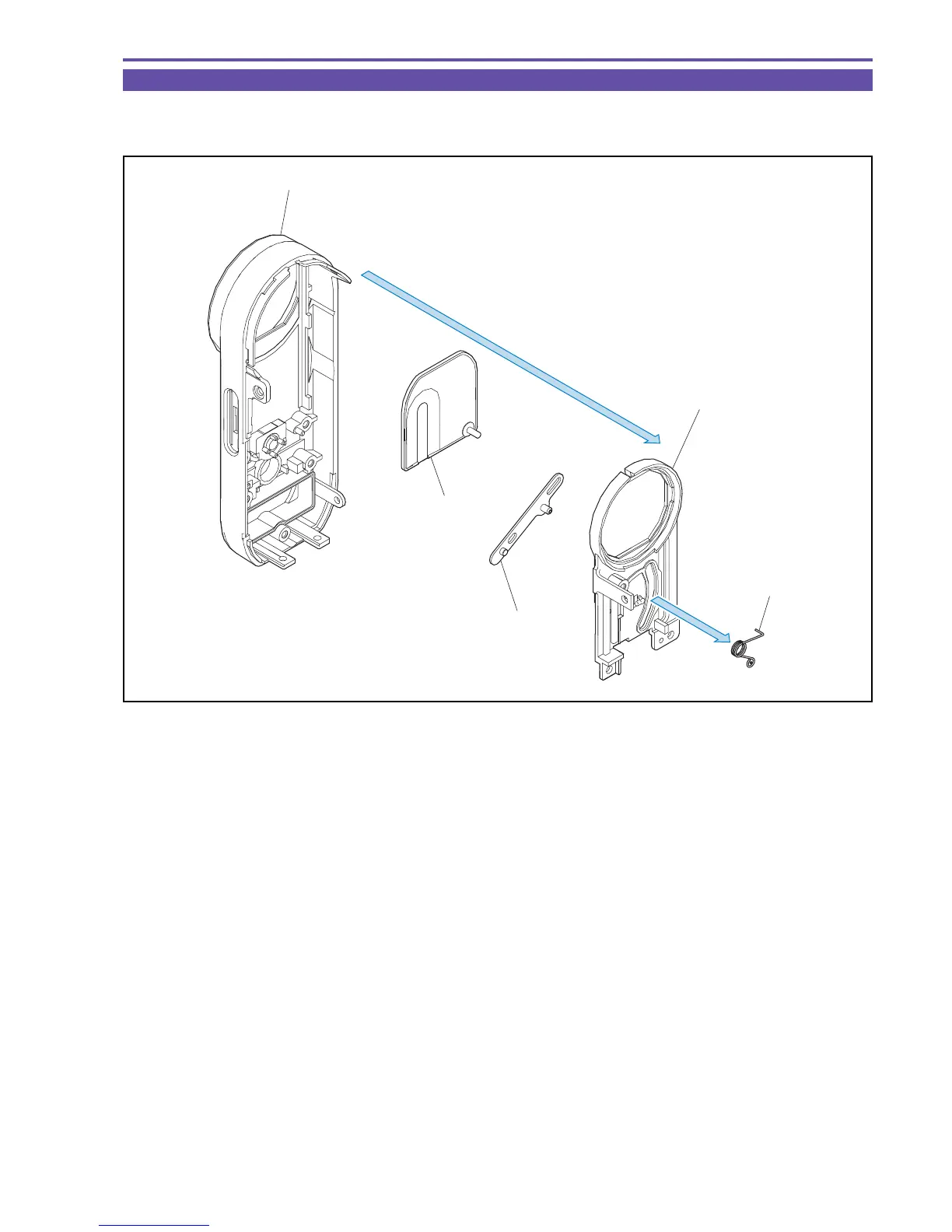

Fig. 27
(2)
(1)
Spring
Barrier Arm Ass'y
Lens Barrier
Barrier Bottom Holder
Front Cover Ass'y
