ASSEMBLY & DISASSEMBLY NOTES
I NOTE
: Eyepiece
Unit
Removal
Part 3: Repair Information
There
are
two
different eyepiece
units,
for
cameras
with
and
without
Eye-control
AF.
When
removing
the
Eye-controlled
Focus
Eyepeice,
the
main
flex
comb
connector
must
be
unsoldered.
Eye-controlled Focus Eyepeice
Normal Eyepeice

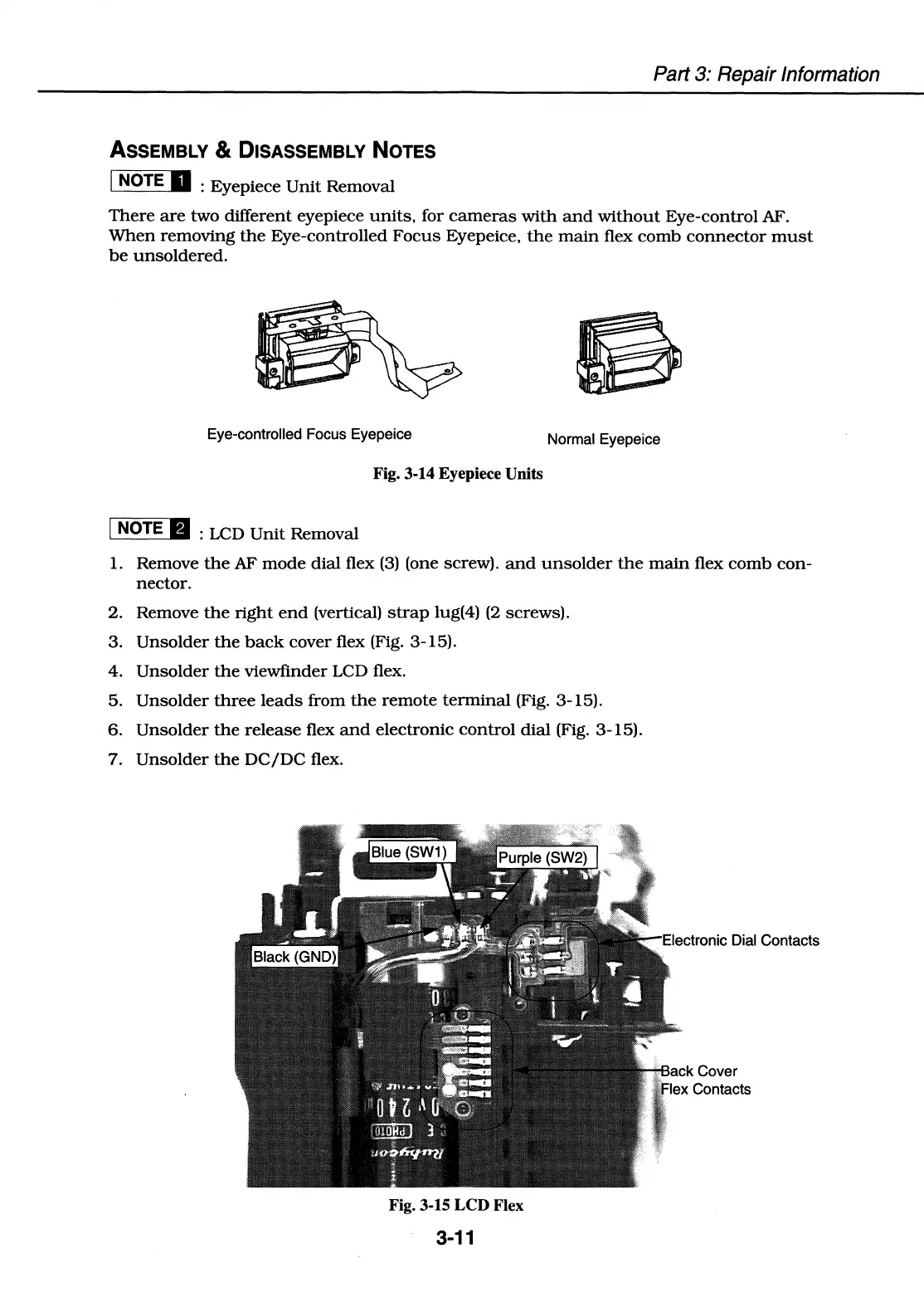

Fig. 3-14 Eyepiece Units
I NOTE
II
: LCD
Unit
Removal
1. Remove
the
AF
mode
dial
flex
(3)
(one screw).
and
unsolder
the
main
flex
comb
con-
nector.
2. Remove
the
right
end
(vertical)
strap
lug(4)
(2
screws).
3.
Unsolder
the
back
cover flex (Fig. 3-15).
4.
Unsolder
the
viewfinder LCD flex.
5.
Unsolder
three
leads
from
the
remote
terminal
(Fig. 3-15).
6.
Unsolder
the
release
flex
and
electronic
control
dial
(Fig. 3-15).
7.
Unsolder
the
DC/DC
flex.
Fig. 3-15 LCD Flex
3-11
, ack Cover
I lex Contacts
,,,
