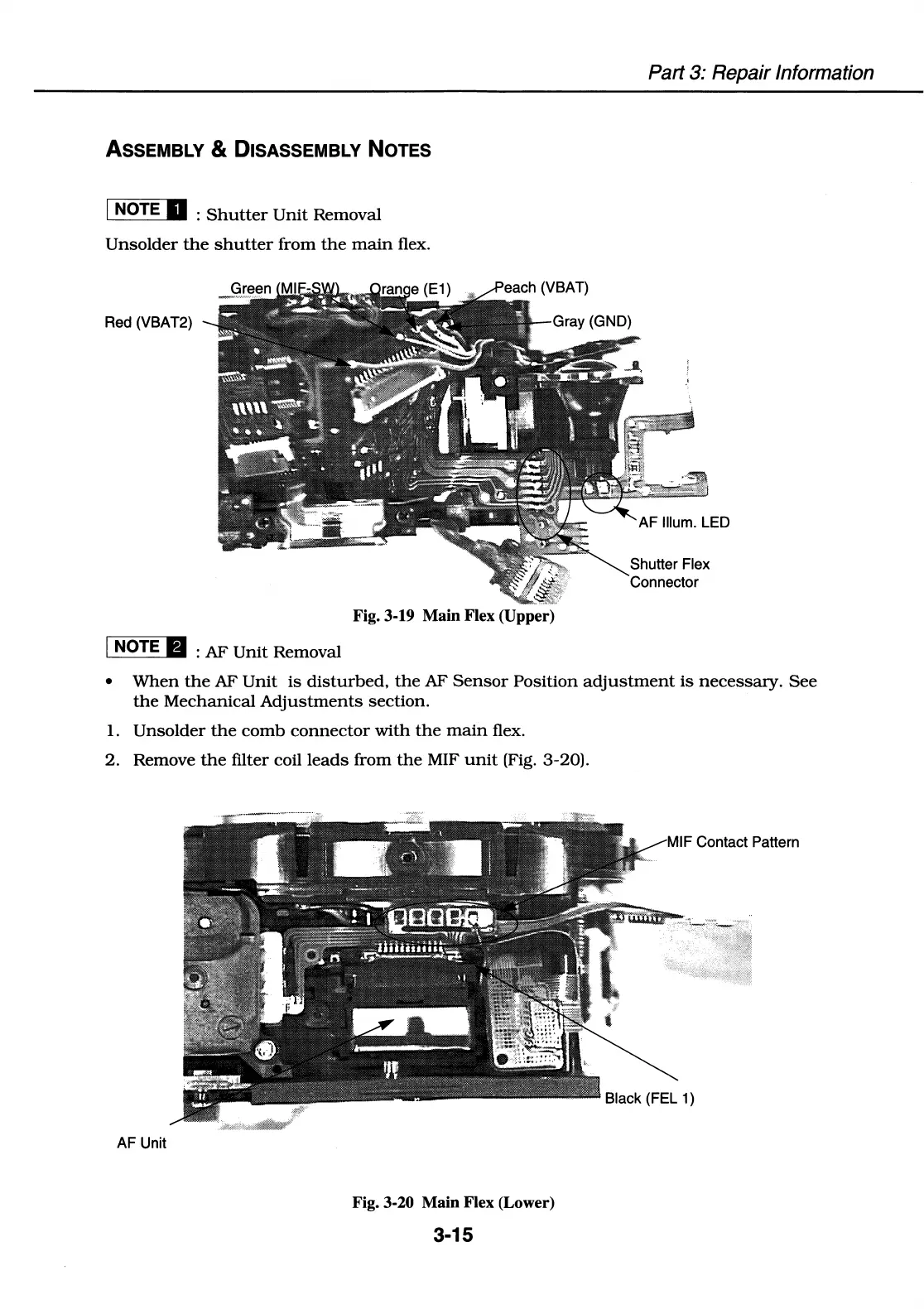

ASSEMBLY & DISASSEMBLY NOTES
I NOTE II : Shutter Unit Removal
Unsolder the shutter from the main flex.
Red (VBAT2)
Fig. 3-19 Main Flex (Upper)
I NOTE II : AF Unit Removal
Part 3: Repair Information
• When the AF Unit is disturbed, the AF Sensor Position adjustment is necessary. See
the Mechanical Adjustments section.
1. Unsolder the comb connector with the main flex.
2. Remove the filter coil leads from the MIF unit (Fig. 3-20).
AF Unit
Fig. 3-20 Main Flex (Lower)
3-15
MIF Contact Pattern
