Part 3: Repair Information
I NOTE
Iii
:
Charge
Gear
Train
Assembly
and
Disassembly
•
During
disassembly,
take
care
to
not
bend
the
phase
switch
contacts
on
the
cam
gear.
•
During
reassembly,
insure
that
the
springs
are
installed
correctly.

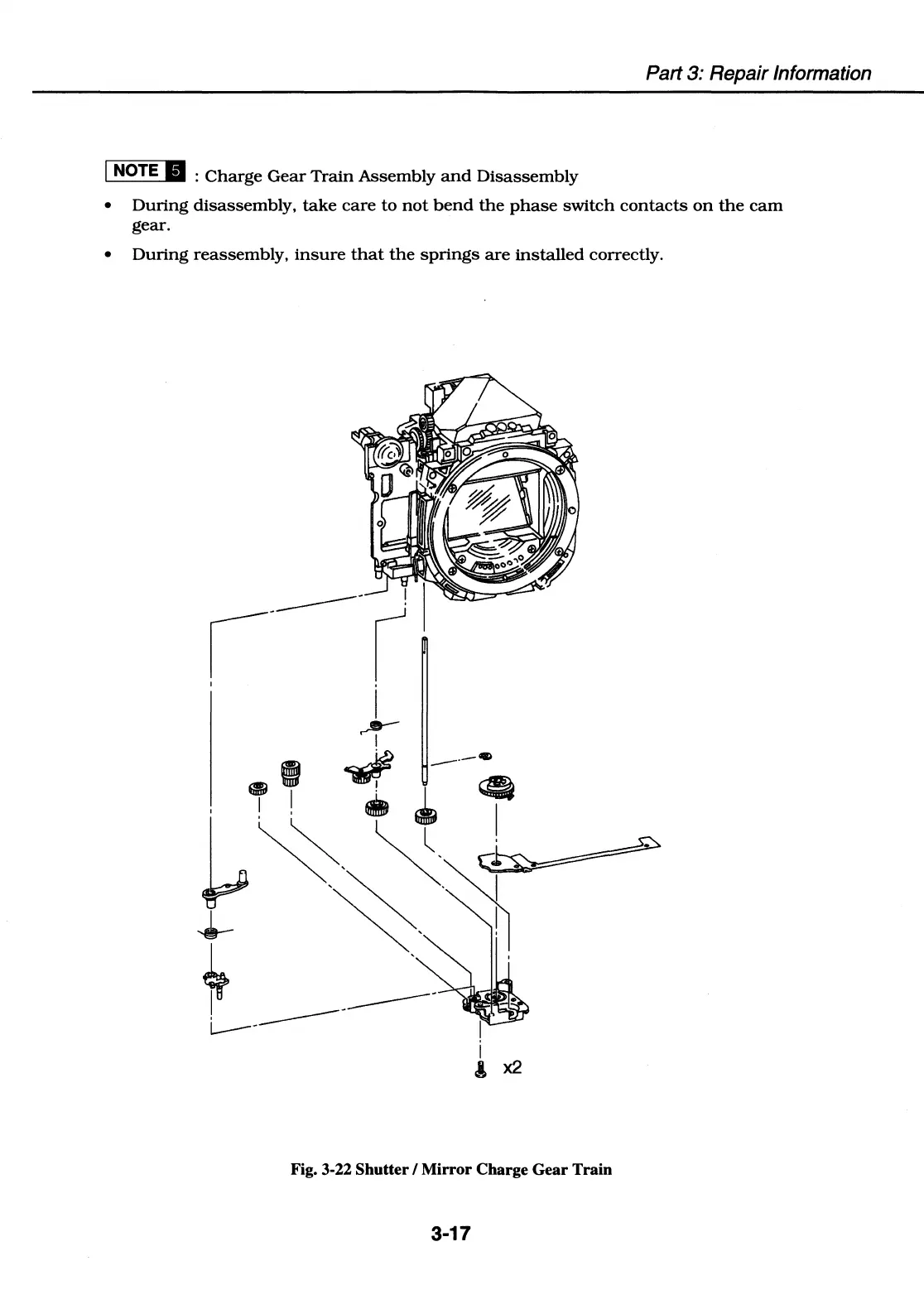

Fig. 3-22
Shutter/
Mirror Charge Gear Train
3-17
