4.5 X TIME LAG CHECK
TOOL:
EF-8000
Shutter speed: 1/125
Line A: 0.285ms or more
Line B: 1. 70ms or more
Al>JusTMENT:
1) Set a shutter flash speed of 1/ 125 in the 1V mode or manual mode.
2) Mount a compatible flash or a hot shoe unit (CG9-3194-000) with a 4.7K ohm
resistor from the CCC terminal to ground.
3) Test with EF-8000 in DELAY mode, and checks lines A and B.
0
To EF8000
To Acc. Shoe tool

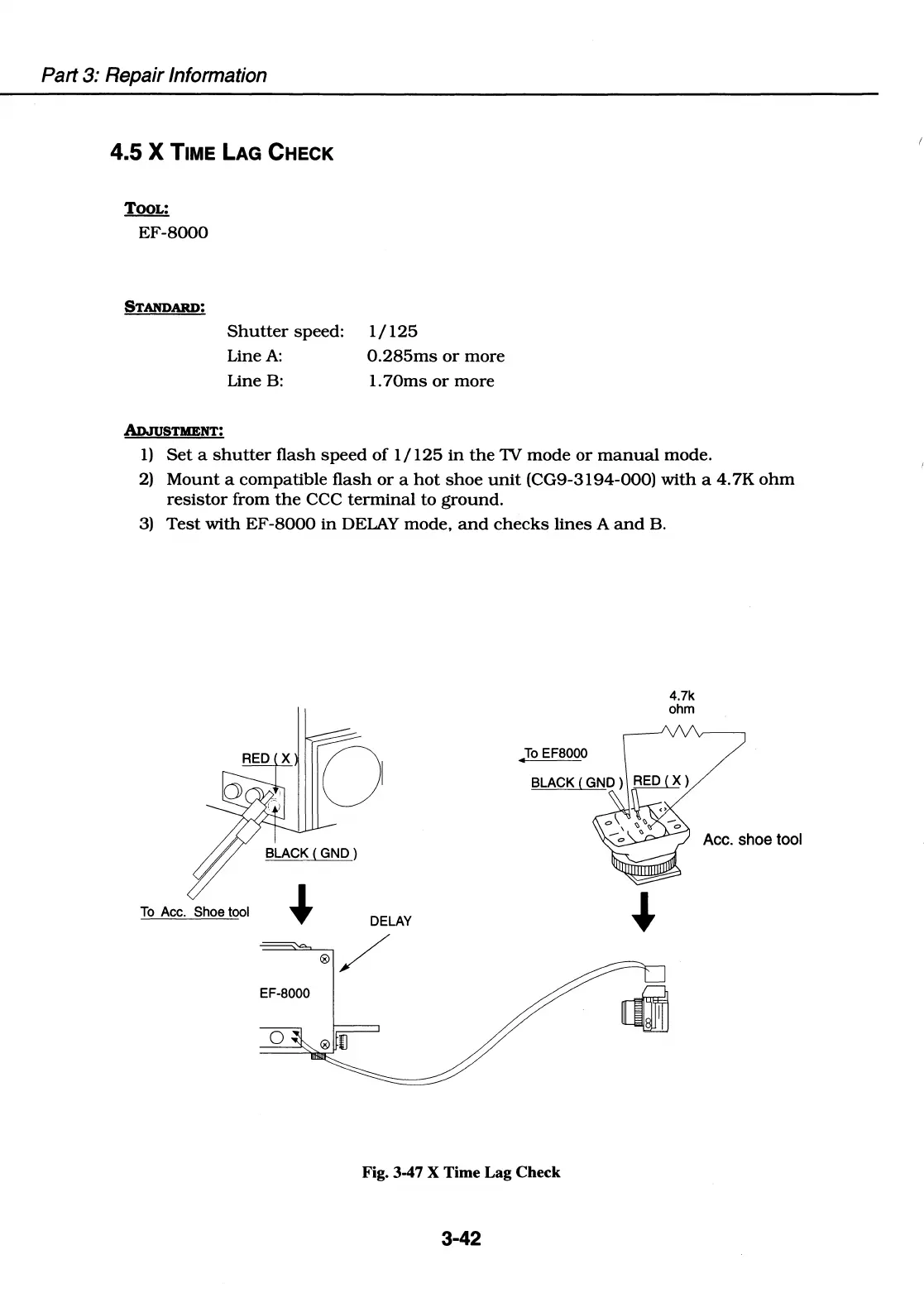

Fig. 3-47 X Time Lag Check
3-42
4.7k
ohm
Acc. shoe tool
