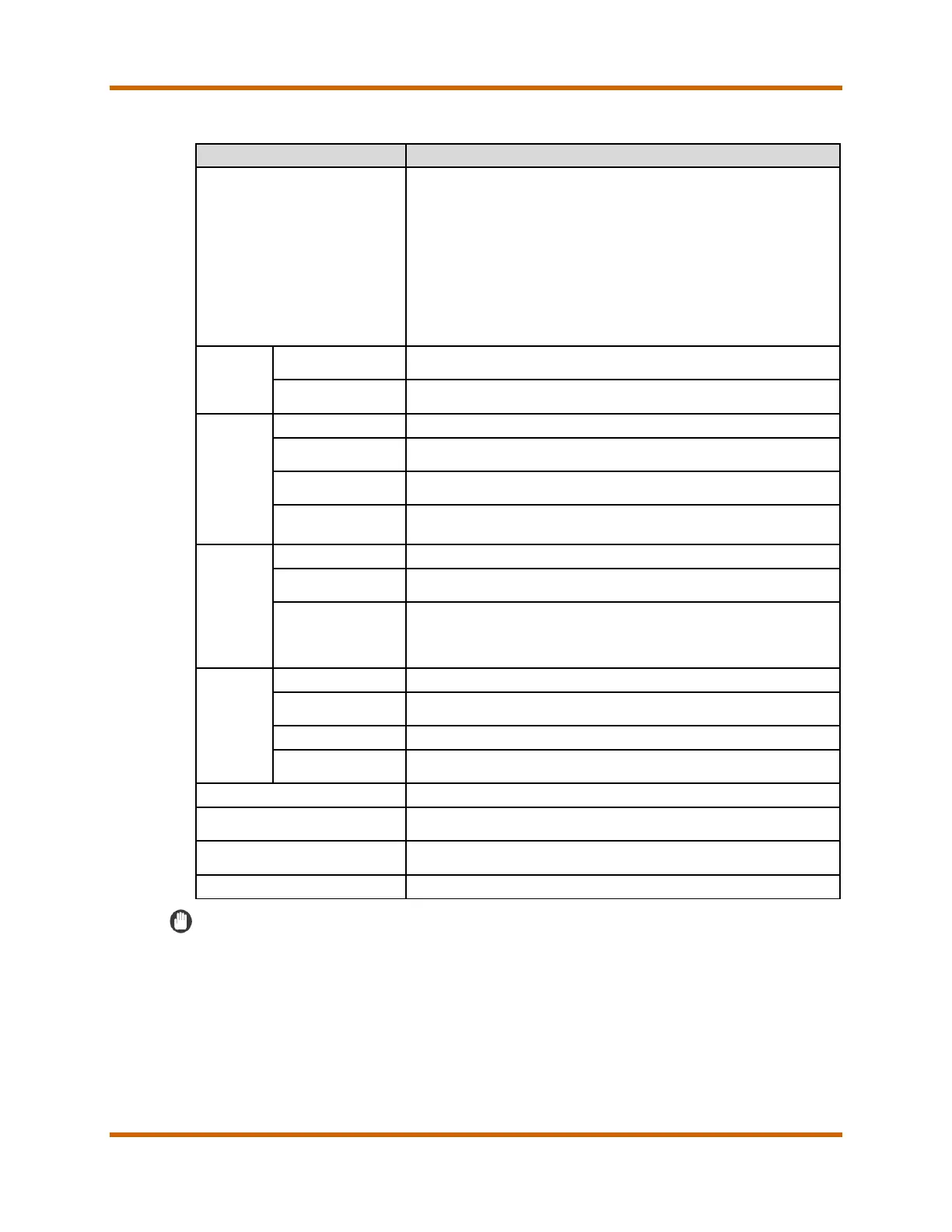

Table 69 – Multi Function Professional Puncher-B1 Specifications
Item Specification
Die Sets (optional)
Loose Leaf 3-Hole Punch (round)
Loose Leaf 5-Hole Punch (round)
Velo Bind 11-Hole Punch (round)
Plastic Comb 19-Hole Punch (rectangle)
Twin Loop 21-Hole Punch (rectangle)
Twin Loop 32-Hole Punch (square)
Color Coil 44-Hole Punch (round)
Color Coil 44-Hole Punch (oval)
High Durability Color Coil 44-Hole Punch (round)
High Durability Loose Leaf 3-Hole Punch (round)
High Durability Plastic Comb 19-Hole Punch (rectangle)
Bypass
Feeding
Paper Size
Maximum: 13" x 30" (330.2 mm x 762 mm)
Minimum: 4” x 5 7/8" (100 mm x 148 mm)
Paper Weight
Plain: 13 lb bond to 130 lb cover (50 g/m
2
to 350 g/m
2
)
Coated: 19 lb bond to 130 lb cover (70 g/m
2
to 350 g/m
2
)
Punch
Paper Size
Letter, Legal, 11”x17”, 12” x18”
Paper Weight
Plain: 20 lb bond to 110 lb cover (75 g/m
2
to 300 g/m
2
)
Coated: 44 lb cover to 110 lb cover (118 g/m
2
to 300 g/m
2
)
Waste Tray
Capacity
Up to 70,000 sheets or more of 80 g/m
2
paper with 4-hole punch
Punch Die Life
Cycle
Standard Die: 750,000 Cycles, High Durability Die: 4,000,000
Cycles (Die life can vary based on paper types and weights used)
Double
Punch
Paper Size
LTRR, 11” x 17”
Paper Weight
20 lb bond to 110 lb cover (75 to 300 g/m
2
) plain paper
31 lb bond to 110 lb cover (118 to 300 g/m
2
) coated paper
Output Tray
Staple Finisher-W1 PRO / Booklet Finisher-W1 PRO:
Upper tray = LTR; all mode and die sets, 11” x 17”; Non sort and
2-7H only
Lower tray = 2-7H/Non sort only
Crease
Paper Size
LTRR, Legal, 11”x17”, 12” x18”, 13” x19”
Paper Weight
Coated/Uncoated Paper: 110 lb Text to 110 lb Cover
(162 g/m
2
to 300 g/m
2
)
Skew
+/- 1.8 mm
Crease Die Life
Cycle
500,000 Cycles
Power Source
120-127 V AC, 60 Hz, 3.8 A
Maximum Power
Consumption
550 W or less
Dimensions (H x W x D)
Approximately 41" x 31 1/4" x 17 1/2"
(1,040 mm x 795 mm x 445 mm)
Weight
Approximately 225 lb (102 kg)
IMPORTANT
• The Service Technician Enables the Double Punch feature on the Multi
Function Professional Puncher console.
• The end-user enables Double Punch mode to double punch every sheet.
Double Punch mode remains enabled for every sheet until disabled by the
end-user.
Note: The Multi Function Professional Puncher-B1 does not support punching
OHP/transparent media.
