Canon imageprograf IPF785 User Manual

Free Layout
Free Layout
The Features of Free Layout ...................................................................................................................................... 182
Starting Free Layout ...................................................................................................................................................... 182
Free Layout Main Window ........................................................................................................................................... 184
Detailed Settings ..............................................................................................................................................................185
Preferences Dialog Box ................................................................................................................................................ 185
Page Options Dialog Box .............................................................................................................................................. 186
Zoom Dialog Box ..............................................................................................................................................................187
Format Dialog Box ...........................................................................................................................................................188
Laying out a Multiple-File Document on One Page ........................................................................................... 189
Laying out a Document Created with Multiple Application Programs on One Page ......................... 191
Selecting an Object .........................................................................................................................................................193
Changing the Object Size ............................................................................................................................................ 194
Moving an Object ............................................................................................................................................................ 194
Rotating an Object .......................................................................................................................................................... 195
Laying out Objects Automatically .............................................................................................................................195
Aligning Objects ............................................................................................................................................................... 195
Changing the Object Overlapping Order ...............................................................................................................197
Pasting a Copied or Cut Object ................................................................................................................................ 198
Folded Duplex Window .................................................................................................................................................. 199
Finished Size Settings Dialog Box ............................................................................................................................ 200
Binding Settings Dialog Box ........................................................................................................................................201
Prints using Folded Duplex ..........................................................................................................................................201
The Features of Free Layout
The Features of Free Layout
The main features of Free Layout are as follows.
• Allows you to lay out at will and print a document created with application software.
• You can not only lay out multiple pages on one page but also lay out and print a multiple-file document on one
page, or lay out and print a document created with multiple application programs on one page.

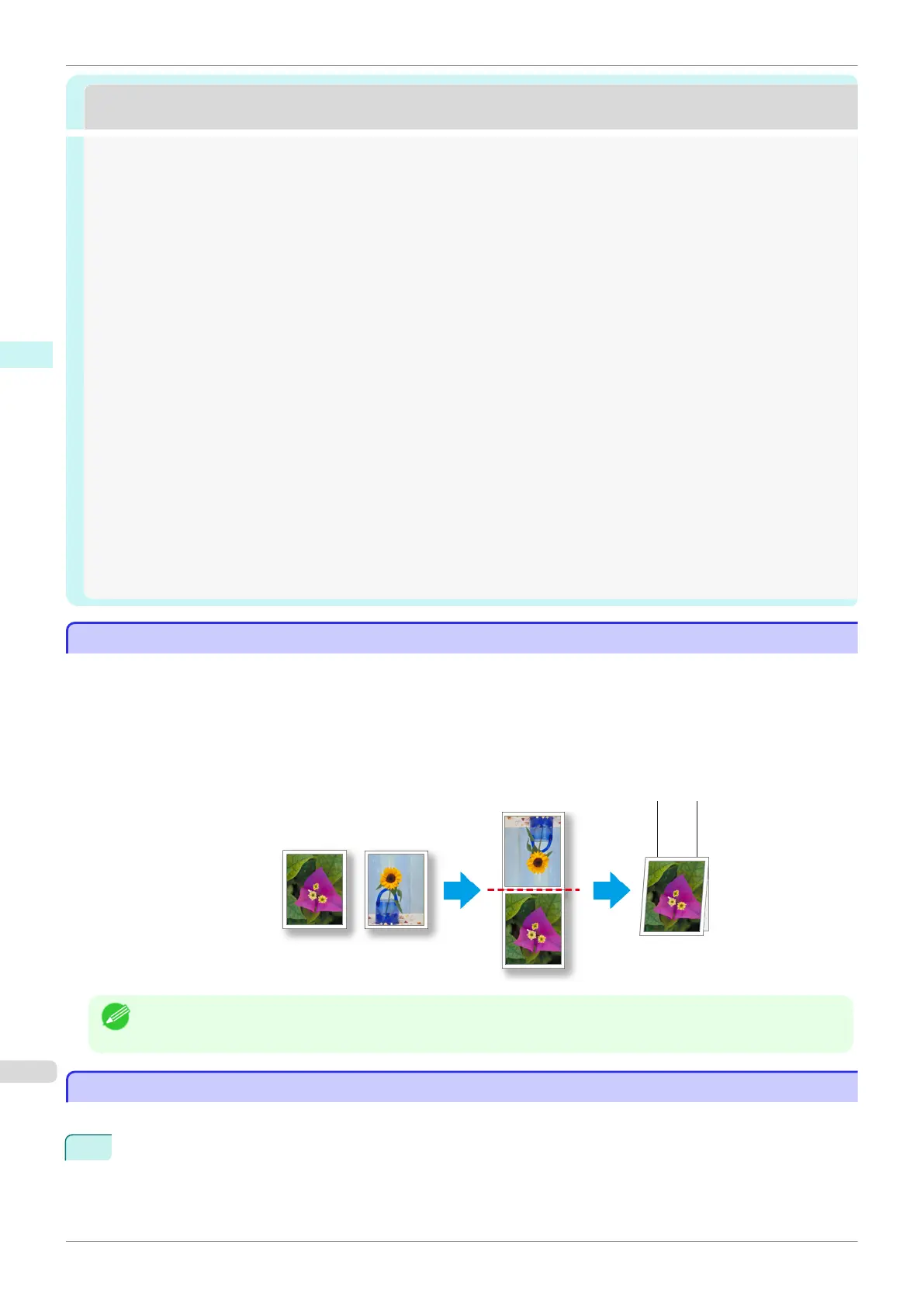

• Any two pages can be arranged and printed in a layout that becomes duplex on folding.
This can be used such as for advertising posters that are suspended from the ceiling.
Note
• The media type, image size, detailed media settings, and the printer settings can cause the actual print output to
differ from the Free Layout settings.
Starting Free Layout
Starting Free Layout
Follow the procedure below to start the Free Layout.
1 Start the apllication software which you use.
The Features of Free Layout
iPF785
User's Guide
Windows Software Free Layout
182
