Canon imageprograf IPF785 User Manual

Printer parts
Printer parts
Front ......................................................................................................................................................................................434
Side ........................................................................................................................................................................................ 435
Top Cover (Inside) ........................................................................................................................................................... 436
Roll Cover (Inside) ........................................................................................................................................................... 437
Carriage ............................................................................................................................................................................... 437
Ink Tank Cover (Inside) .................................................................................................................................................. 438
Stand ..................................................................................................................................................................................... 439
Control Panel ..................................................................................................................................................................... 398

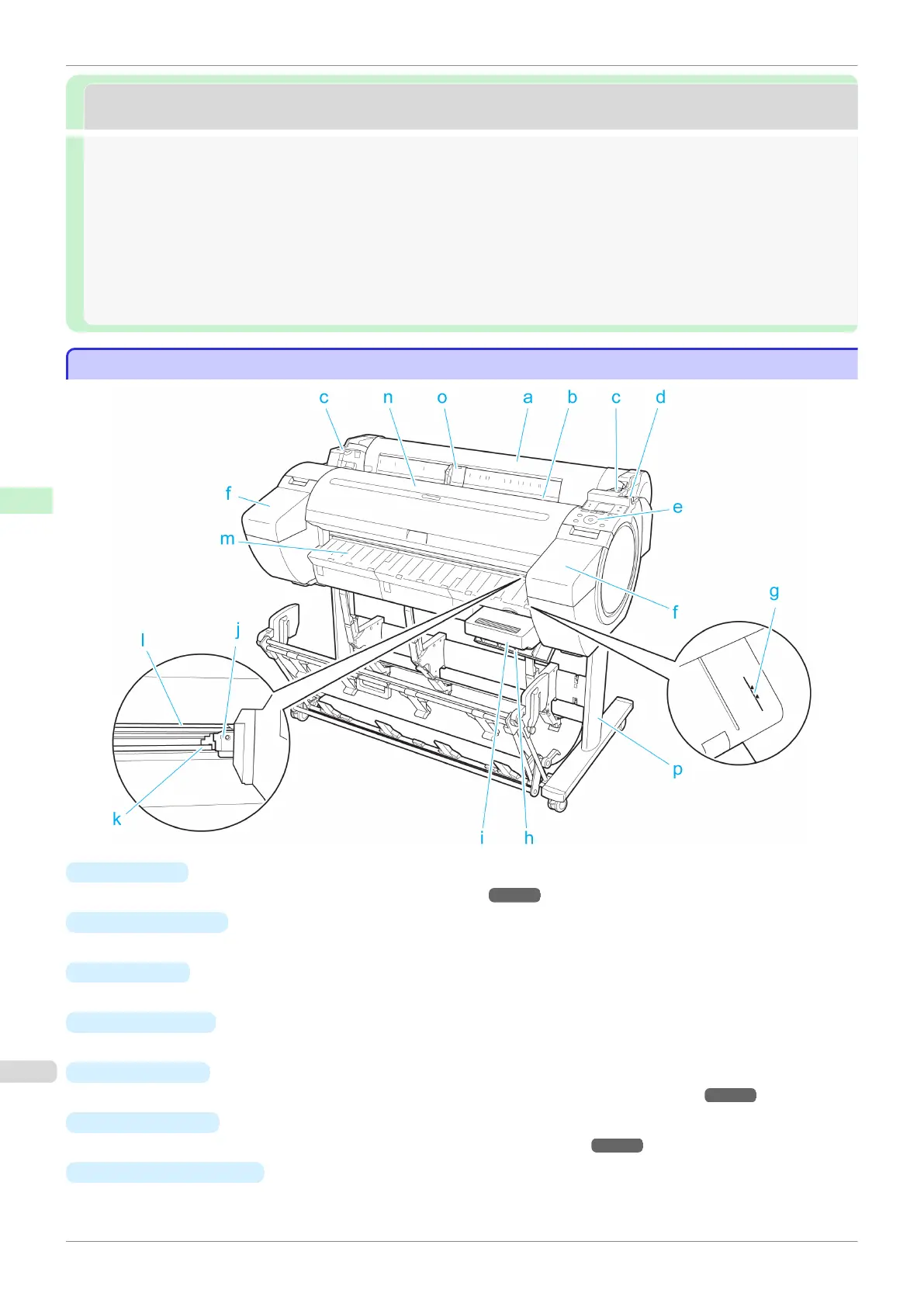

Front
Front
a Roll Cover
Open this cover to load rolls.
(See "Roll Cover (Inside).") ➔ P.437
b Paper Feed Slot
When loading paper, insert it here.
c
Roll Ledge
When loading rolls, rest the Roll Holder here before loading it in the Roll Holder Slot.
d Release Lever
When releasing the Paper Retainer, push this lever back.
e Control Panel
Use this panel to operate the printer and check the printer status. (See "Control Panel.") ➔ P.398
f Ink Tank Cover
Open this cover to replace an Ink Tank. (See "Ink Tank Cover (Inside).") ➔ P.438
g Paper Alignment Line
An orange line for alignment of paper.
Front
iPF785
User's Guide
Printer Parts Printer parts
434

Canon imageprograf IPF785 Specifications

General

Color	Yes
Printing colors	Black, Cyan, Magenta, Matte black, Yellow
Print technology	Inkjet
Maximum resolution	2400 x 1200 DPI
Page description languages	GARO, HP-GL/2, HP-RTL
Media thickness	0.07 - 0.8 mm
Maximum print size	-
Media width (rolls)	254 - 914.4 mm
Media width (sheets)	203.2 - 914.4 mm
Maximum roll diameter	150 mm
Paper tray media types	Coated paper, Cut sheet, Pre-Printed, Roll
ISO A-series sizes (A0...A9)	A0, A1, A2, A3
ISO B-series sizes (B0...B9)	B1, B2, B4
USB connector	USB Type-A
USB 2.0 ports quantity	1
Ethernet LAN data rates	10/100/1000 Base-T/TX Mbit/s
Ethernet interface type	Gigabit Ethernet
Certification	RoHS
Product color	Black, Grey
Storage media	HDD
Internal memory	256 MB
Internal storage capacity	320 GB
Sound pressure level (printing)	48 dB
Compliance industry standards	IEEE 802.3ab, IEEE 802.3u, IEEE 802.3
Power consumption (standby)	0.5 W
Power consumption (typical)	140 W
Storage temperature (T-T)	15 - 30 °C
Operating relative humidity (H-H)	20 - 80 %
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth	877 mm
Width	1304 mm
Height	1062 mm
